In-line switch
NMEA 2000 power cable
NMEA 2000 drop cable from the stereo, up to 6 m (20 ft.)
NMEA 2000 drop cable from the chartplotter MFD or compatible
FUSION NMEA 2000 remote control
9 to 16 Vdc power supply
NMEA 2000 terminator or backbone cable
NMEA 2000 T-connector
NMEA 2000 terminator or backbone cable
Stereo Information
Specifications
Weight 350 g (12.4 oz.)
Water rating IEC 60529 IPX6 and IPX7 (front of
stereo only, when properly installed)
1
IEC 60529 IPX2 (rear of stereo)
Operating temperature range From 0 to 50°C (from 32 to 122°F)
Storage temperature range From -20 to 70°C (from -4 to 158°F)
Input voltage From 10.8 to 16 Vdc
Current (max.) 15 A
Current (muted) Less than 400 mA
Current (off, standby mode
enabled)
Less than 80 mA
Current (off, standby mode
disabled)
Less than 15 mA
Fuse 15 A mini-blade type
NMEA 2000 LEN @ 9 Vdc 1 (50 mA)
Bluetooth
®
wireless range Up to 10 m (30 ft.)
ANT
®
wireless range Up to 3 m (10 ft.)
Wireless frequencies/
protocols
Bluetooth 2.4 GHz @ 12 dBm nominal
ANT 2.4 GHz @ 7 dBm nominal
Compass-safe distance 15 cm (5.9 in.)
On-board, Class D amplifier
Output music power per channel 4 x 50 W max. 4 Ohm
Total output peak power 200 W max.
Output power per channel 4 x 26 W RMS at 14.4 Vdc input,
4 Ohm, 10% THD
2
Line output level (max.) 5.5 V (peak to peak)
Aux input level (typical) 1 V RMS
Tuner frequencies
Tuner Europe and
Australasia
USA Japan
FM radio
frequency range
87.5 to 108 MHz 87.5 to
107.9 MHz
76 to 95 MHz
FM frequency
step
50 kHz 200 kHz 50 kHz
AM radio
frequency range
522 to 1620 kHz 530 to
1710 kHz
522 to
1620 kHz
AM frequency
step
9 kHz 10 kHz 9 kHz

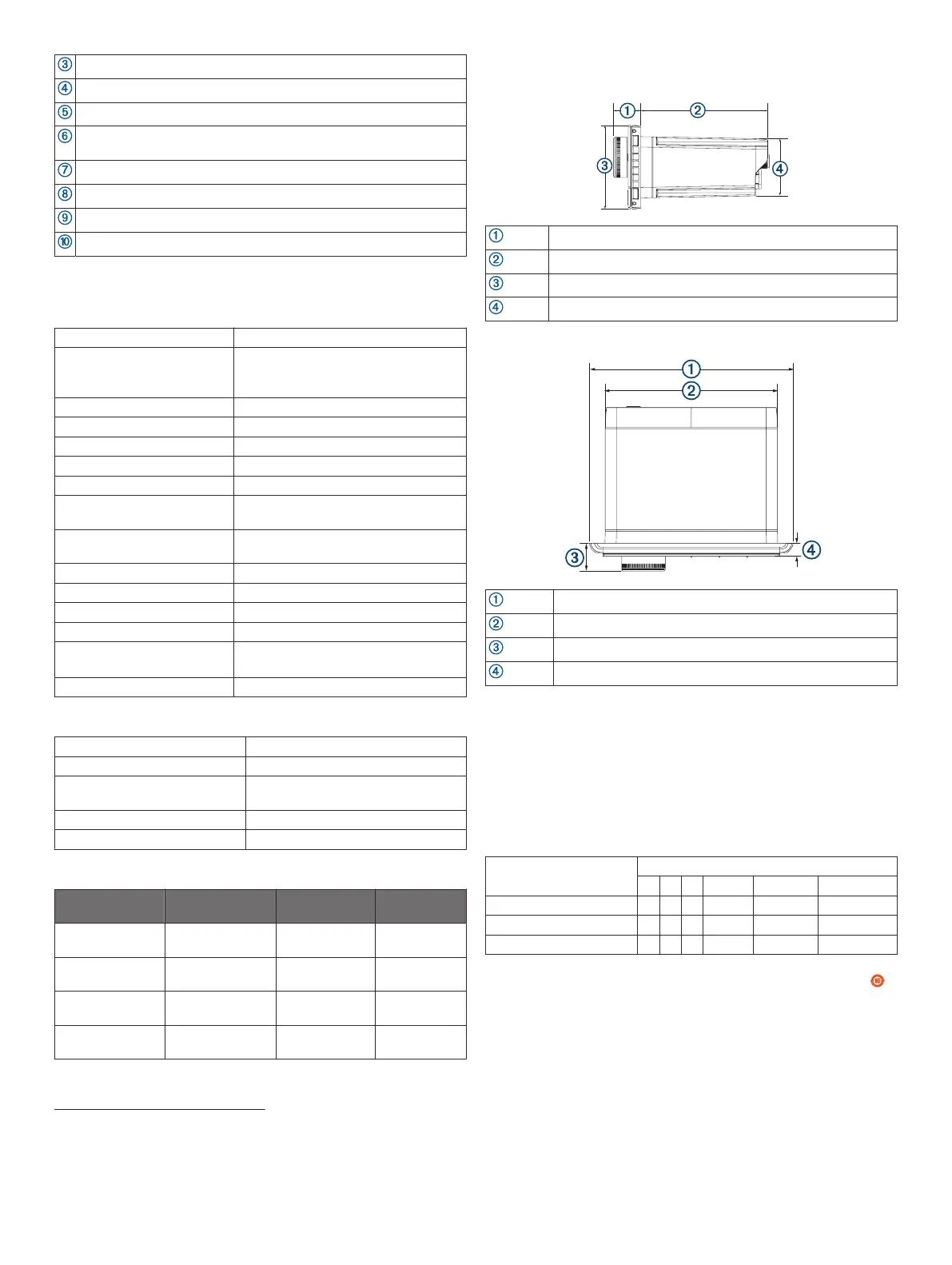

Stereo Dimension Drawings
Side Dimensions
22 mm (0.87 in.)
104.6 mm (4.12 in.)
68 mm (2.68 in.)
49.8 mm (1.96 in.)
Top Dimensions
157 mm (6.18 in.)
130 mm (5.10 in.)
22 mm (0.87 in.)
10 mm (0.39 in.)
Software Updates
For best results, you should update the software in all FUSION
devices at the time of installation to ensure compatibility.
You can update the software using a USB flash drive. For
software updates and instructions on updating the device using
the USB flash drive, go to the device product page at
www.fusionentertainment.com/marine.
物質宣言
部件名称 有毒有害物质或元素
铅 汞 镉 六价铬 多溴联苯 多溴二苯醚
印刷电路板组件 X O O O O O
金属零件 X O O O O O
电缆 电缆组件 连接器 X O O O O O
本表格依据 SJ/T11364 的规定编制。
O: 代表此种部件的所有均质材料中所含的该种有害物质均低于
(GB/T26572) 规定的限量
X: 代表此种部件所用的均质材料中, 至少有一类材料其所含的有害
物质高于
(GB/T26572) 规定的限量
*該產品說明書應提供在環保使用期限和特殊標記的部分詳細講解
產品的擔保使用條件。
產
品
1
When properly installed, the front of the stereo withstands incidental exposure to water of up to 1 m for up to 30 min, and is protected against powerful jets of water. For
more information, go to www.garmin.com/waterrating.
2
The stereo may limit the output power to prevent the amplifier from overheating, and to maintain the audio
dynamics.
© 2019 Garmin Ltd. or its subsidiaries www.fusionentertainment.com
