Fusion NV–SW12 - SERIES AND PARALLEL SUBWOOFER WIRING FOR DUAL VOICE COIL SUBS; Parallel Voice Coil Wiring (1 Ohm operation); Series Voice Coil Wiring (4 Ohm operation)

151515
Parallel Voice Coil Wiring (1 Ohm operation)
To wire a DVC subwoofer in parallel (to get 1 Ohm), use two short pieces of speaker wire and
link the positive from one coil to the positive of the second coil, and do the same for the negative
as shown in fig 1. Then wire the amplifier to opposite sides of the subwoofer in order to equalise
any connection resistance.
Series Voice Coil Wiring (4 Ohm operation)
To wire a DVC subwoofer in series (to get 4 Ohms), use one short piece of speaker wire and link
the positive from one voice coil to the negative of the second coil as shown in fig 2. Then wire
the amplifier to opposite sides of the subwoofer.
SERIES AND PARALLEL SUBWOOFER WIRING FOR
DUAL VOICE COIL SUBS
-

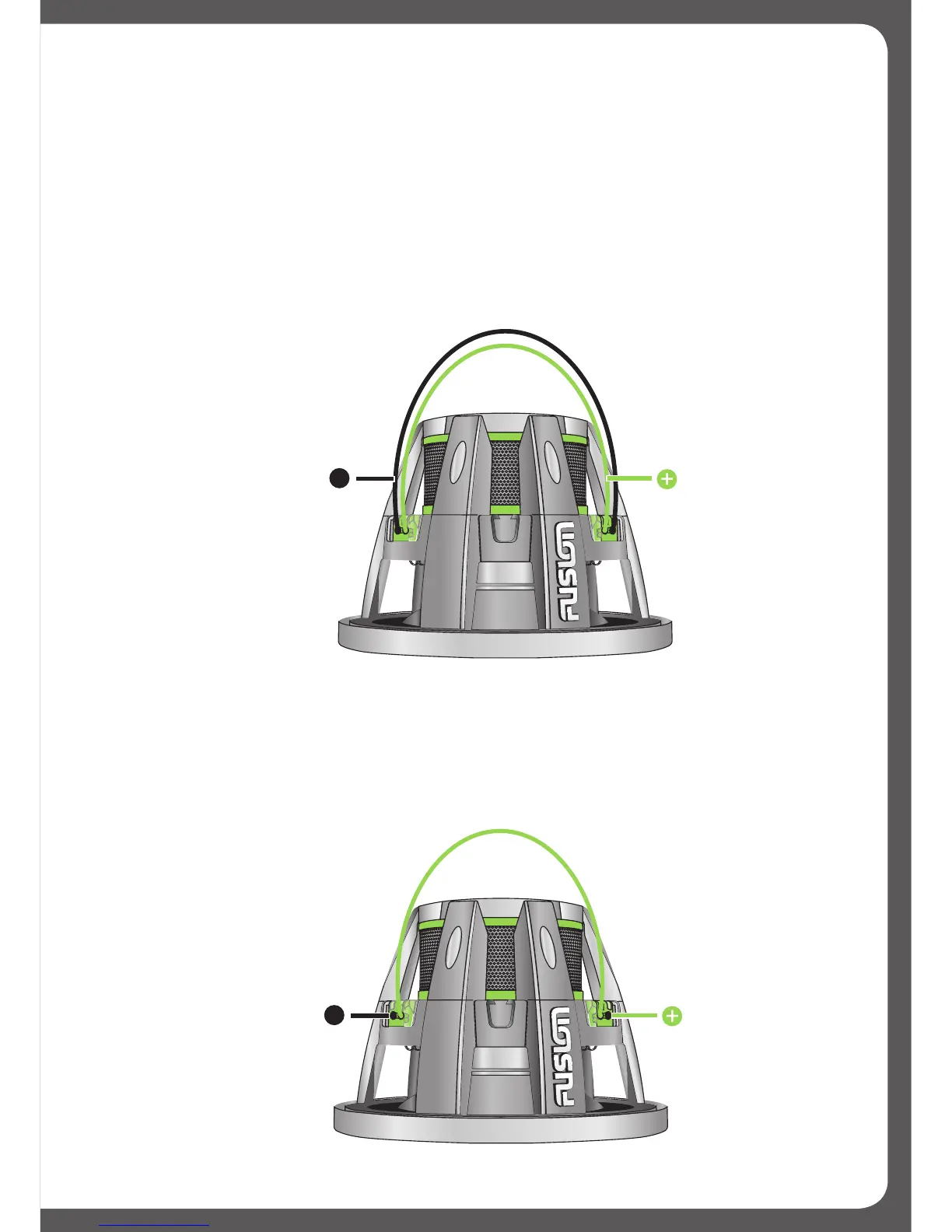

1 Ohm operation
-
4 Ohm operation
Fig.1
Fig. 2
