FUTABA FP-2PB - Conversion to NiCd System FP-2 PBKA Only (Optional); NiCd Battery Charging and Use

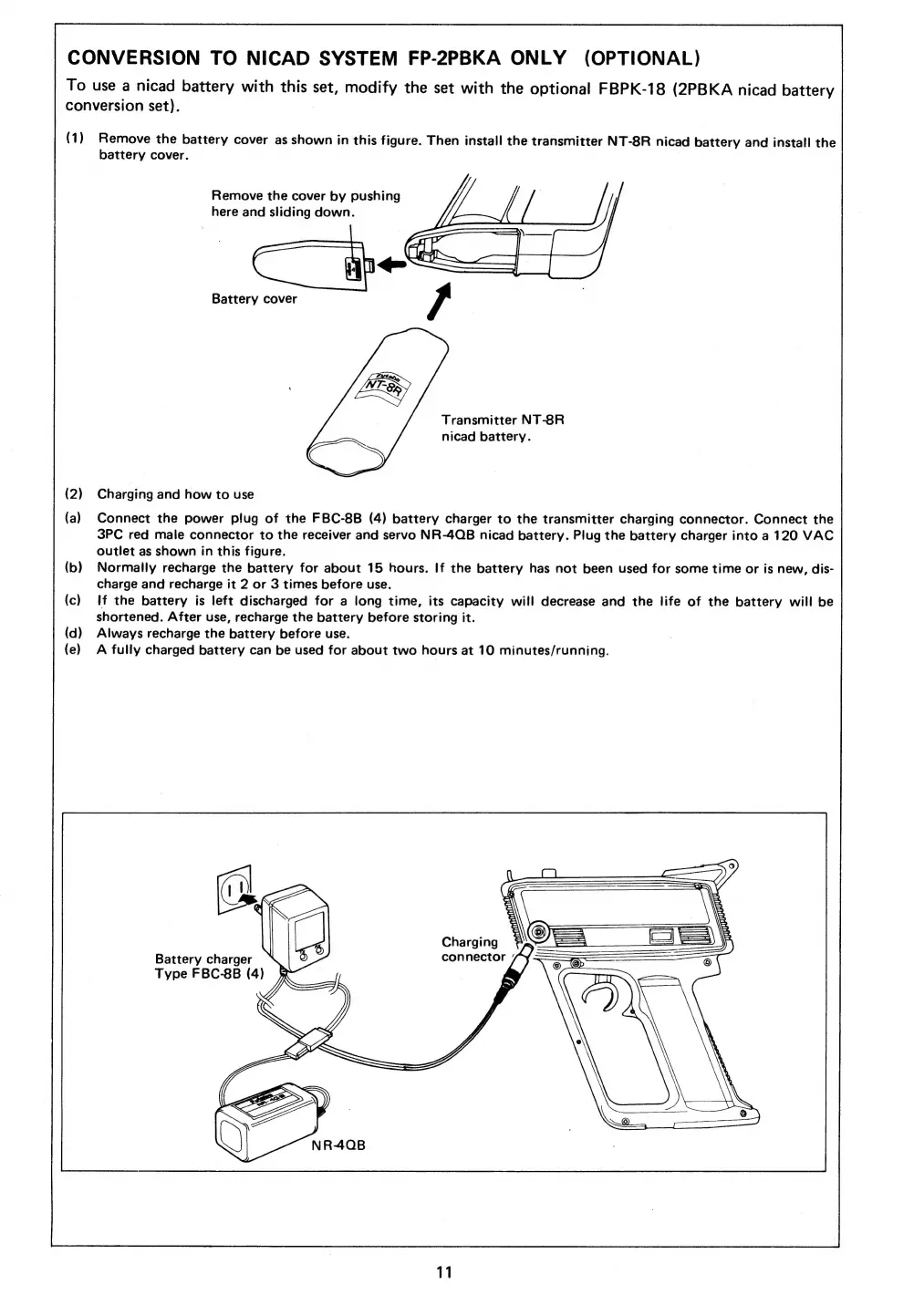

CONVERSION TO NICAD SYSTEM FP-2PBKA ONLY (OPTIONAL)
To
use
a
nicad
battery
with
this
set,
modify
the
set
with
the
optional
FBPK-18
(2PBKA
nicad
battery
conversion
set).
|
(1)
Remove
the
battery
cover
as
shown
in
this
figure.
Then
install
the
transmitter
NT-8R
nicad
battery
and
install
the
battery
cover.
Remove the cover by pushing
here and sliding down.
Battery cover 7
Transmitter NT-8R
nicad battery.
(2) Charging and how to use
(a) Connect the power plug of the FBC-8B (4) battery charger to the transmitter charging connector. Connect the
3PC red male connector to the receiver and servo NR-4QB nicad battery. Plug the battery charger into a 120 VAC
outlet as shown in this figure.
(b) Normally recharge the battery for about 15 hours. If the battery has not been used for some time or is new, dis-
charge and recharge it 2 or 3 times before use.
(c) If the battery is left discharged for a long time, its capacity will decrease and the life of the battery will be
shortened. After use, recharge the battery before storing it.
(d) Always recharge the battery before use.
(e) A fully charged battery can be used for about two hours at 10 minutes/running.
Charging
Battery charger connector /
Type FBC-8B (4)
11
