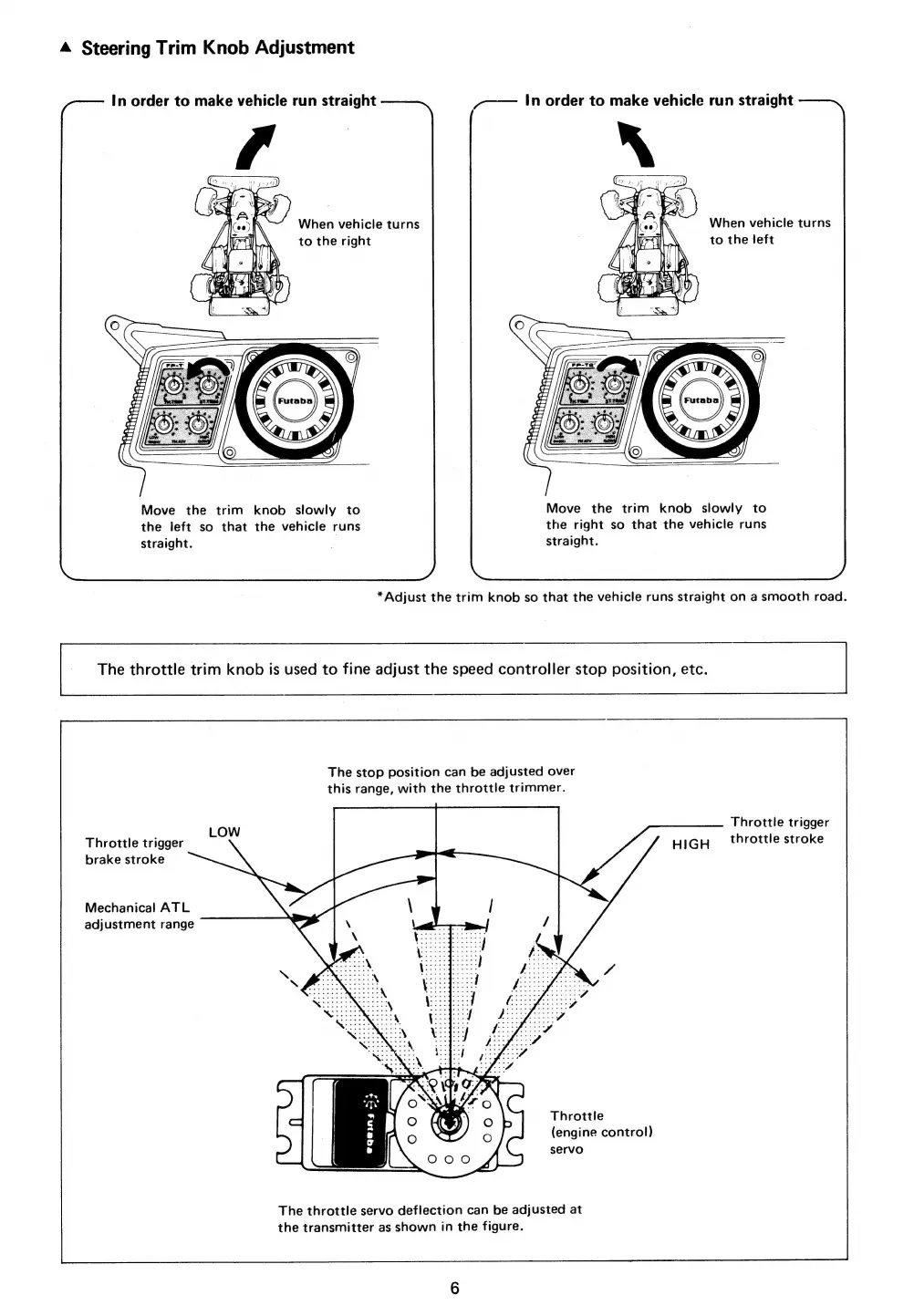

FUTABA FP-2PB - Steering Trim Knob Adjustment

4 Steering Trim Knob Adjustment
In order to make vehicle run straight 7—— In order to make vehicle run straight
When vehicle turns
to the left
When vehicle turns
to the right
RS
RAWY L !
Move the trim knob slowly to
the right so that the vehicle runs
straight.
Move the trim knob slowly to
the left so that the vehicle runs
straight.
* Adjust the trim knob so that the vehicle runs straight on a smooth road.
The throttle trim knob is used to fine adjust the speed controller stop position, etc.
The stop position can be adjusted over
this range, with the throttle trimmer.
Throttle trigger
LOW
Throttle
trigger
HIGH
throttle
stroke
brake stroke
Mechanical ATL at
v-
adjustment range
are Sah sefe. So 2c es
Throttle
(engine control)
servo
The throttle servo deflection can be adjusted at
the transmitter as shown in the figure.
