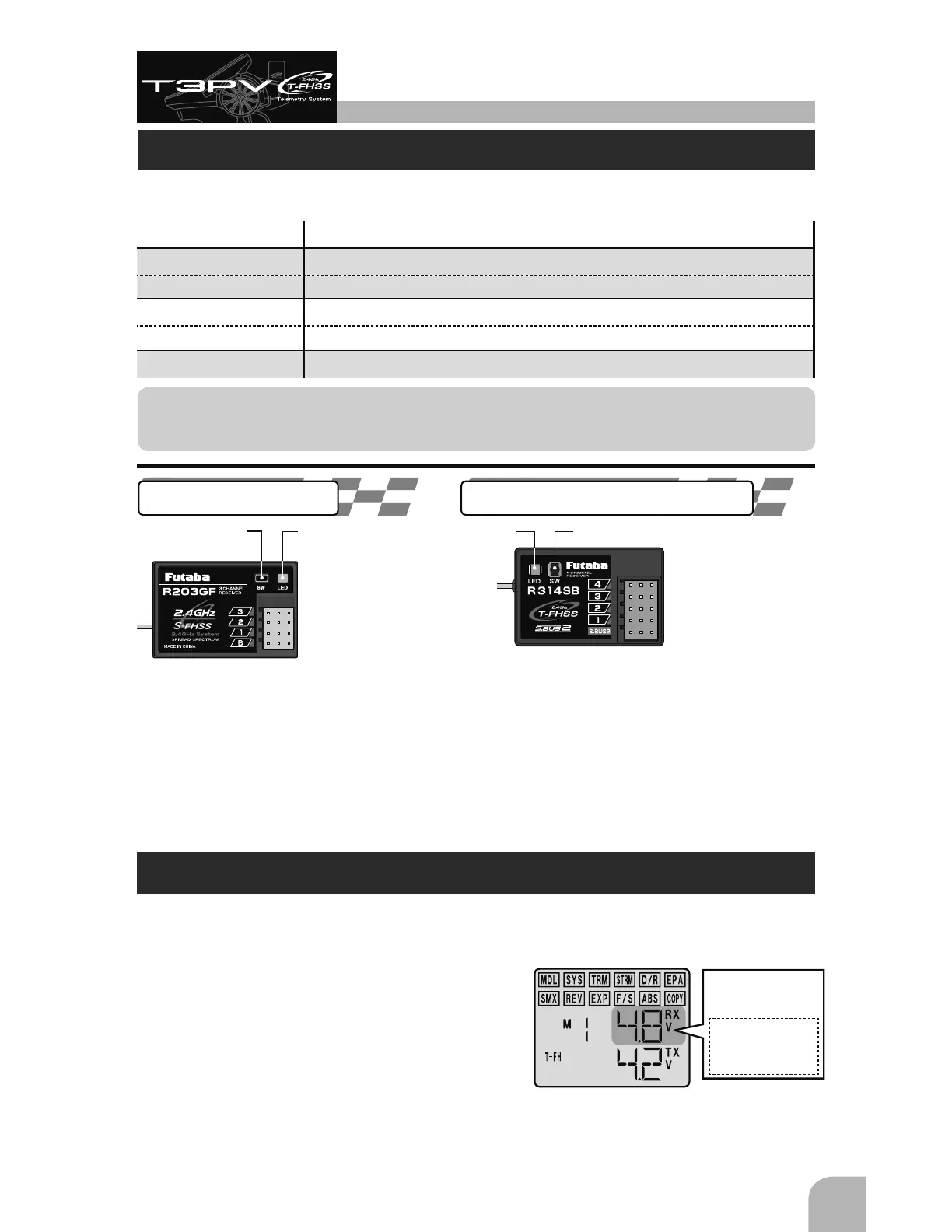

Before Operation
After opening the container, check the contents for the following items. The contents will
vary with the system purchased.
3PV-2.4GHz System Contents
Transmitter T3PV-2.4G (x1)
System T-FHSS/S-FHSS/FHSS
Receiver R203GF or R304SB or R314SB (x1)
System S-FHSS/FHSS T-FHSS T-FHSS
Miscellaneous Mini Screwdriver
NOTE: This Futaba T-FHSS/S-FHSS/FHSS system, including the T3PV-2.4G transmitter,
does not work with current Futaba FASST™ systems. Futaba FASST™ systems
and T-FHSS/S-FHSS/FHSS system are not compatible.
Receiver R203GF
Receiver R314SB(R304SB)
Connectors
"3" : Channel-3 Servo (CH3)
"2" : Throttle Servo (CH2)
"1" : Steering Servo (CH1)
"B": Power connector
Connectors
"4" : Channel-4 Servo (CH4)
"3" : Channel-3 Servo (CH3)
"2" : Throttle Servo (CH2)
"1" : Steering Servo (CH1)
"S.BUS2": SBS-01V/S.BUS2 equipment
Link Switch LED
Link SwitchLED
System Contents
Telemetry System
3-Channel
S-FHSS/FHSS auto
detection system
4-Channel
T-FHSS system
*4WS/BRK Mixing
(SMX) can't be
used in R203GF.
The voltage of the
receiver is shown to
a transmitter.
*Telemetry can't be
used in R203GF.
R314SB/R304SB is T-FHSS, telemetry system can use it.
R203GF is S-FHSS/FHSS, telemetry system can't be used.
■
Default Telemetry System
Receiver voltage display
■
SBS-01V (Voltage sensor ; Option) can be used.
Connect SBS-01V to S.BUS2 port of a receiver.
Wiring connection a EXT line of SBS-01V to
the battery.
*
Indication only of the EXT voltage of the SBS-01V.
*
When connecting SBS-01V, the receiver battery voltage isn't indicated.
*
When indicating the EXT voltage, wiring connection work is needed. Please refer to a manual of SBS-01V.
*
The start slot number of the SBS-01V has to be "6" of a default.
*
T3PV can't use other telemetry sensors.
Receiver
battery voltage
SBS-01V
→
EXT battery
voltage
The receiver power supply can be con-
nected to the S.BUS2 port or any of
CH1-4.
HOME Screen
