ESC
Voltage cable
①
Measure the cable and then cut it to the desired length.
②
Cut approximately 30mm of the black
(－)
line from the cable.
Solder the fuse inline on the black
(－)
wire and then reattach the section of wire
that was previously removed. The fuse should be attached as close to the
external power supply as possible.
③
Place a piece of heat shrink tubing over the fuse, ensuring that it covers the
soldered areas. Shrink the tubing snug to the fuse and the wire using a heat gun.
④
The cable should be connected as shown in the diagram below.
⑤
The manual for the Telemetry system should be referred to after the setup is
complete. Check to make sure it functions as desired and that it provides the
correct data on the display.
The fuse should be attached as close to the
external power supply as possible.
Heat shrink tube
Fuse to Black line (－)
Heat shrink tube
Heat shrink
The connection is affixed to the ESC on the wires
that are connected to the battery by soldering them
and then protecting them with heat shrink.
To Power Battery
SBS-01C on the line.
Fuse（mount in either direction）
Fuse
Solder welding

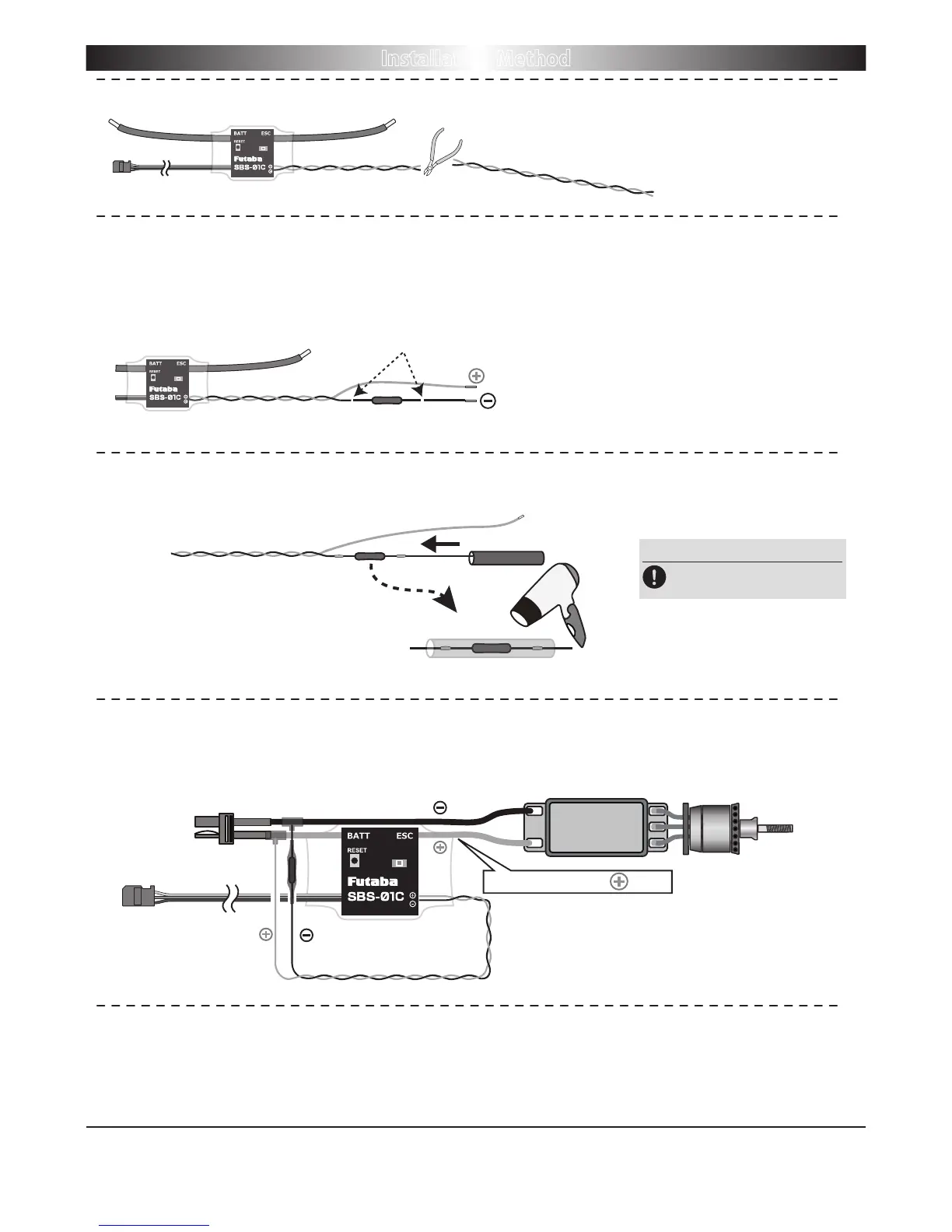

Installation Method
WARNING
Be careful to avoid burns from
high-temperature work.
FUTABA CORPORATION
1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan
Phone: +81 475 32 6982, Facsimile: +81 475 32 6983
©FUTABA CORPORATION 2016, 5 (1)
