INSTALLATION AND ADJUSTMENT
This section describes the installation method and adjustment method after installa-
tion when installing the receiver, servos, etc. to the plane.
Connections

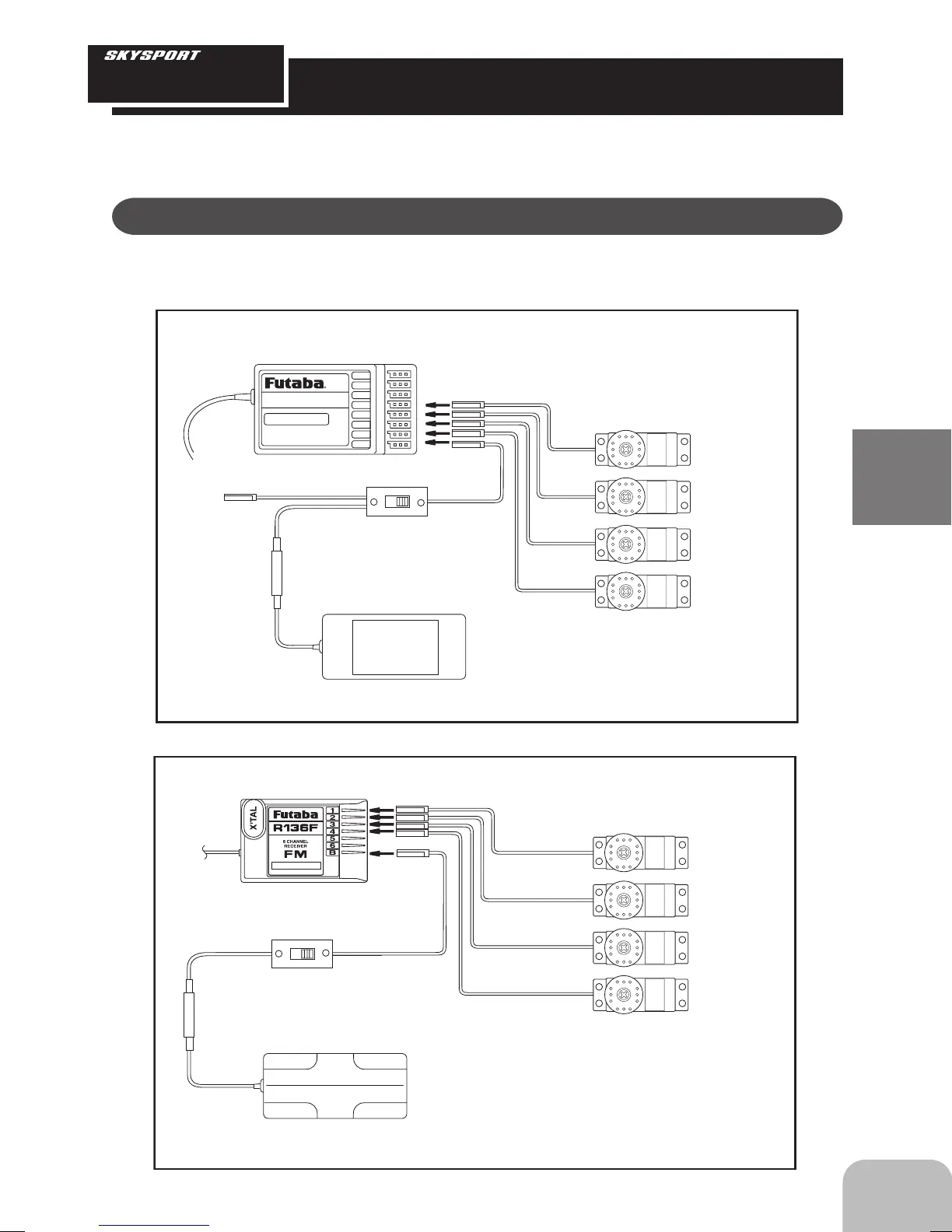

Connection example is shown below.
INSTALLATION AND ADJUSTMENT
Receiver switch
Connection Example
Receiver R127DF
Aileron
(CH1)
Elevator
(CH2)
Throttle
(CH3)
Rudder
(CH4)
Nicd battery
*The number of servos depends
on the set.
7
6
5
4
3
2
1
B
Dual Conversion
FP-R127DF
FM
7CHANNEL
RECIVER
Connection Example
Receiver
R136F
Aileron
(CH1)
Elevator
(CH2)
Throttle
(CH3)
Rudder
(CH4)
Receiver switch
Receiver battery holder
*Insert four batteries.
*When using 5 or more servos,
use the nicd battery sold separately.
*The number of servos depends
on the set.
