DISTY40 / DISTY80
9
90°
1
2
L1
L2
H
90°
1
2
3
L1
L2
L3
H
MANUAL

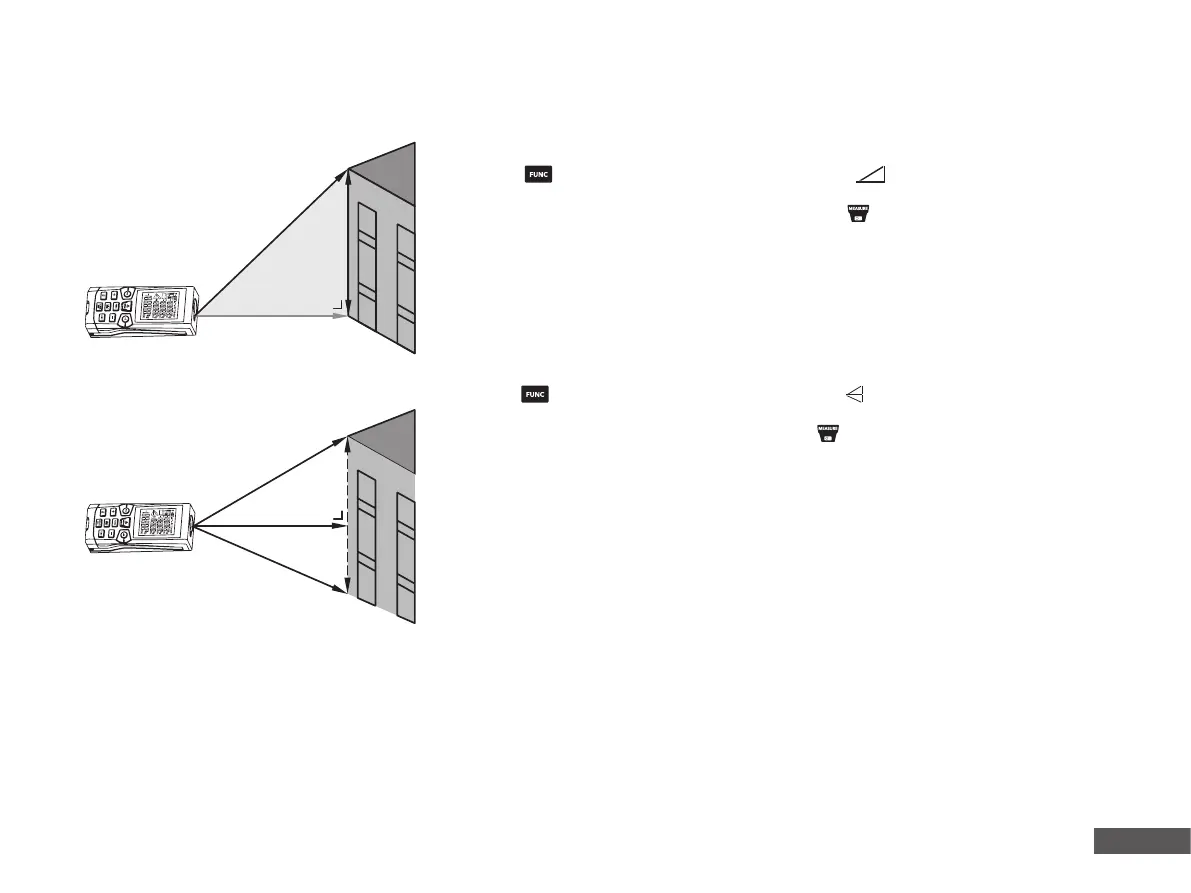

• Indirect measurement - (single pythagoras)
Press the -button once, the display shows the -symbol. The laser is switched
upper point and trigger the measurement using . Then carry out the second ho-
rizontal measurement. After the measurement, the results are shown on the display.
The measured distance (slope) is shownon the top line, the measured horizontal sode
on the second link. The calculated height on the third line.
Keep in mind that the lenght ofthe horizontal line is only 100% correct when a precise
vertical measurement is performed.
• Double indirect measurement - (double pythagoras)
Press the -button twice; the display shows the -symbol. The laser is switched on.
-
per point and trigger the measurement using . Then perform the second (90°) and
third measurement. The results are now shown on the screen (from top to bottom)
distance to upper point
distance from the measured horizontal point
distance to lower point
distance between upper and lower point (height)
