5) Left Auto/Manual button -
8) Right Auto/Manual button - These buttons switch the EG Series system between automatic and
manual control modes. The right switch controls both the left and right sides together and the left
switch controls just the left. This conguration allows a method of controlling both sides together as
well as individually.
Page 3
6.
7.
1.
2.
3.
4.
5.
10.
8.
9.
11.
12.
13.

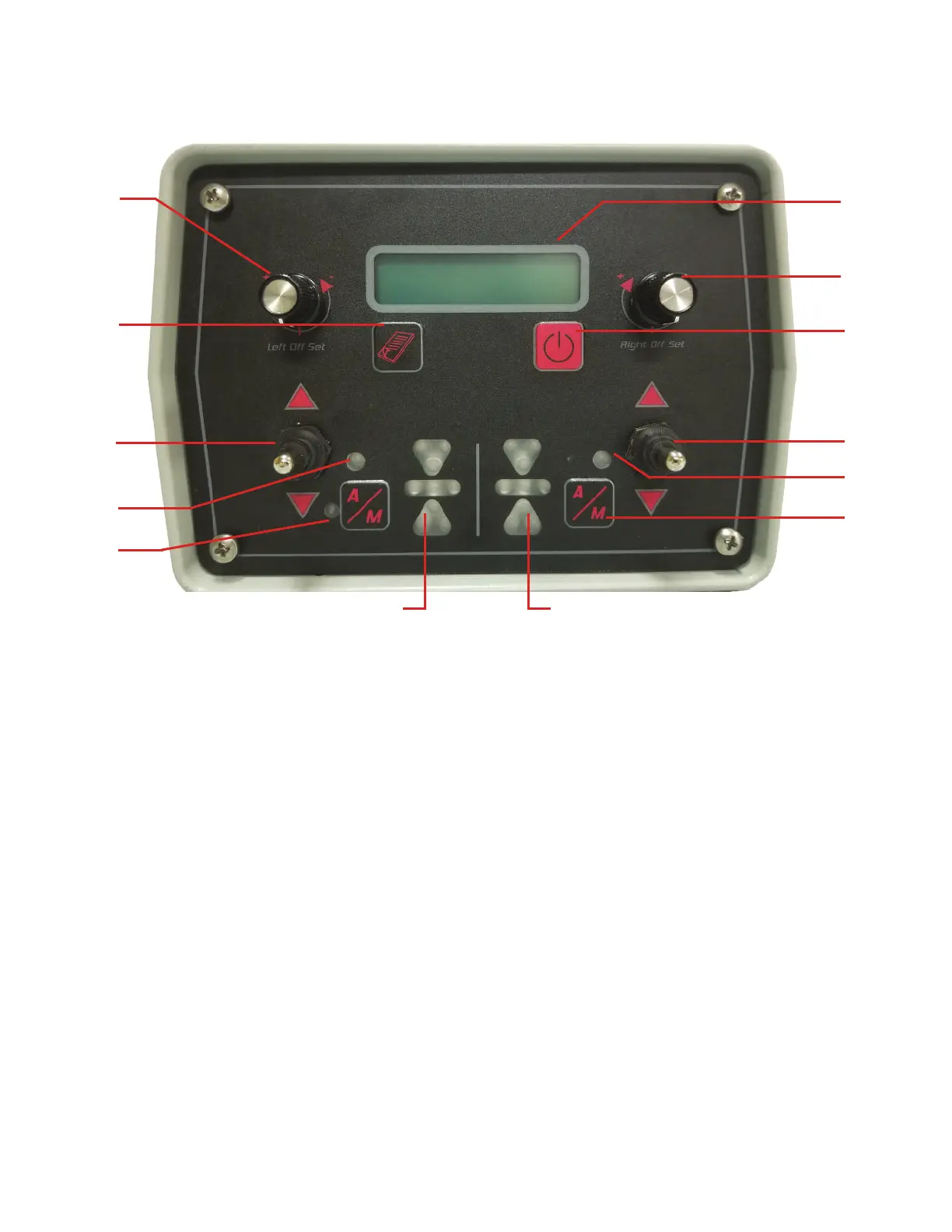

EG Series Control Box
Controls
(fig 1)
2) Menu Button - These keys are used to step through the menus to setup all of the controls in the
system. The menu ow can only cycle through in one direction, if you go past a menu step it can’t
go back. Pressing either of the A/M keys is a shortcut back to the main screen, a quick way to start
over.
1) Left On-grade Offset -
12) Right On-grade Offset - These knobs control the offset of the on-grade of each receiver. They
allow the operator to move the on-grade position of each receiver up or down by 54mm (2.13 inches)
3
) Left Valve Raise/Lower Switch -
10
) Right Valve Raise/Lower Switch - These switches are used for manual control and allow the op-
erator to raise and lower each hydraulic circuit on the machine. These switches also act as a control
in the menu and are used to change parameters in the menu display.
4) Auto/Manual Indicator -
9) Auto/Manual Indicator - These indicators display when the system is in the automatic mode, if
the light is on, the systems control is active.
