Futura EG2 User Manual

4. Power Cable Connector - Battery power is routed to the system via this cable connection.
Page 4
6) Left LED Grade Display -
7) Right LED Grade Display - These LED’s display whether you are above grade, below grade or
on grade. The red arrows tell the user which direction the blade must move to achieve grade, while
the single up or down red LED will ash when the receiver is within 10mm (0.39”) of the desired
grade. The green LED’s in the middle will ash when you are within your desired ‘on grade’.
11) Power On/Off switch - Press the power button briey to turn the control box on. The button
must be pushed and held for approximately two seconds to turn the system off. This button is also
used as a soft key providing the function indicated in the display directly above it.

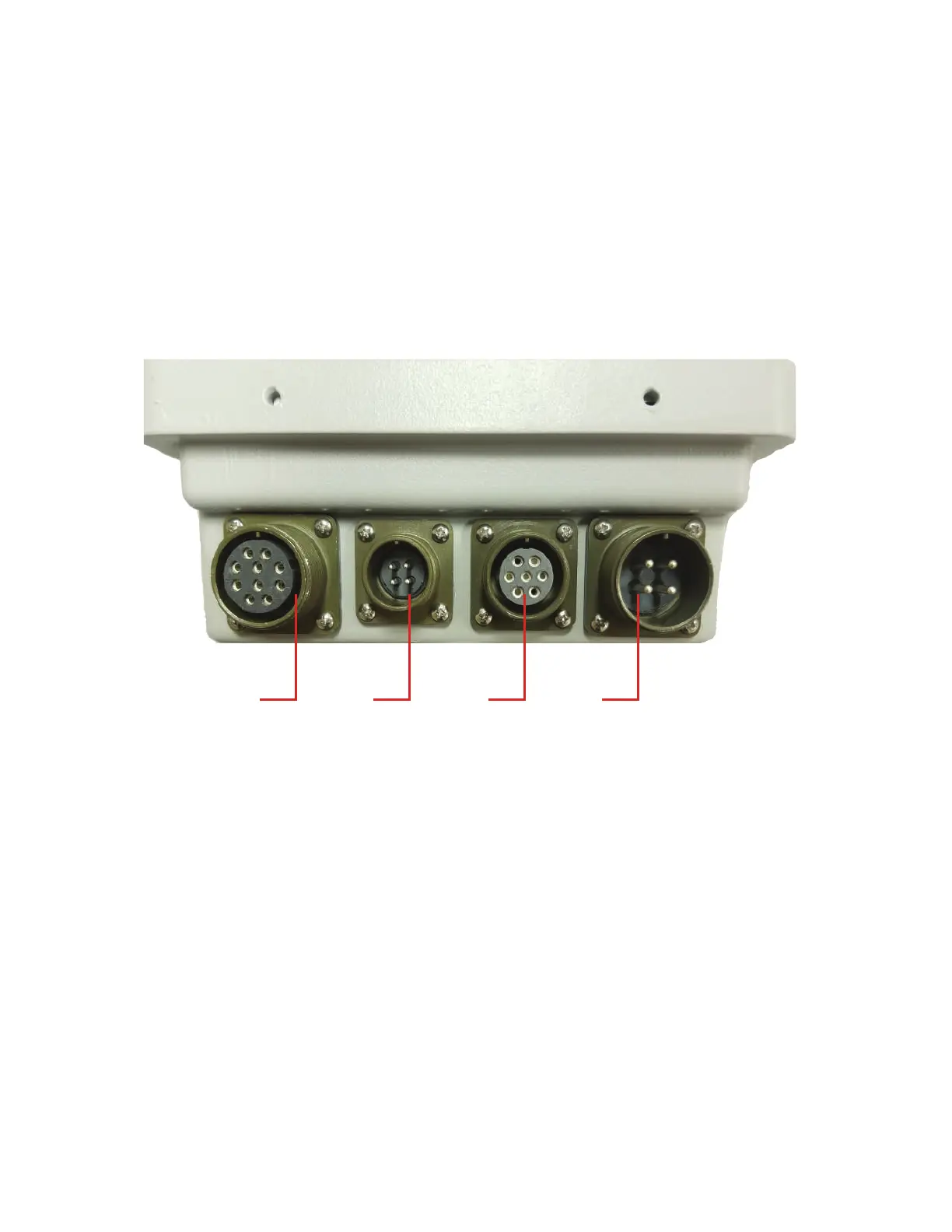

1. Valve Cable Connector - This is where the valve cable is connected to the control box.
2. Remote Switch Connector - The remote auto/raise/lower switch assembly plugs into the control
box via this connector.
3. Communication Connector - Receiver and Sensors plug into the node cable, and their signals
are transferred to the control box via this 4 pin connector.
1. 2. 3. 4.
13) LCD Display - A 2 x 16 dot matrix display for easy visibility in bright and dark environments.

Futura EG2 Specifications

General

Brand	Futura
Model	EG2
Category	Control Systems
Language	English
