Futura EG2 User Manual

Manual
Manual Manual
Manual Manual
20mm -0mm-
4mm 0.5%
10mm 10mm
Page 5
EG Series Control Box

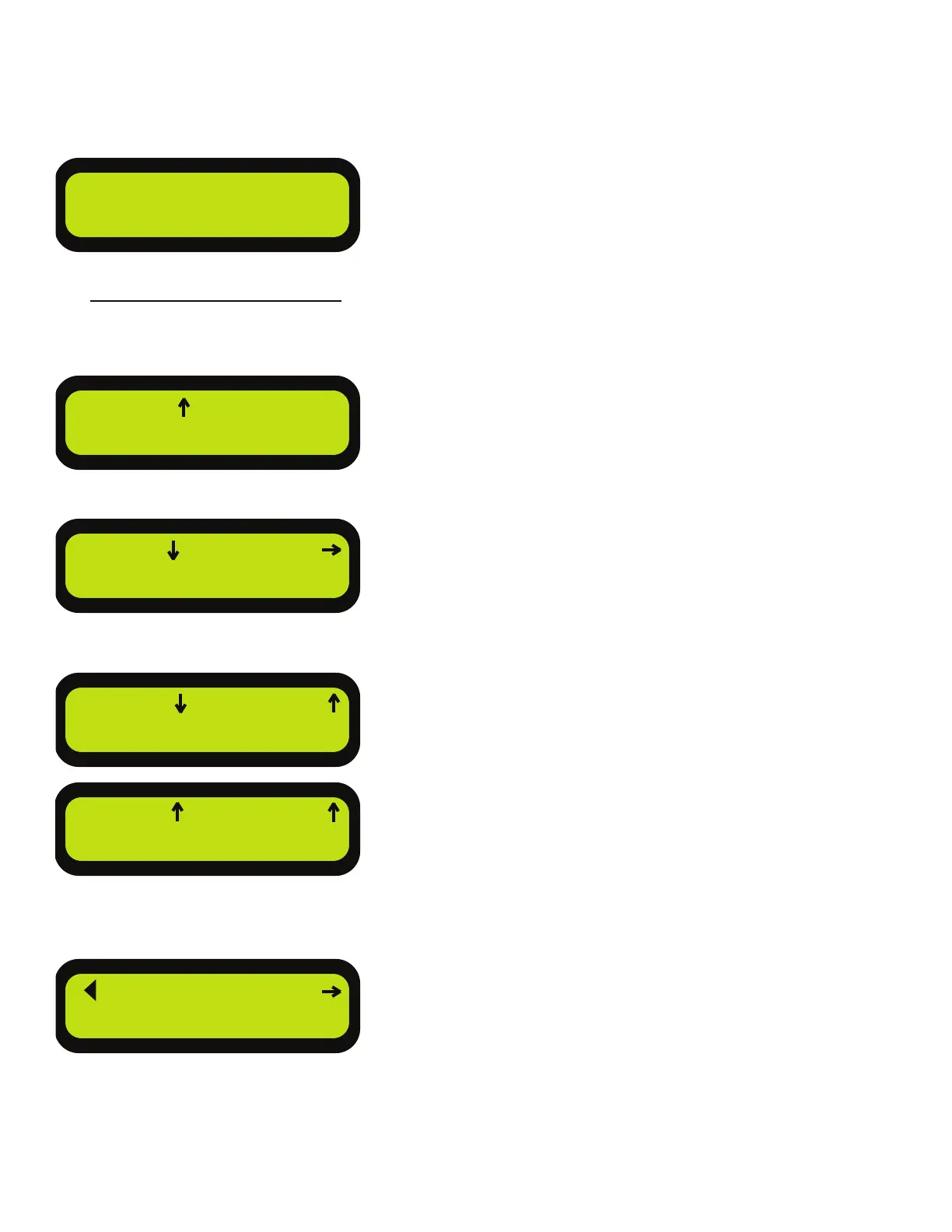

Display Screens and Menus
Main Operating Screens
Single Receiver
Single Receiver with Slope
Dual Receiver
Splash Screen -The EG Series has many menu screens for
setting the system parameters. The rst to show up after pow-
er up is the splash screen displaying system type and version.
The version and version date may change as features and
program modications are implemented.
The Main Control Screen: This is the rst screen displayed
after the 10 second start up routine is complete. The control
screen will look different depending on how the system setup
is congured. The three main congurations are shown here.
Single Receiver Control - The upper left reading is the real
time position of the laser beam on the receiver in metric or
imperial depending on the units conguration. The upper right
is the receiver on-grade offset entered in via the right offset
adjust knob.
Single Receiver with Slope Control - The upper left shows
the receiver on-grade offset, which can be entered by the left
offset adjust knob. The upper right displays the desired slope,
this value is entered by the right offset knob.
Dual Receiver Control - The upper left and right display are
the receiver on-grade offset values. They are adjusted via the
adjustment knobs. The left knob adjusts the left offset and
right knob adjusts the right offset. We can also temporarily
link the left and right offset together. This is accomplished
by pressing the power button once. An X will be displayed
between the two offset values. While the X is present, the
right offset knob will adjust both the left and right offset values
together. The X will disappear 5 seconds after the value has
been entered.
Slope Indicate / Control -
If the system has the slope option and the slope option is
enabled, pressing the menu button once will display the slope
indicate / control screen. Here the real-time slope is in the
upper left side of the display and the direction is shown by a
thick direction arrow. The desired slope is in the upper right
hand side of the display and the direction is shown by a thin
direction arrow. The desired slope is entered via the right off
set knob while this screen is active. The system will remain in
this slope screen until either the return or next key is pressed.
The return key returns you to the main control screen and the
next key will continue to the menu screens.
ver 9 27 Jan 2020
EG-2e Control
Return Next
0.5% 0.5%
Manual Manual
10mm X 10mm
Slope Indicate / Control
