Future Beach WB 202 - Tiller Installation; Attaching Rudder

Water Bee™ Pedal Boat Owner’s Manual and Assembly Guide
C) Tiller Installation

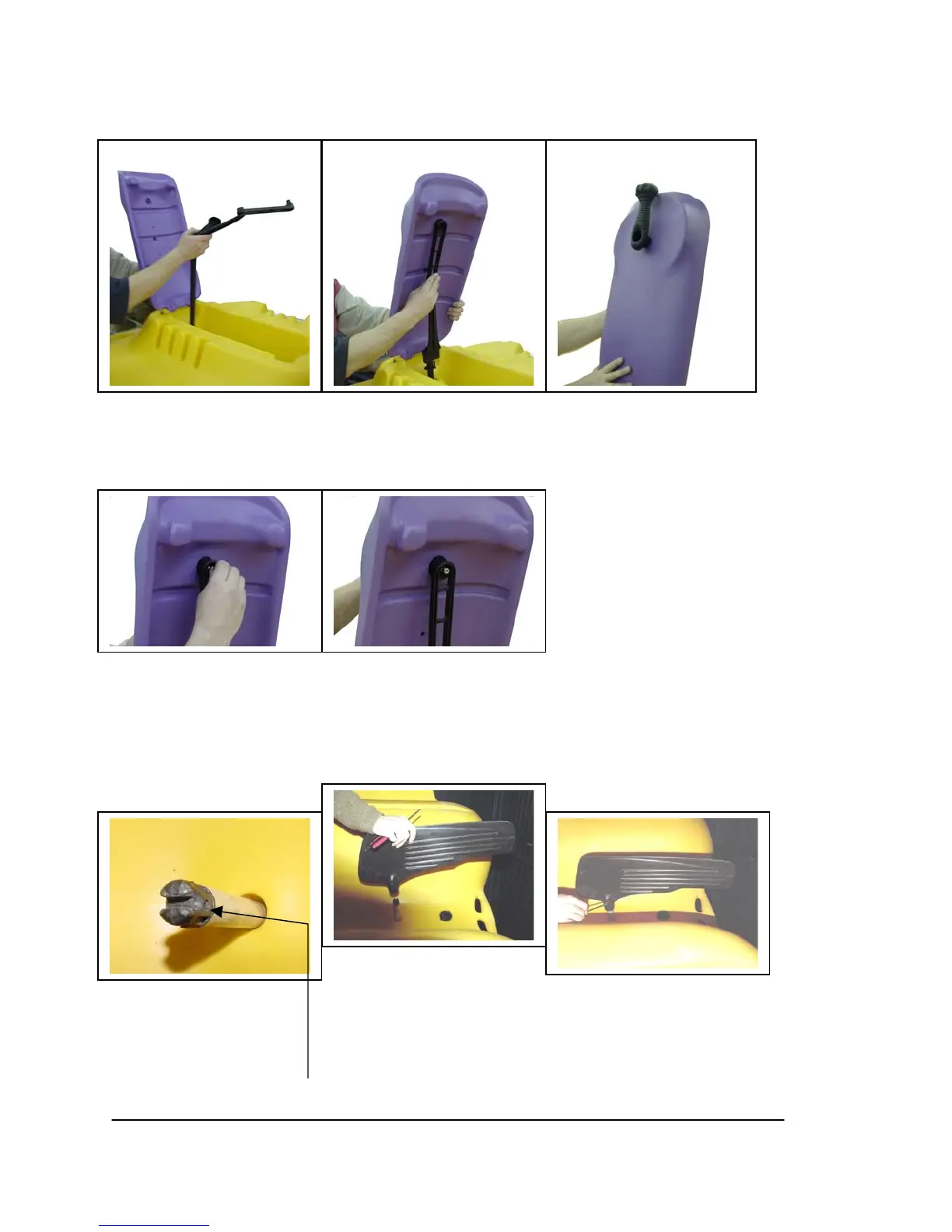

1. Open the hatch at the
rear of the hull by pulling
upwards from the front of
the hatch.
3. Ensuring that tiller
handle faces the front of
the boat, align handle with
screw hole on top of hatch
2. With the storage hatch
raised, align the steering
control arm with the screw
hole as shown above
4. From underneath
storage hatch, place screw
through steering control
arm to the tiller handle on
other side
5. Using your Phillips star
screwdriver, screw the
steering control arm and
tiller handle into place.
6. Turn boat on its side to
access rudder shaft. Lean
boat up against a wall to
p
erform rudder
installation. Locate screw
holes on rudder shaft.
D) Attaching Rudder
7. Ensuring that rudder
direction faces rear of
boat, push rudder firmly
onto rudder shaft. Align
screw holes on rudder
shaft with screw holes on
neck of rudder
8. Using your Phillips
screwdriver, attach rudder
to rudder shaft as shown
above.
