The device has 1 or 2 steam wands that should be opened before being used, to
clean eventual residue of a previous use.

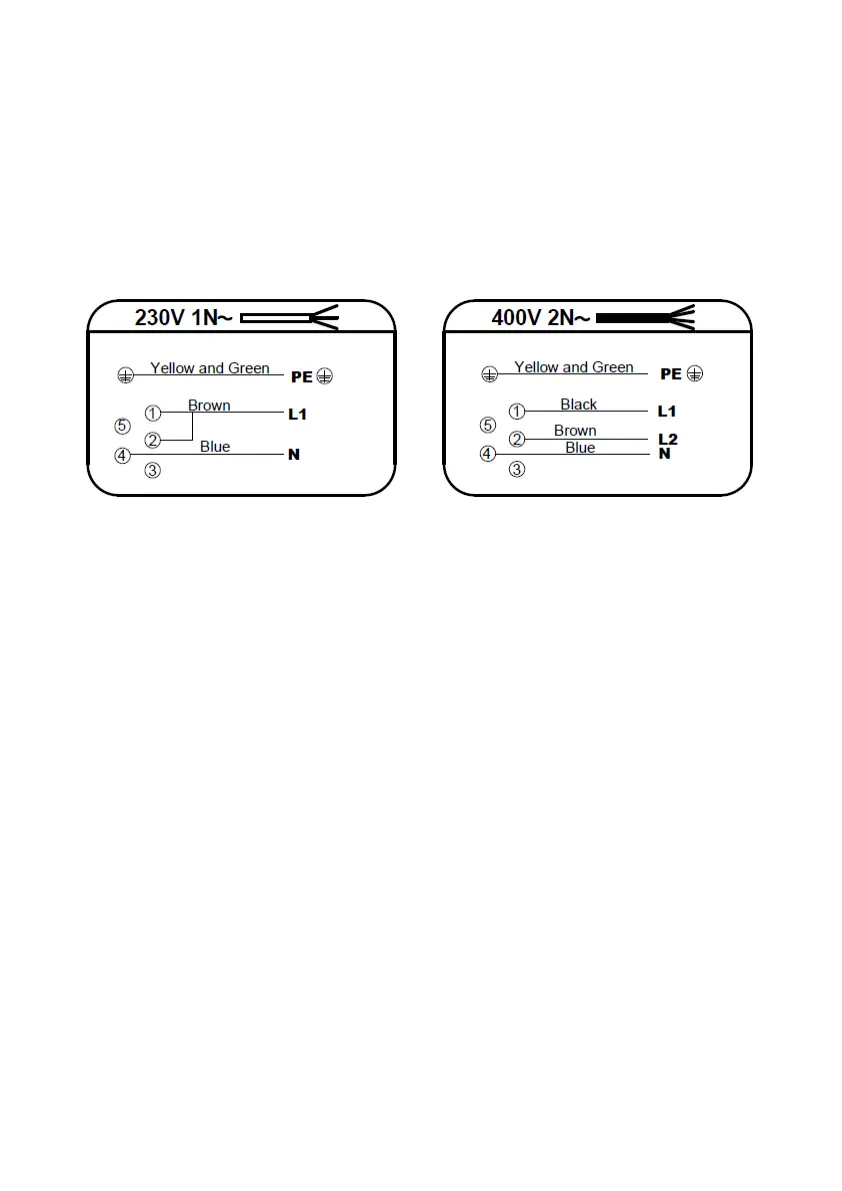

The connection of the device should be performed according to the following
scheme:
Figure 1 - Single-phase and multiphase machine connection scheme.
As shown in the above picture, for single-phase machines (230V 1N ~), the
brown wire of the power cord should be connected to the main switch L1
connector, the blue wire of the power cord should be connected to the
main switch N connector, and the yellow and green wire should be
connected to the ground wire that protects the machine. For multiphase
machines (400V 2N ~), instead of one brown wire, there is one black wire
connector to the L1 connector and one brown wire connected to the
L2 connector, the other connections remain the same.
