Original User Manual FUXTEC FX-BV140 rev03
5.4 INSTRUCTIONS FOR HEIGHT ADJUSTMENT
CAUTION: Never adjust the scarifier at any time without first switching off the engine.
Your scarifier is equipped with a lever for height adjustment, which offers an unlimited number of working
positions. The working positions are dimensioned in -3mm, -6mm, -9mm, -12mm, and -15mm height.
1. Stop the scarifier and disconnect the spark plug cable before changing the cutting height of the device.
2. To change the cutting height, turn the front knob clockwise or vice versa to the desired height.
3. Move the transport lever to transport position to prevent the mowing deck from touching the ground when
the work is finished.

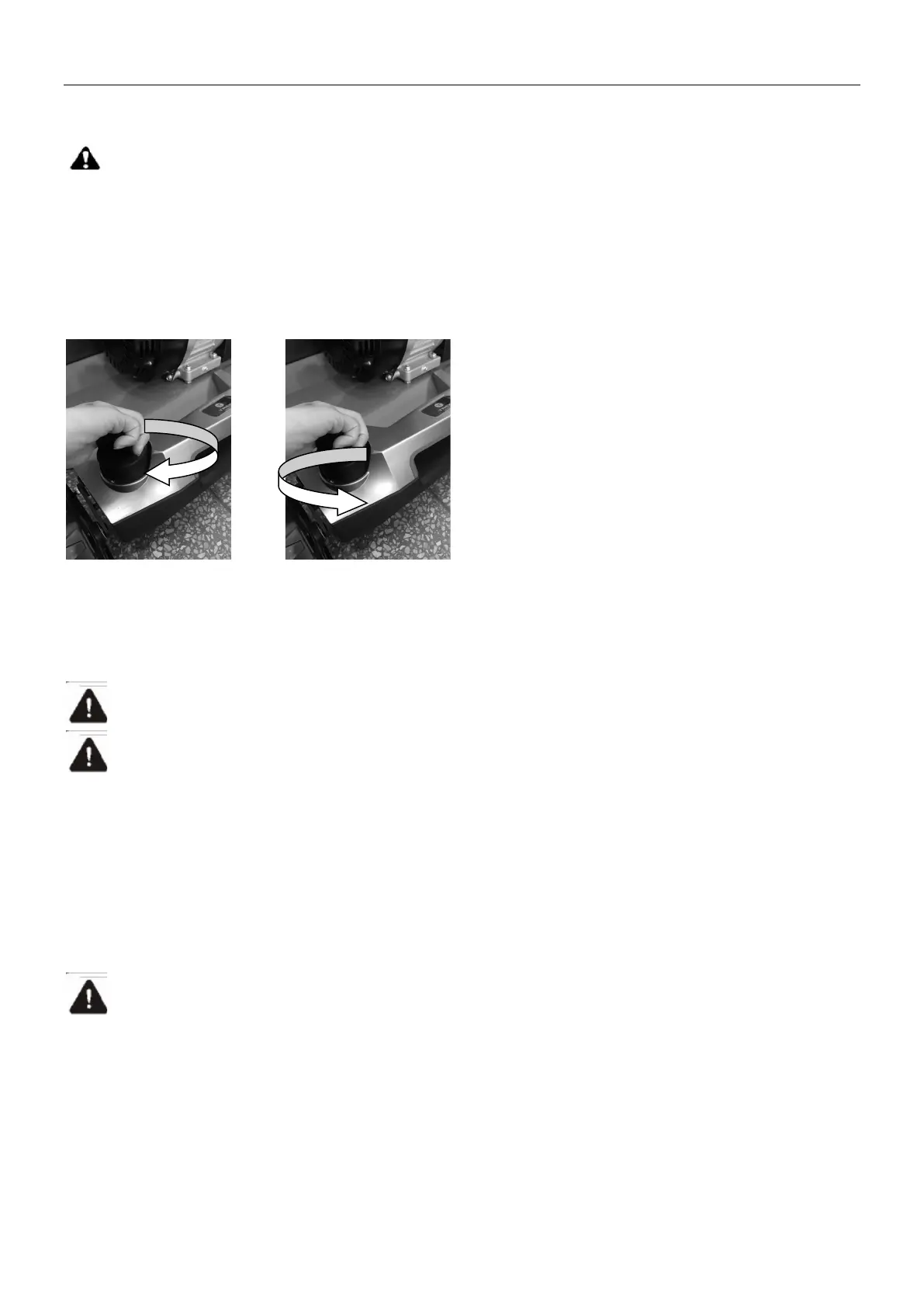

Fig.10A Fig.10B
6. REPLACING THE ROLLER
CAUTION: Make sure to wear work gloves.
Caution: Only use original scarifier/aerator shafts approved by the manufacturer.
The device can be mounted with the scarifier roller or the aerator roller.
Only replace the roller with an original roller as this ensures optimum performance and safety under all
conditions.
To change the scarifier roller or the optionally available aerator roller, proceed as follows
1. Switch off the engine and let it cool down.
2. Remove the spark plug connector.
3. Remove the grass collector.
Lift the device slightly at the front.
Note: Do not lift the machine too high. Otherwise, fuel may leak from the tank. Drain fuel if necessary
before changing the roller.
Blade up
Blade down
