27. Assembly of the device
■ Assembly of the frame

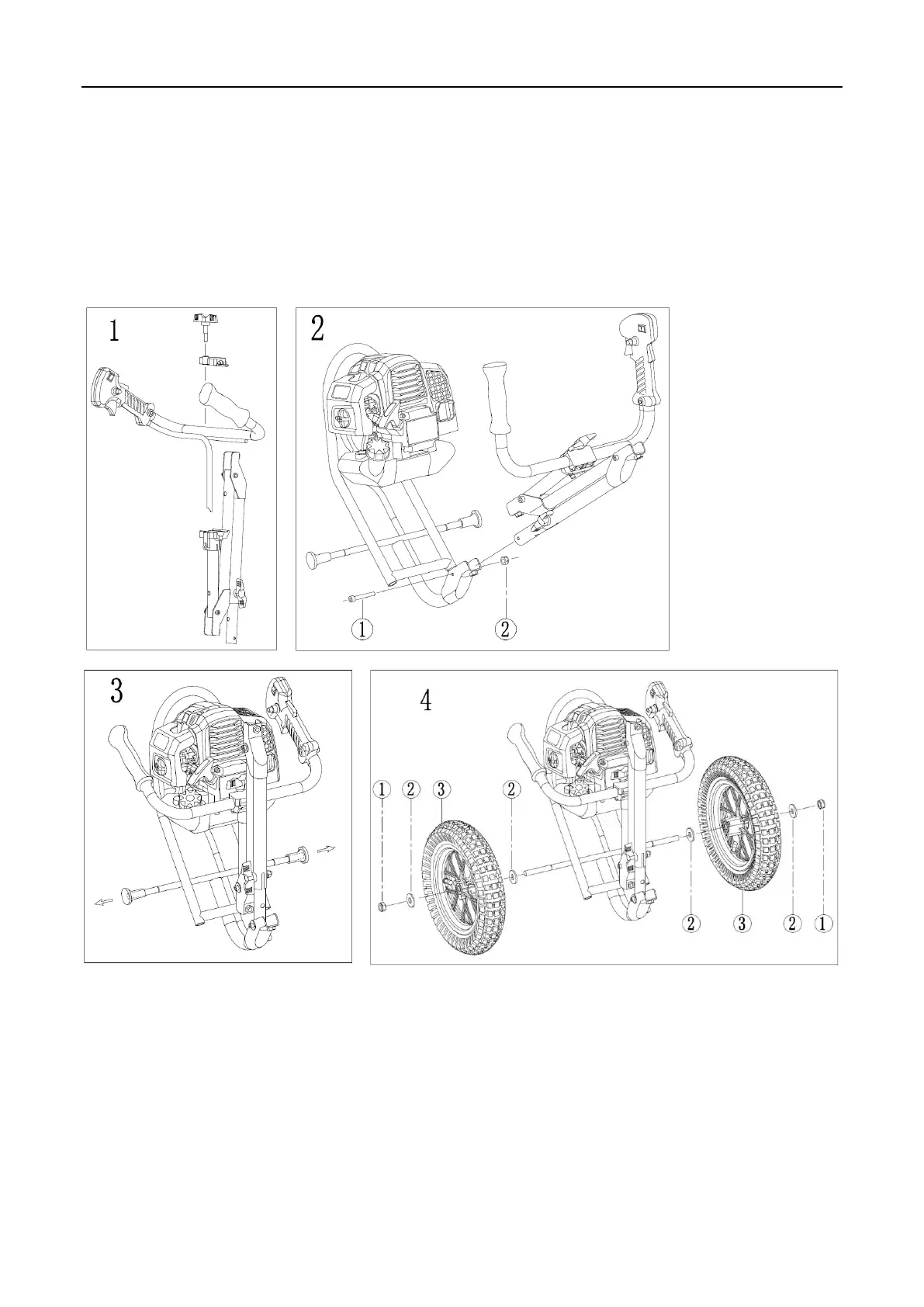

5. Put the handle into the intended holder and fix it with the shown clamp and the corresponding
wing screw.
6. Fasten the handle with the appropriate screw (1) and nut (2)
7. Remove the covers
8. Mount the wheels on both sides by attaching the illustrated parts in the following order:
Washer (2) - tire (3) - washer (2) - nut (1). Then tighten the nut (1).
