Original User Manual FUXTEC FX-GS36S
8
Step 2

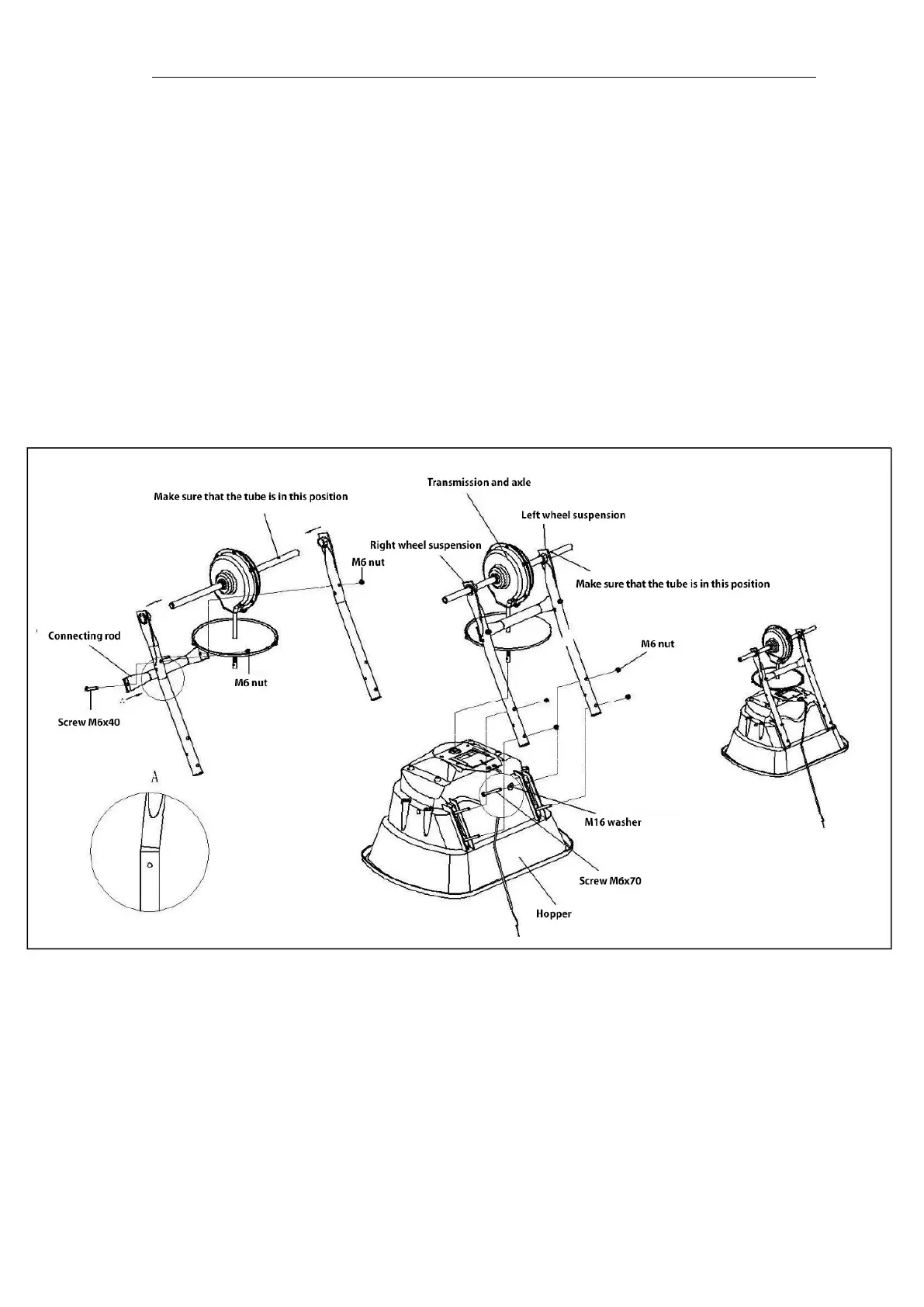

• Take the 2 wheel suspensions and connect them to the axle as shown
• Bolt the ends of the connecting tube with the left and right suspension with M6X40
bolts and M6 nut
• Connect connecting tube with the shaft carrier plate
• Connect attached support leg with wheel suspension and funnel with M6X70 bolts,
M6 nut, and 6 mm washer
Remark: The screws should not be tightened; just pre-assemble for the time being!
–
