Original User Manual FUXTEC FX-GS36S
7
6. Mounting and assembly

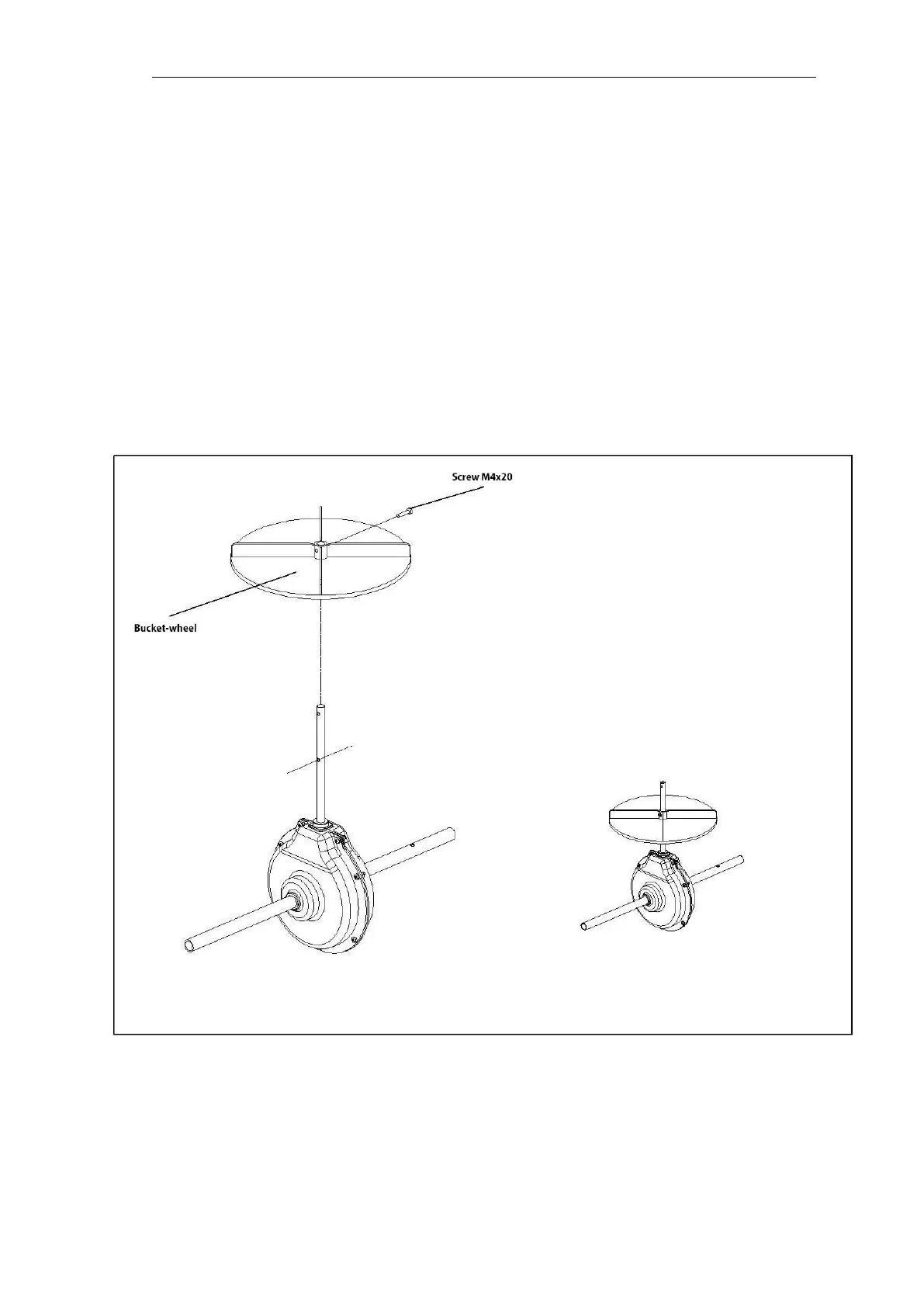

Step 1
• Mount the bucket wheel on the axles and gear unit
• Connect with the screw M4 x20 through the bucket wheel and the axle rod
