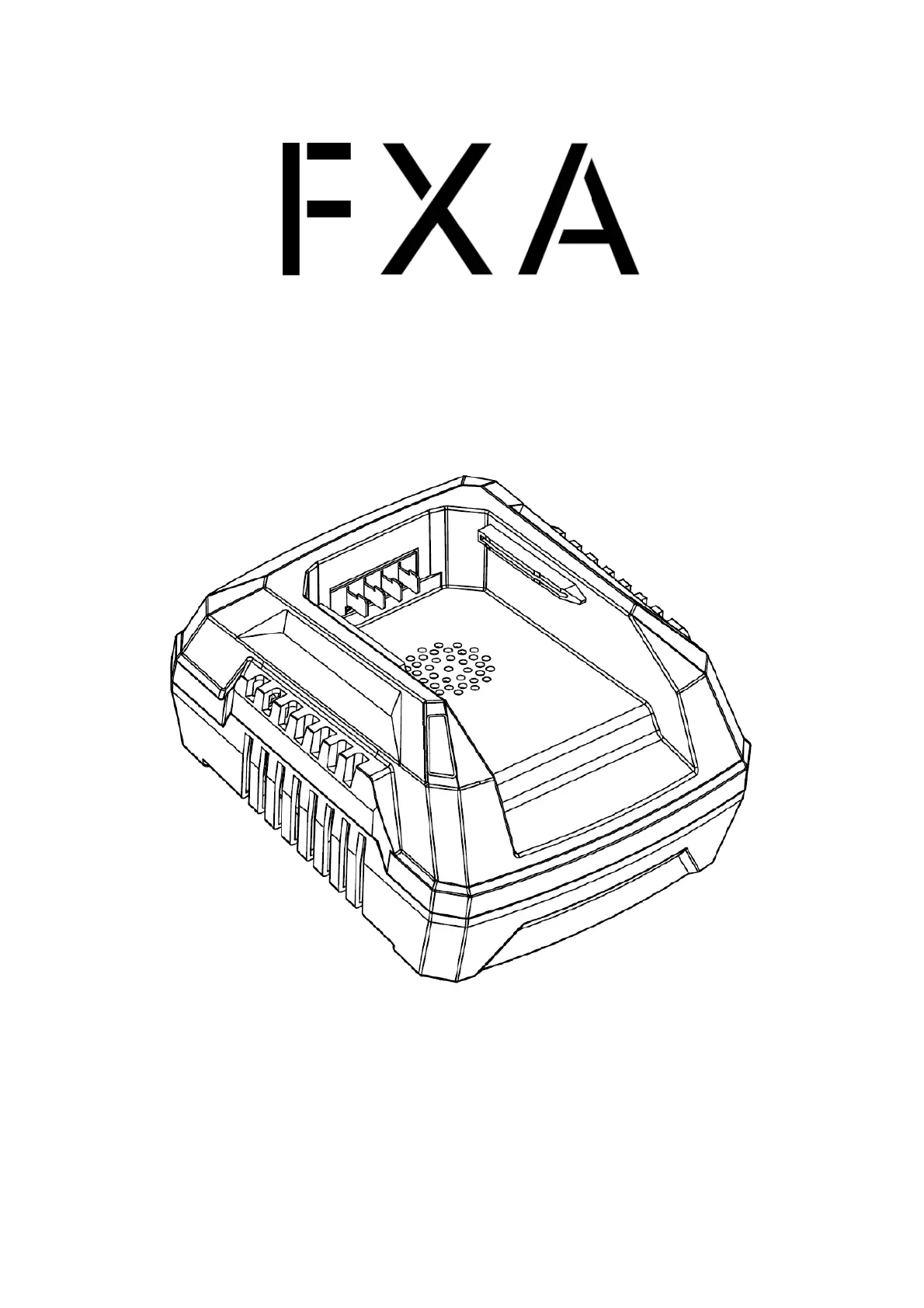

The FXA 80V Lithium-Ion Battery Charger, model 501915307/ZE80C2, is designed for recharging SMILODON 80V Lithium-Ion Batteries. This charger is intended for household use and offers a straightforward interface with LED indicators to communicate its operational status and the battery's charge level.

Function Description

The primary function of this device is to safely and efficiently charge 80V Lithium-Ion batteries. It converts AC input power to DC output power suitable for the battery, ensuring proper voltage and current delivery for optimal charging. The charger incorporates status indicator lights to provide visual feedback on the charging process and any potential issues. It is crucial to use this charger exclusively for SMILODON 80V Batteries and never attempt to charge non-rechargeable batteries, as this could lead to damage or injury.

Important Technical Specifications

The FXA 80V Lithium-Ion Battery Charger operates within standard electrical parameters and is designed for specific battery types.

Product Model: 501915307/ZE80C2
Input Voltage: 230V AC
Input Power: 250W (max)
Input Frequency: 50-60Hz
Input Current: 2.5A (max)
Output Voltage: 80V
Output Current: 2.5 A
Compatible Battery: ZE80B2
Charge Time: 60 minutes

These specifications ensure compatibility with typical household electrical outlets in regions using 230V AC and 50-60Hz frequency. The charger's output is specifically tailored for 80V Lithium-Ion batteries, delivering a steady 2.5A current for a full charge within approximately 60 minutes.

Usage Features

The charger is designed for ease of use, with clear indicators for different operational states.

Initial Setup: To begin, plug the charger into a standard AC outlet (220-250V). The power cord can be adapted to suit local power sockets if necessary.

Battery Insertion: Insert the battery into the designated slots on the charger. Slide the battery into place until it securely locks.

Status Indicator Lights: The LED lights on the charger provide essential information about its status and the battery's charge:

LED steady red: Indicates that the charger is ready to charge, but no battery is currently connected.
LED flashes green: Signifies that the battery is actively charging.
LED steady green: Shows that the battery is fully charged and should be removed from the charger.
LED flashes red: Alerts the user to a battery fault or an overheat condition.

Charging Process: Once the battery is correctly inserted and the charger is plugged in, the LED will flash green, indicating that charging has commenced. When the battery is fully charged, the LED will turn steady green.

Battery Removal: To remove the battery, press and hold the latch button while sliding the battery out of the charger. It is recommended to remove the battery once it is fully charged and not leave it on the charger indefinitely.

Important Usage Notes:

If the charger is plugged in and no LED lights are illuminated, first check that the power cord is firmly connected to both the charger and a live electrical outlet (test the outlet with another appliance if unsure). If the issue persists, contact an authorized service center; do not attempt to use or repair the charger yourself.
Lithium-Ion batteries do not suffer from a "memory effect," meaning that partial charges will not damage the battery or reduce its overall lifespan.

Maintenance Features

Proper storage of both the charger and battery is crucial for their longevity and performance.

Long-Term Storage (Charger and Battery):

For storage periods exceeding one month, it is advisable to fully charge the battery before storing it.
Store the battery in a dry place with a temperature between 10°C and 25°C.
The charger should be stored under similar conditions as the battery.
Ensure that no foreign objects, particularly metal chips, enter the ventilation slots of the charger during storage, as this could cause damage.
Keep the battery stored away from anything that could potentially short-circuit its power connectors.

By adhering to these usage and maintenance guidelines, users can ensure the safe and effective operation of the FXA 80V Lithium-Ion Battery Charger and prolong the life of their batteries.
