Setting Automatic Close Operation
Refer to the “SL 2000 Circuit Board” data sheet included with this manual and locate the ‘AUTO
CLOSE ’ settings (J3 + J4) on the circuit board.
The gate motor is supplied with the Auto Close OFF as standard.
The gate motor can be set to ‘Auto Close’ by simply changing a ‘jumper’ setting on the control
board to give a 30, 60 or 90 second close delay. With the gate motor set to ‘Auto Close’, the gate
will always close after the pre-set time has elapsed. The ‘jumper can be easily pulled off the 2
pins and pushed back onto the 2 pins required.
WARNING
If the ‘Auto Close’ feature is enabled, then precautions should be taken to
ensure the gate can close without hitting any obstructions or suitable safety
accessories are also installed.
Regularly check that all safety features and safety accessories are fully
functioning.

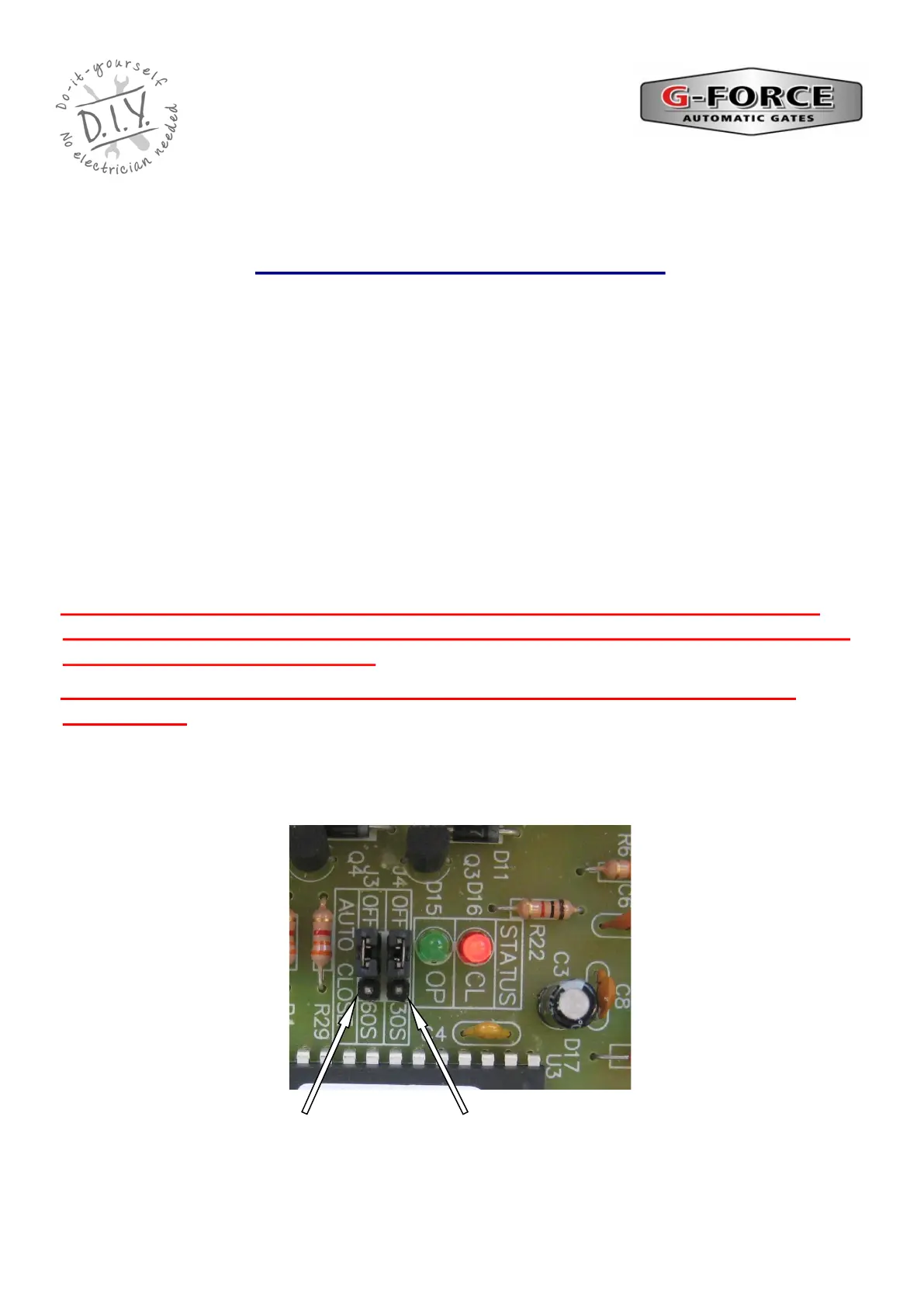

Auto Close (J4) OFF—30 seconds
‘Jumper’ Shown in OFF position
Auto Close (J3) OFF— 60 seconds
‘Jumper” Shown in OFF position
SL GATE MOTOR INSTALLATION
AND SET UP INSTRUCTIONS
