The solar panel is to be connected directly to the terminal block next to the regulator and NOT
to the circuit board.
Remove the “Dummy” wires and connect the positive and negative solar panel wires to the
terminal block (grey / red positive wire - grey / black negative wire) from the regulator. Plug the
piggy back spade connections to the battery terminals on the battery. Note the polarity (Red,
Positive wire to Red battery terminal, Black / Blue Negative wire to Black battery terminal). The
board should now be powered and great care should be taken to avoid shorting out or otherwise
damaging the circuit board.
1.5mm Twin Active Low Voltage Cable
(RED active / WHITE neutral)
Terminal Block
Solar Panel Wires
RED wire to RED (Positive) wire
BLACK wire to NEGATIVE wire
Weather Proof
Enclosure
Terminal Block
Solar Panel Wires
POSITIVE wire to grey /
red wire
NEGATIVE wire to grey /
black wire
(Remove “Dummy Wires”
before connecting solar
panel wires)
Red wires to Red Positive Battery
Terminal / Piggy Back Spade
Connectors. Black / Blue wires to
black Negative battery Terminal /
Piggy Back Spade Connectors
Solar Regulator
Indicator LED’s
Safety
Fuse

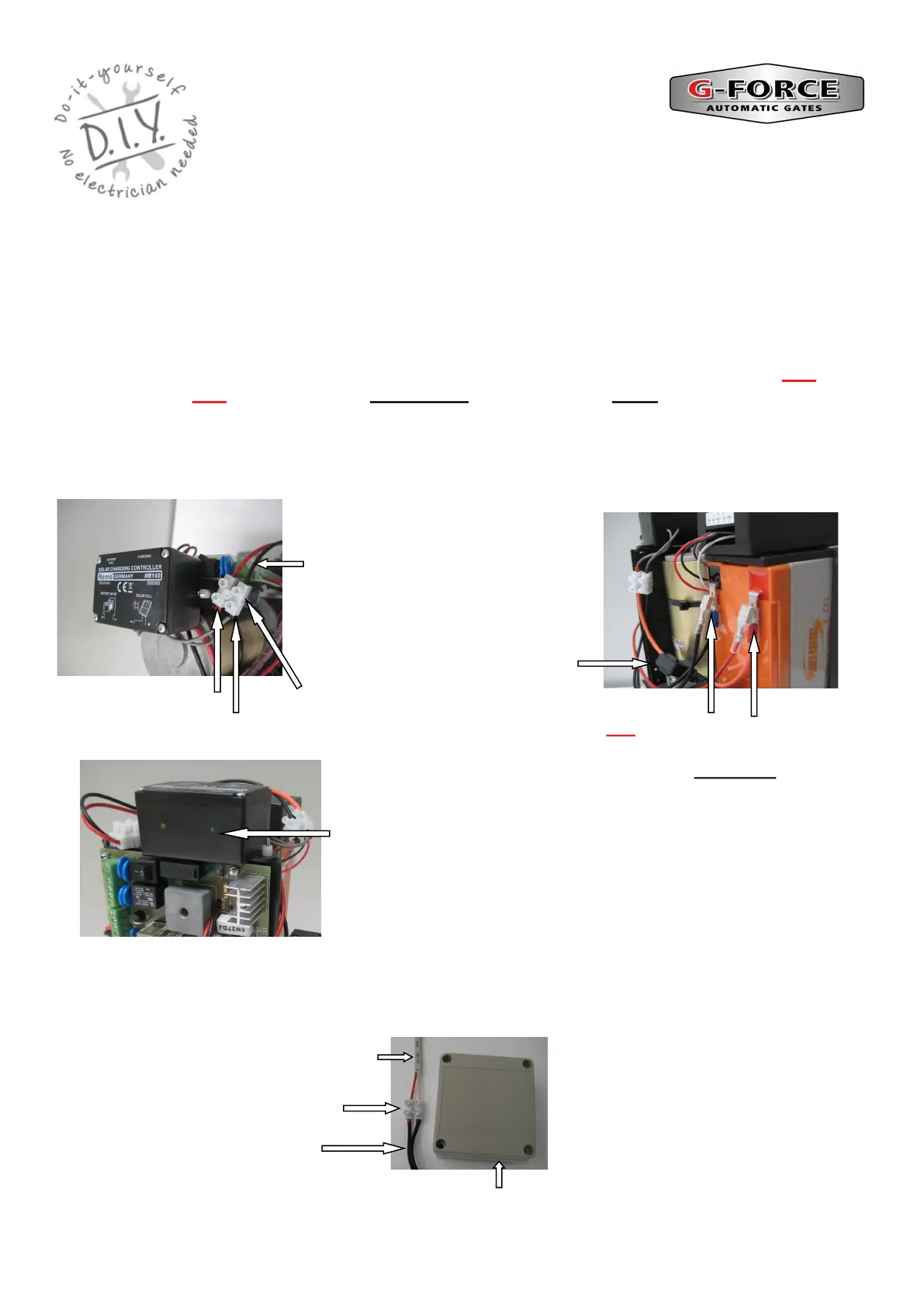

Solar Panel / Regulator
Wiring Instructions
If the solar panel wires need to be extended then we recommend you use a terminal block /
joiner. Place the terminal block / joiners into a small enclosure for protection and outdoor
installation.
grey / red positive wire /
grey / black negative wire
