Pre Installation set up and testing
We recommend the gate motor settings and direction of rotation be set up and tested prior to
installation.
Un pack the motor and remove the motor cover. Place the gate motor on a suitable work bench.
Visually inspect the motor to ensure nothing has moved during transit. Refer to the “SL 2000
Circuit Board” data sheet included with this manual and familiarise yourself with the layout and
location of the items and wiring terminals.

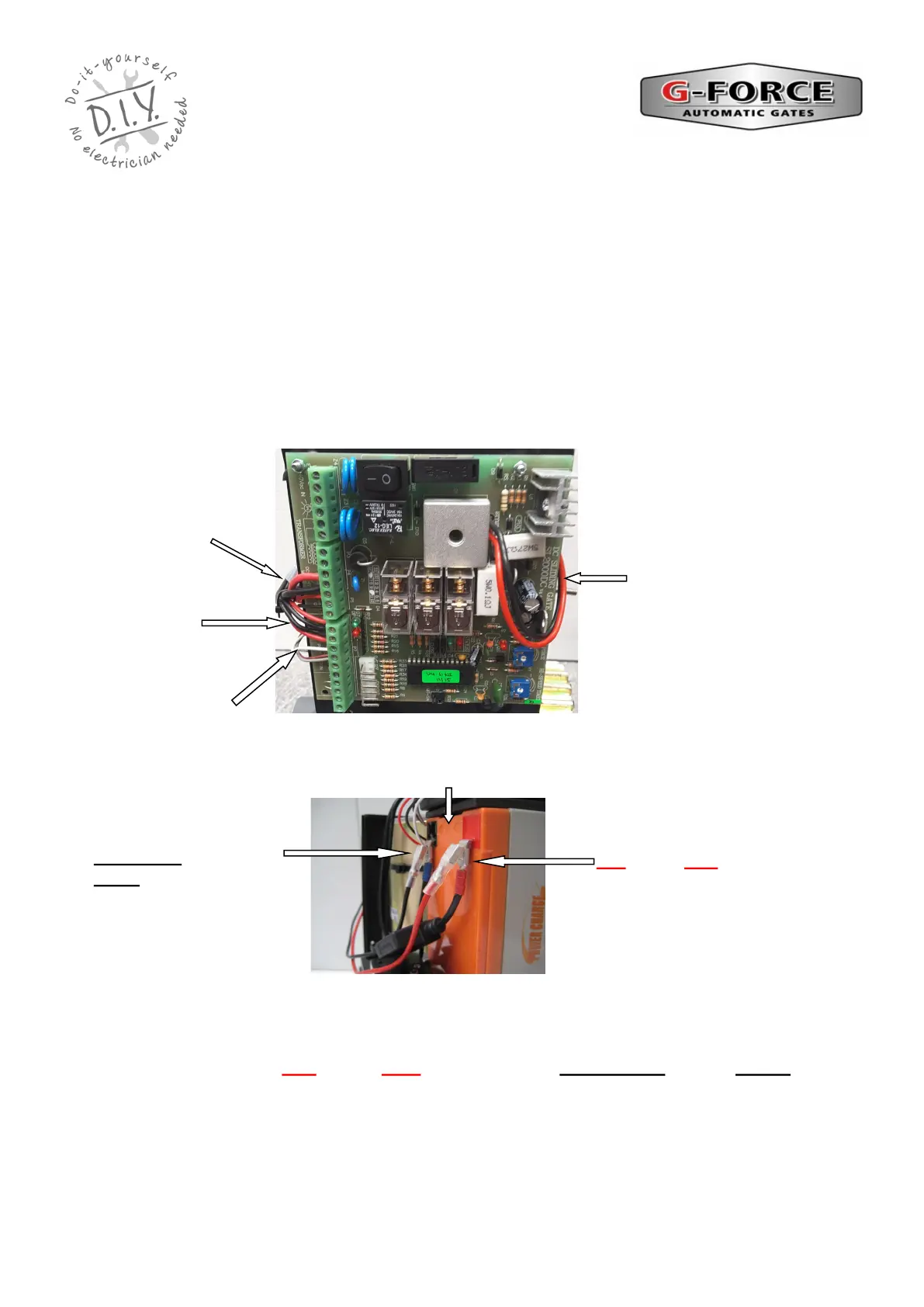

Refer to the “SL 2000 Circuit Board” data sheet included with this manual and locate battery
connection wires on the circuit board. Connect the battery wires to the battery terminals on the
battery. Note the polarity (Red wire to Red battery terminal, Black / Blue wire to Black battery
terminal). The board should now be powered and great care should be taken to avoid shorting
out or otherwise damaging the circuit board.
Activate the gate motor using one of the handset remote. The remotes are coded to the gate
motor during assembly. Alternatively, refer to the “Handset Remote Programming” data sheet to
code in the remotes. Press the remote again to stop the motor. Press the remote again to
reverse the motor direction. Disconnect the battery wires when finished.
Handset remote
receiver wires
Motor wires
Battery
Wires
Battery connection for
bench testing and set up
Limit switch
wires
SL GATE MOTOR INSTALLATION
AND SET UP INSTRUCTIONS
Black / Blue wire to
Black battery terminal
Red wire to Red bat-
tery terminal
To Next Page
