G-RAID Installation Guide
Pa
e 9

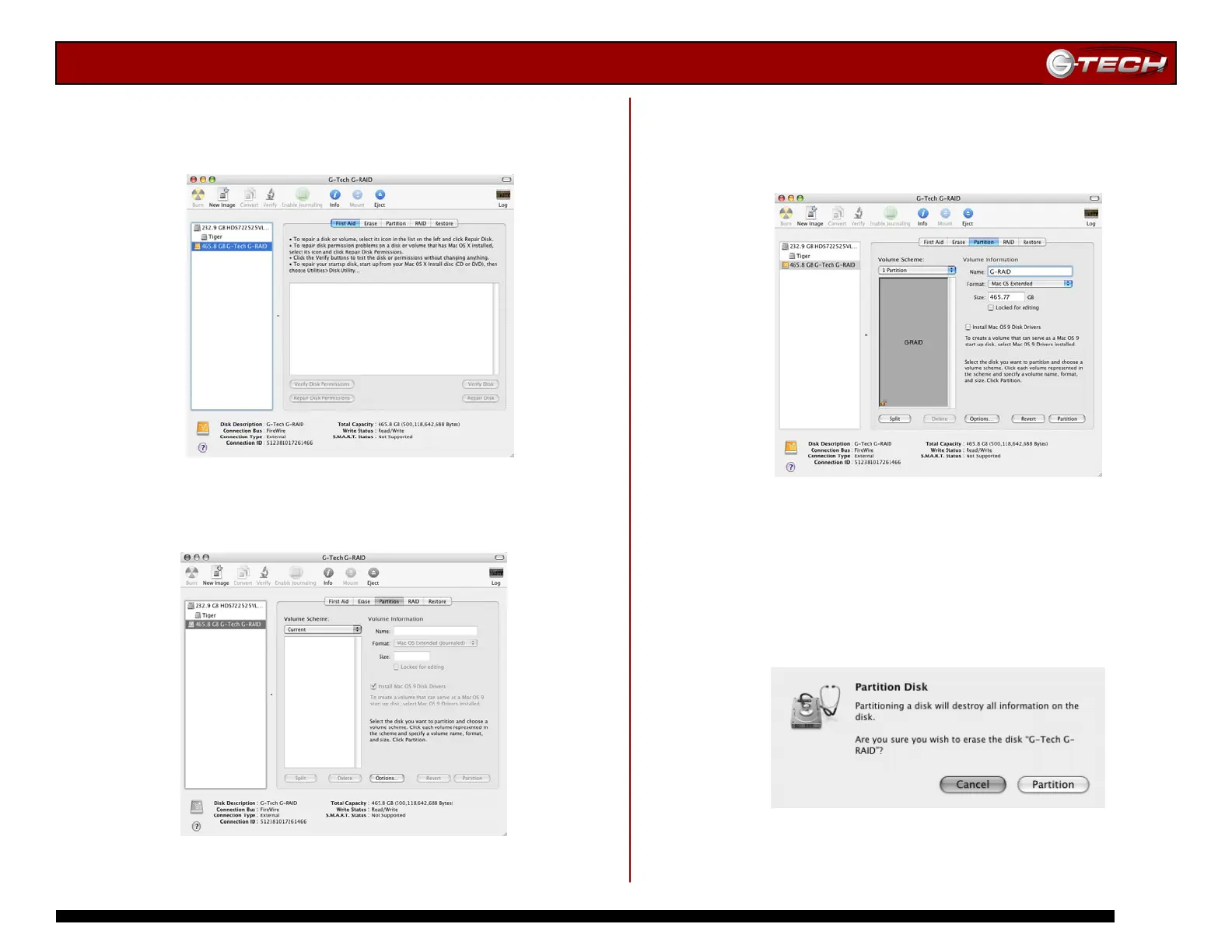

2. Select G-RAID by clicking on the entry in the left-hand
column as shown below. Information about G-RAID will be
displayed at the bottom.
3. Select the Partition tab to view the partition options as
shown below.
4. Set the Volume Scheme: to 1 Partition.
Enter a Volume Name: under Volume Information
(in this example G-RAID) and set Format: to
Mac OS Extended as shown below.
Note: Alternatively, G-RAID can be set up in multiple volumes by
selecting the desired number of partitions from the Volume Scheme
pull-down menu.
5. Click on the <Partition> button. The dialog box shown
below will appear
. Click on the <P
artiti
on> button to
continue.
