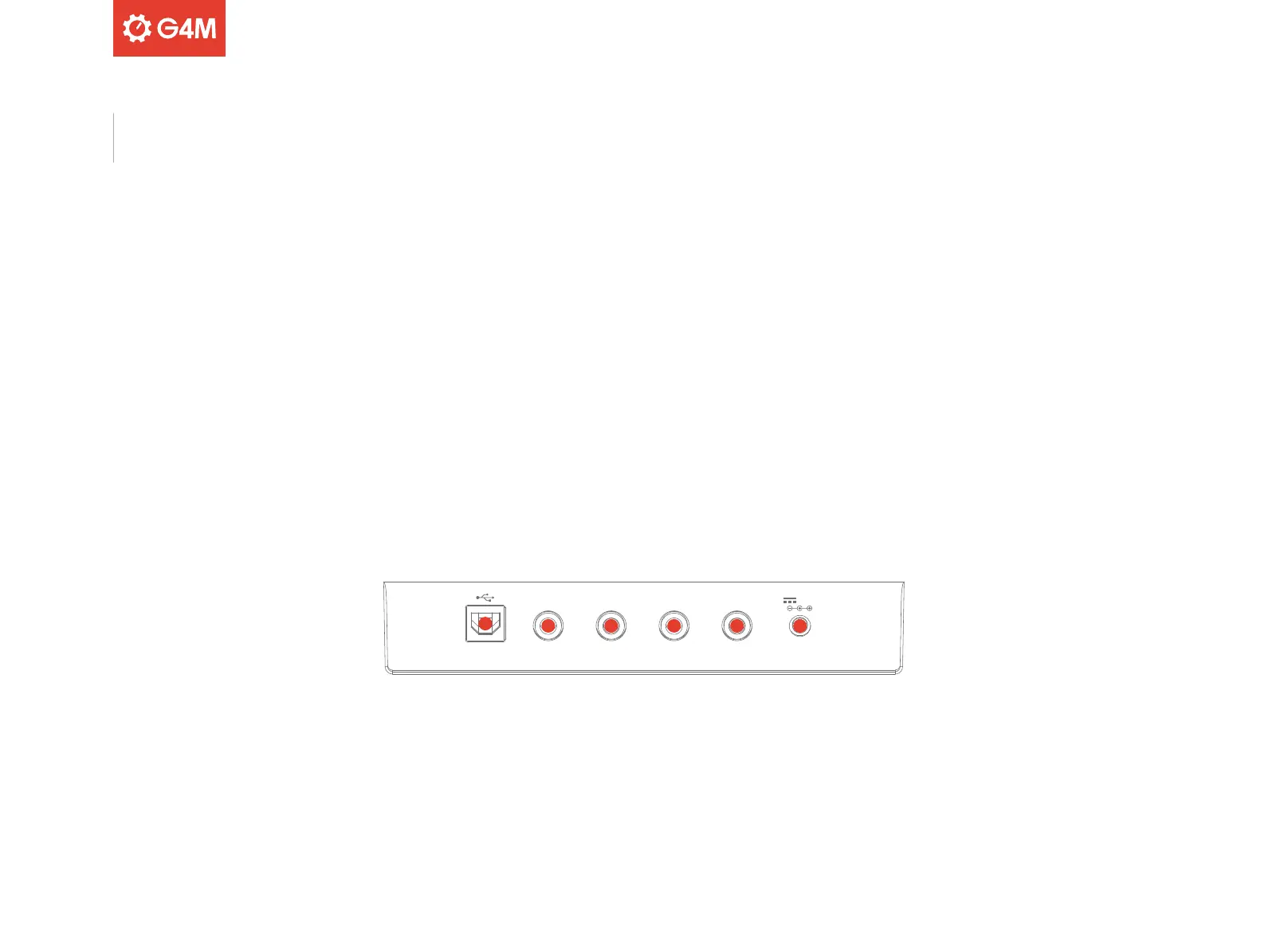

Rear Panel
SUSTAIN
HEADPHONES/
OUTPUT INPUT MIC
12V
37. USB PORT
USB port used for connecting to a computer
for USB MIDI
38. SUSTAIN
1/4” jack input to connect a sustain pedal
(not supplied)
39. HEADPHONES/OUTPUT
1/4” jack output to connect headphones or audio equipment such as
a mixer, interface or amplifier.
40. INPUT
1/4” jack input to connect an external audio source, such as a
smartphone, MP3 or CD player
41. MIC INPUT
1/4” jack input to connect a microphone (not supplied)
42. DC 12V
Connect the supplied power supply
37
38 39 40 41
42
