15 04/15
Installation
Planning the Installation

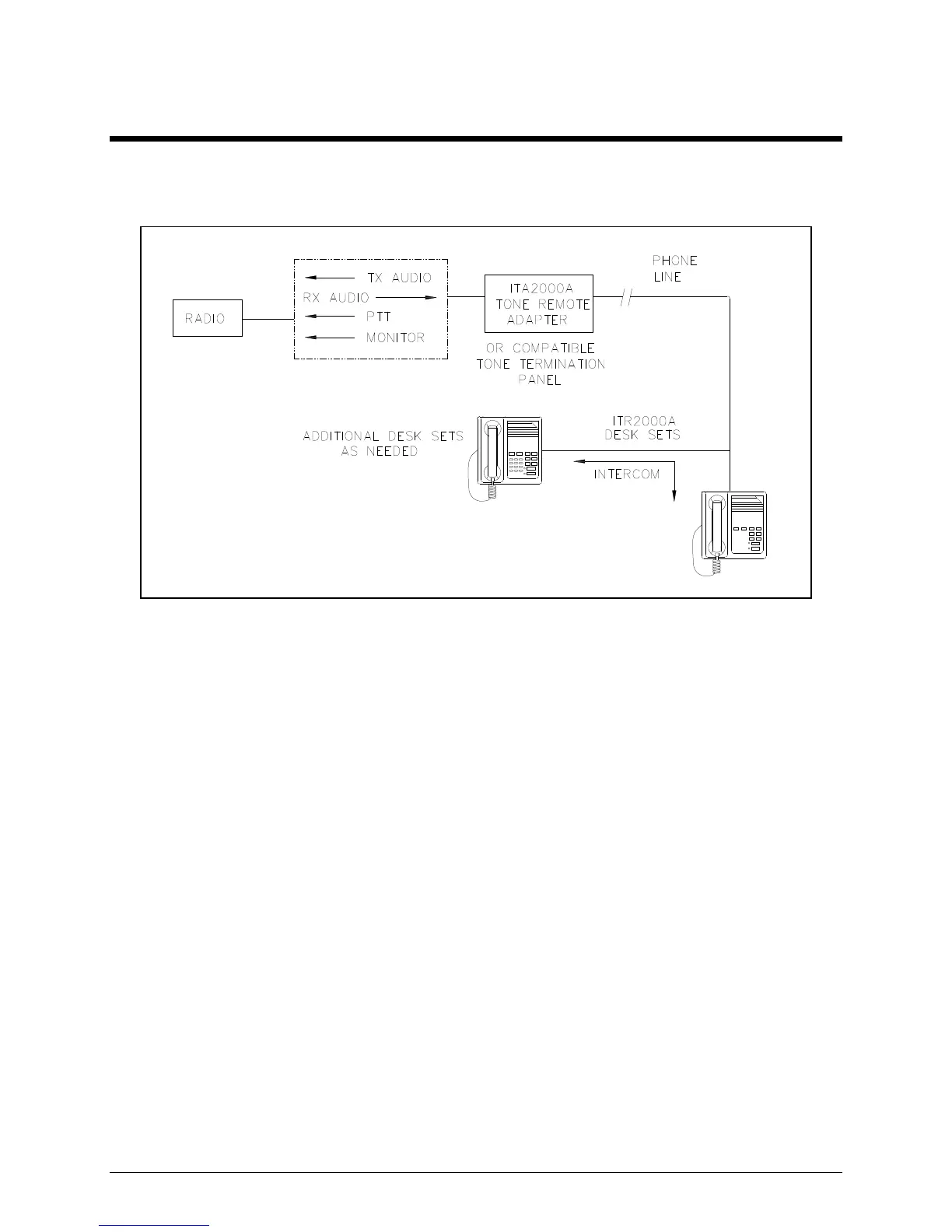

Figure 5. Typical ITR2000A Installation
Mechanical Receipt Inspection
The ITR2000A Tone Remote Desk Set is shipped in a cardboard container with inserts. Thoroughly
inspect it as soon as possible after delivery. In-transit damage should be immediately reported to the
transportation company.
Mounting
The desk set can be placed on a desk or mounted vertically on a wall. However, some options may
prohibit wall mounting. To wall mount the desk set, remove the four bottom screws from the base and
then rotate the base 180. Reinstall the four screws to the base and rotate the handset hook located on the
front of the unit.
FCC Interference Warnings
The FCC requires that manuals pertaining to Class A and Class B computing devices contain warnings
about possible interference with local and residential radio and TV reception. Please read these warnings
and all safety information in the “Foreword” section of this manual.
