Galaxy 1M2S - Pan Switch Installation and Wiring

Additional Equipment Setup Section (Not Standard)
Pan switch

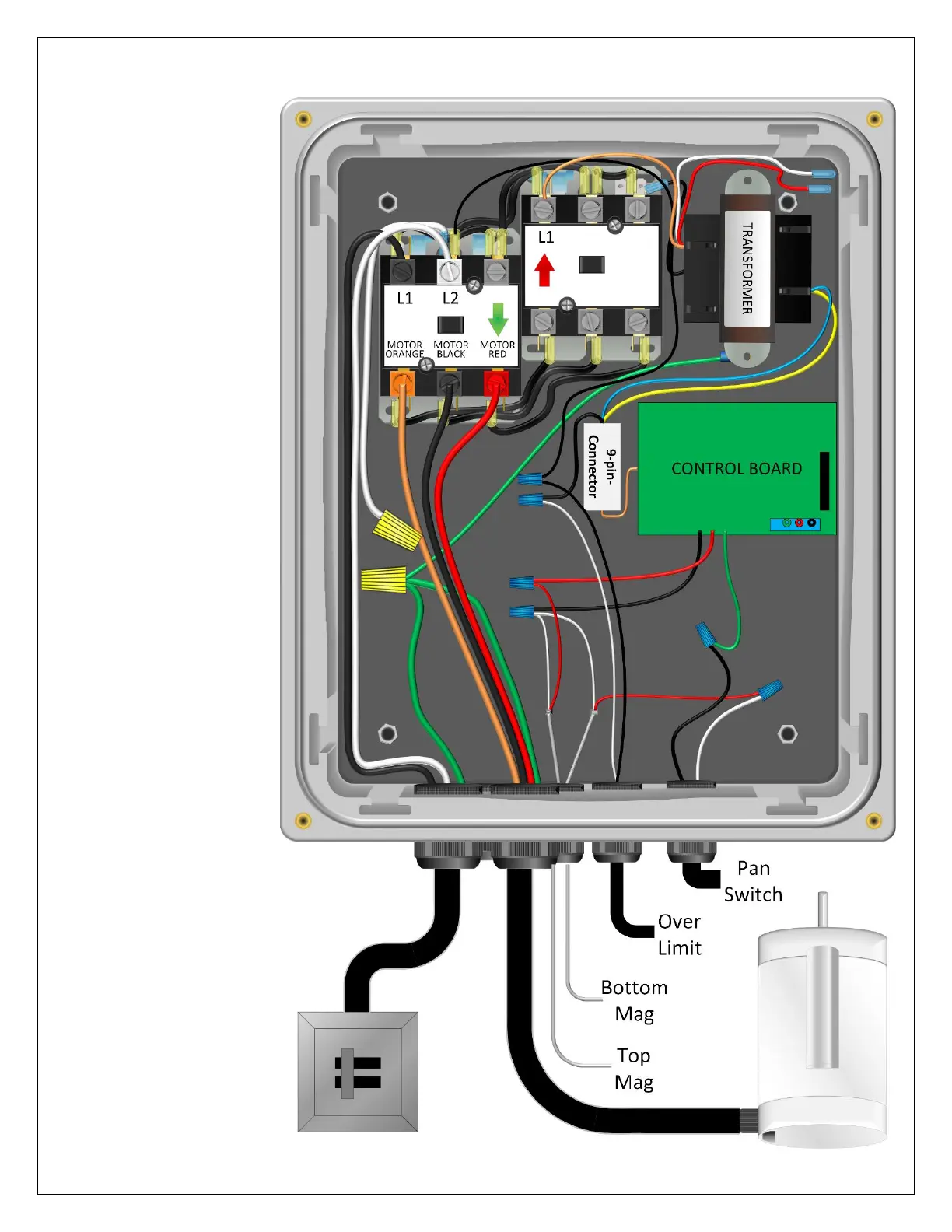

1. Connect the black
wire from the Pan
Switch to the green
limit wire coming
off the control
board.
2. Connect the white
wire from the Pan
Switch to the red
wire coming off the
bottom magnetic
limit switch.
(Limits)
(CB)
