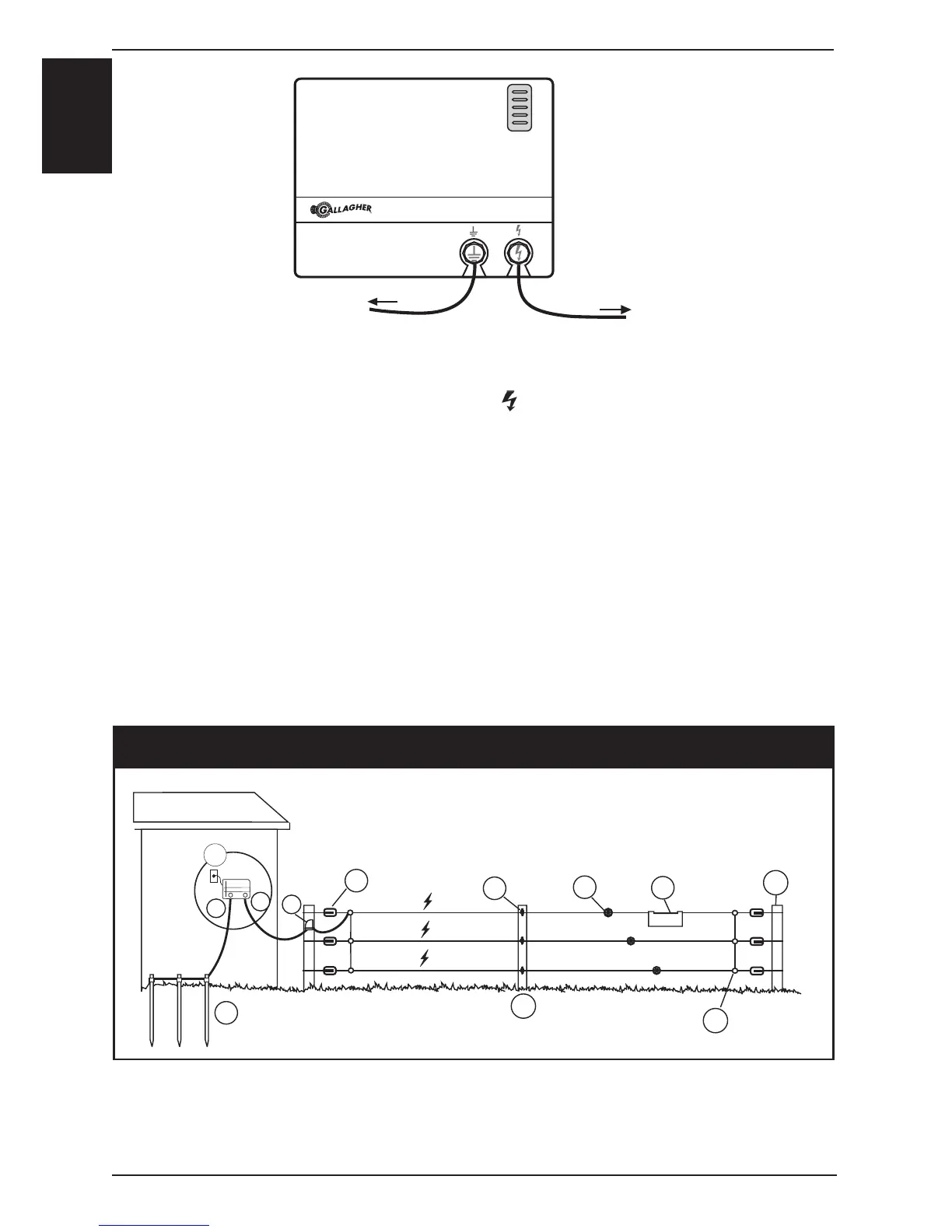

Step 3. Connect the fence
a) Connect the energizer’s red output ( ) terminal to the fence using
Underground Cable (G627). Remove 5cm (2”) of plas c coa ng from one end
of the cable. Unscrew the red (FENCE) terminal and insert the wire through the
terminal slot. Screw the terminal closed, ensuring the wire is fi rmly clamped.
b) A ach the other end of the cable to the fence using a Joint Clamp (G603).
For instruc ons on fence installa on see the Gallagher Power Fence™ Manual or go
to www.gallagherams.com
Step 4. Turn the Energizer On
a) Plug the energizer into a power outlet and switch ON.
b) LED lndicators on the front of the energizer turn on.
RED
GREEN
To Fence
To Earth System
1 Energizer
2 Earth stake
3 Strain insulator
4 Post insulator
9 Cut out switch
10 Joint clamps
11 Strain post
12 Line post
5 Wire  ghtener
6 Warning sign
7 Earth (Green)
8 Live (Red)
1
2
8
7
9
10
12
11
3
4
5
6
Permanent Fence
