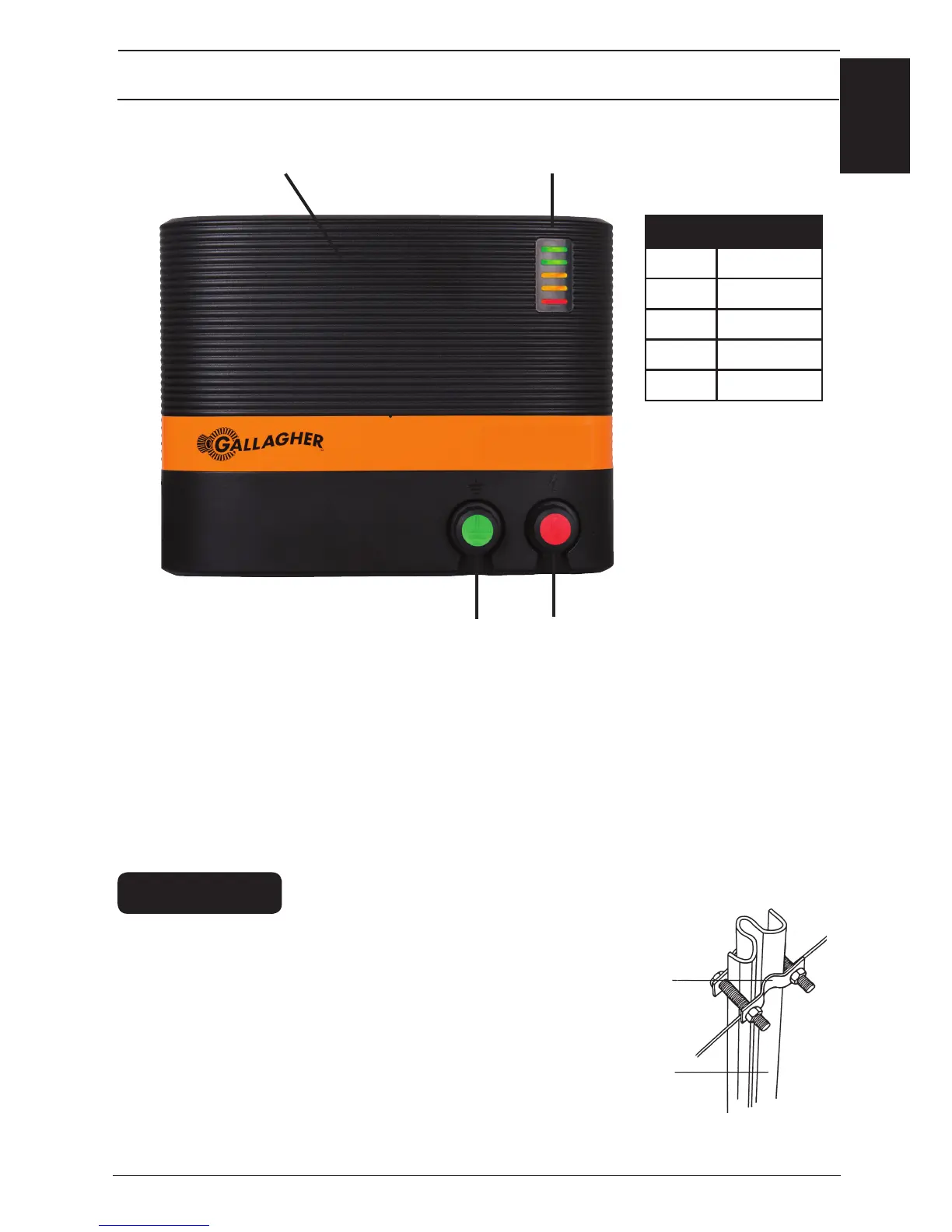

UNDERSTANDING YOUR ENERGIZER
Power Supply
110 - 120VAC. Internal protec on
against poor power supplies
LED Indicators
Idicates fence performance
with each pulse
Earth Terminal
Connects to the
earth system
Fence Terminal
Connects to the fence
wires
Find a loca on for your ground system that is permanently
damp, has high fer lity or salinity and is away from dairy
sheds. Install the ground system at least 10m (33 ) from any
power supply ground peg, underground telephone or power
cable. The best construc on is 2m (6½ ) long galvanised
stakes G879 or Super Ground Kits G880, 3m (10 ) apart,
connected to the energizer by high quality Lead-out cable
G627. Do not use materials that rust.
(Use G6272 if the ground system is over 100m (300 )
from the energizer).
G879
G876
HANDY HINT
LED Voltage
Green > 7.5 kV
Green > 6 kV
Yellow > 4.5 kV
Yellow > 3 kV
Red > 0 kV
