Gallagher 3E0679 M600 M700 M1200 User Manual

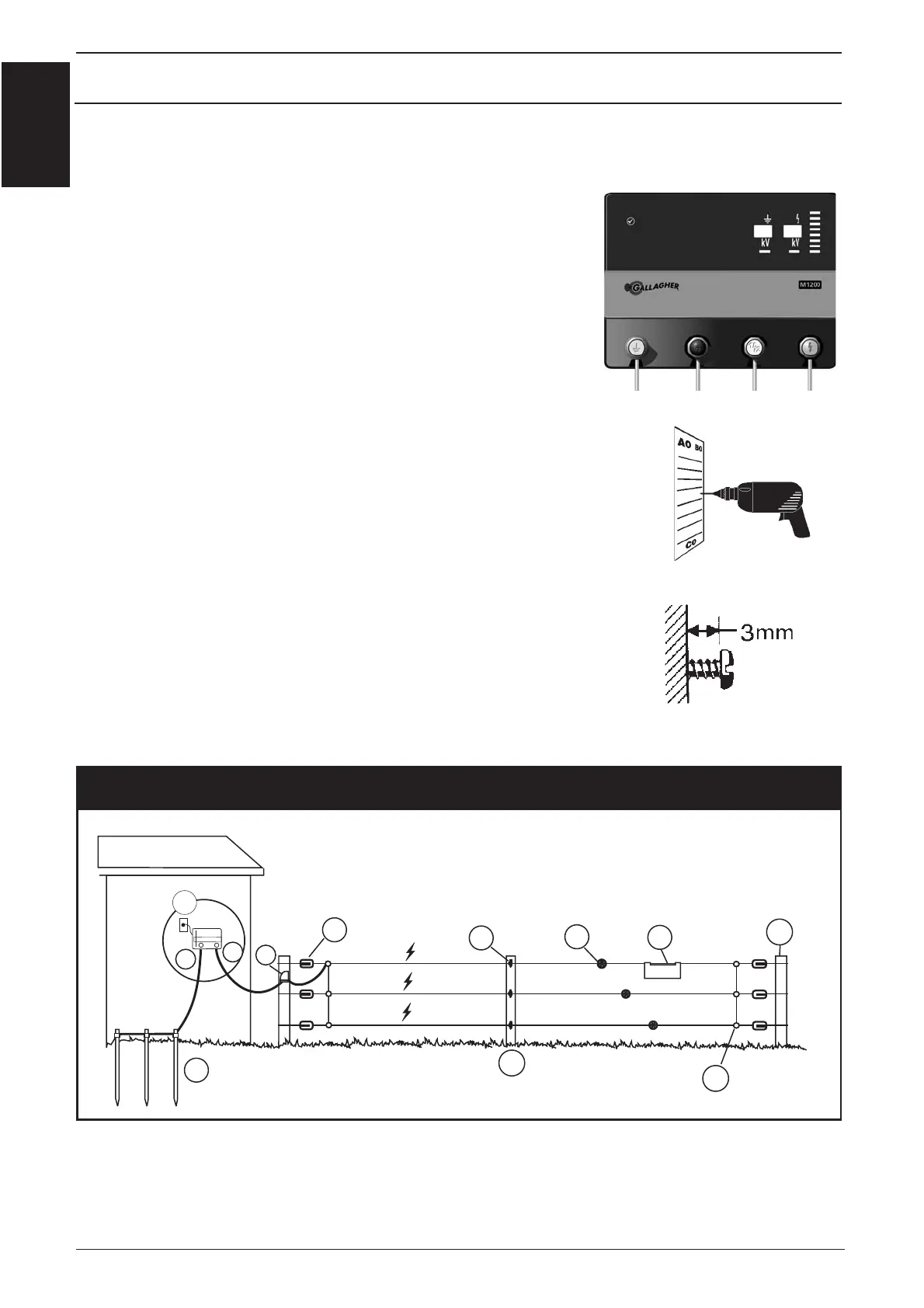

INSTALLATION GUIDE
Mains Operation Only
1 Energizer
2 Earth stake
3 Strain insulator
4 Post insulator
9 Cut out switch
10 Joint clamps
11 Strain post
12 Line post
5 Wire ghtener
6 Warning sign
7 Earth (Green)
8 Live (Red)
1
2
8
7
9
10
12
11
3
4
5
6
Step 1. Install the energizer
Mount the energizer on a wall, under cover or inside,
out of reach of children. Install where there is no risk
of the energizer incurring fi re or mechanical damage
and if possible away from heavy electrical equipment
eg. pumps or other items that may cause electrical
interference.
Note: Install the Energizer in a frequently accessed
place. The displays and alarms give valuable
informa on that can save me and help prevent costly
problems.
a) Using the template on the back page, drill 2 x
4mm (5/32”) holes (A & B).
b) Fix the screws provided into the wall leaving the
head of the screw about 3mm (1/8”) out from the
wall.
c) Place the Energizer over and slide down onto the
moun ng screws.
Permanent Fence
a
b
