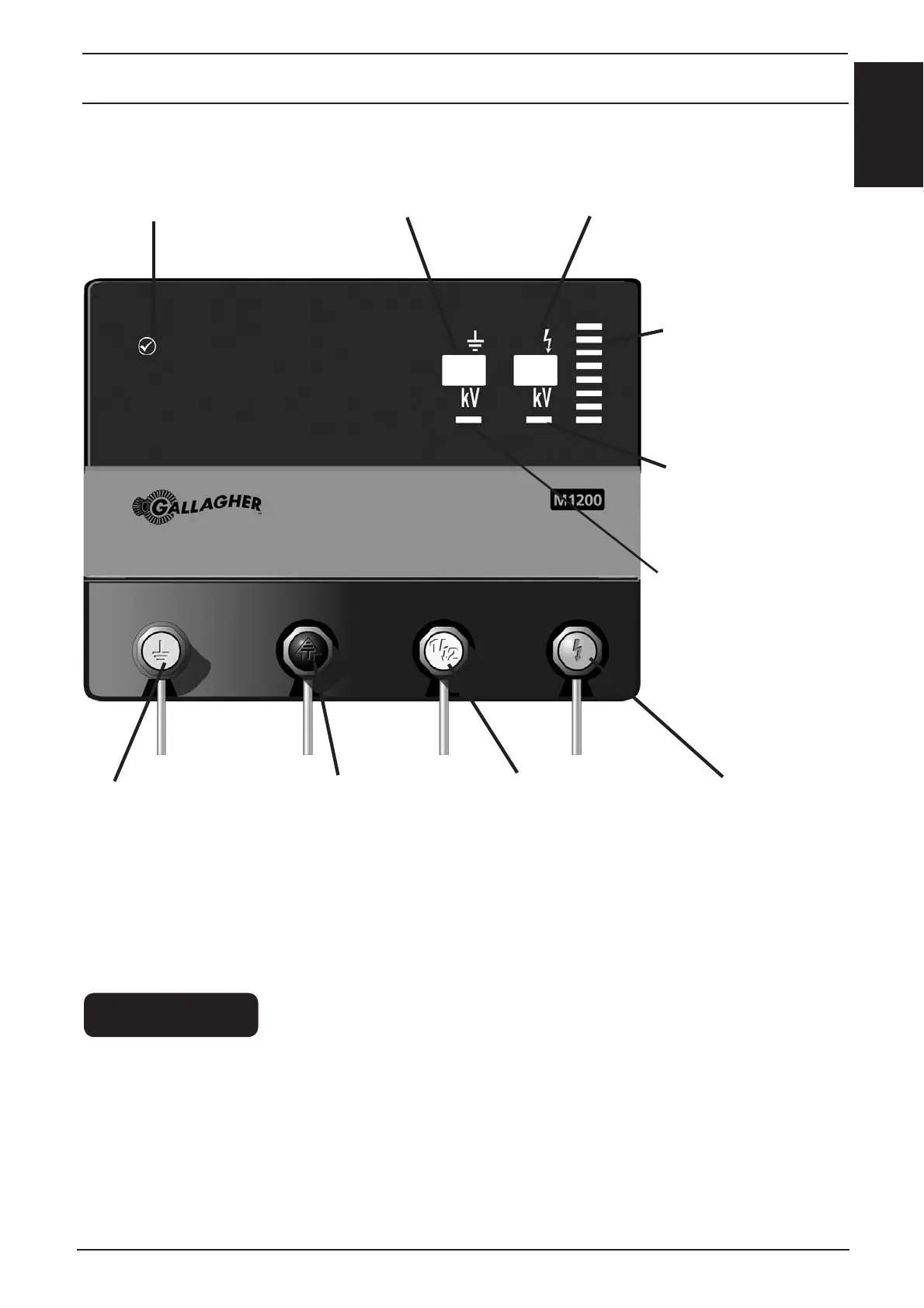

YOUR ENERGIZER…
Power On:
Indicates Normal
Opera on
Output Voltage
Graph:
Quick indica on of the
voltage at the energizer
Output Terminal:
Connects to fence
Output Voltage:
Shows voltage at the
energizer
Output Alarm:
Warns if output
voltage has fallen
below a set level
Earth Alarm:
Warns if earth
voltage has risen
above a set level
Reference Earth
Terminal:
Connects to
Reference Earth
Earth Terminal:
Connects to Earth
Earth Voltage:
Monitors the quality of
the earth
Reduced Output
Terminal:
Connects to fence
Materials and Tools
Gallagher dealers off er a complete range of products for your Power Fence. For
fence specifi ca ons and design contact your Gallagher dealer.
On permanent Power Fencing, use high tensile, 12.5 gauge wire. Do not use barbed
wire or 16 or 18 gauge wire. On portable fences, Polywire, Polytape or light gauge
wire may be used.
HANDY HINT
M700: This energizer complies with the requirements for a me delayed electric
fence energizer with a me delay of 15 seconds.
