Part Number: 3E2513 R1 | 7
Installation Note | Gallagher T11 Reader
Connecting to the Cardax FT Controller 3000-4R or 3000-8R
The ports to which the Gallagher T11 Reader can connect are set up as groups, as
follows:
Two groups (numbered 1 and 2) on the Controller 3000-4R, and•
Four groups (numbered 1 to 4) on the Controller 3000-8R•

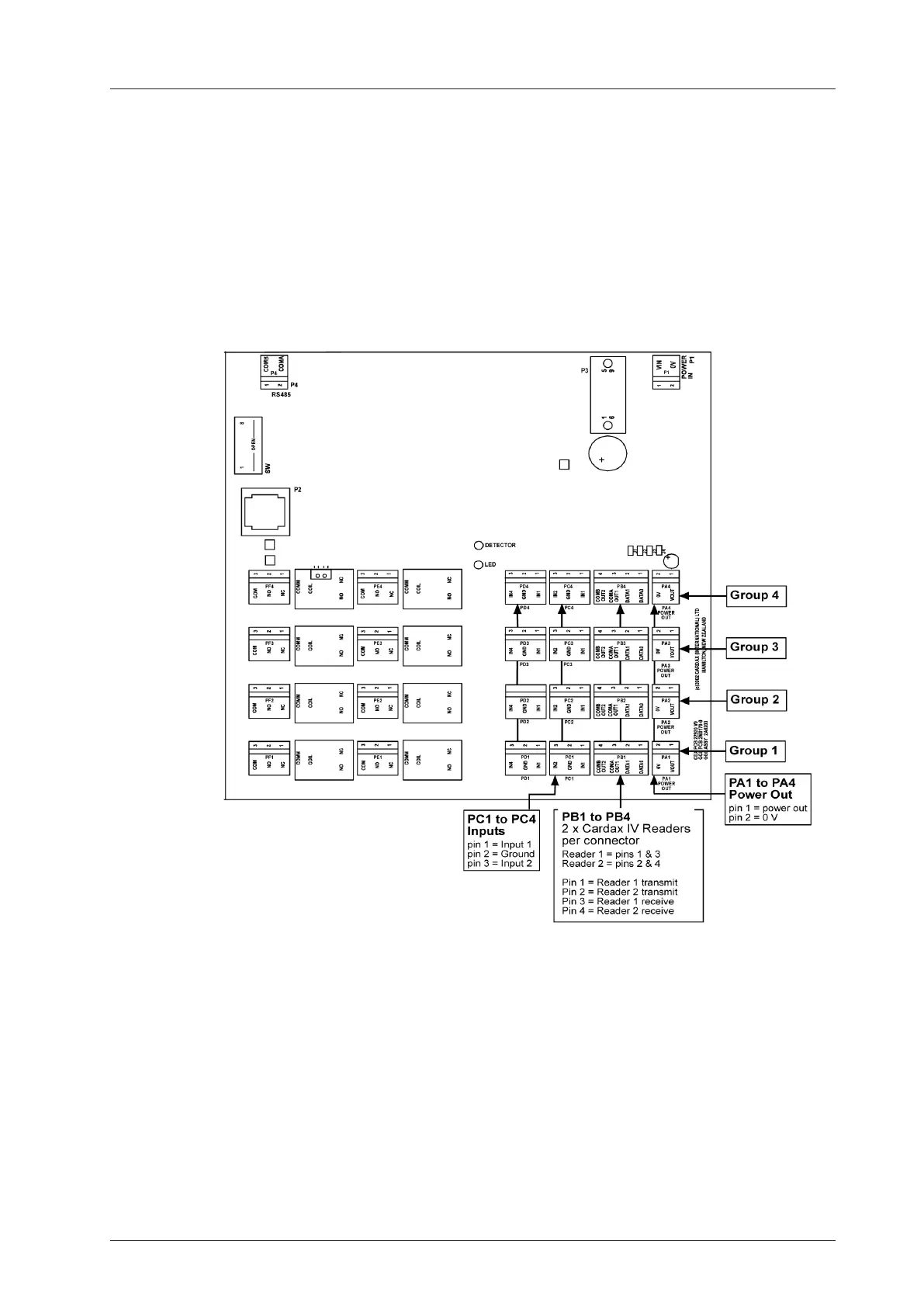

Each group provides connection for two Gallagher T11 Readers. Refer to the following
diagram for the location of the ports on the Cardax FT Controller 3000-8R.
