Gallagher T11 - Connecting to the Cardax FT Reader Module; Connecting to the Cardax FT GBUS Universal Reader Interface

6 | Part Number: 3E2513 R1
Installation Note | Gallagher T11 Reader

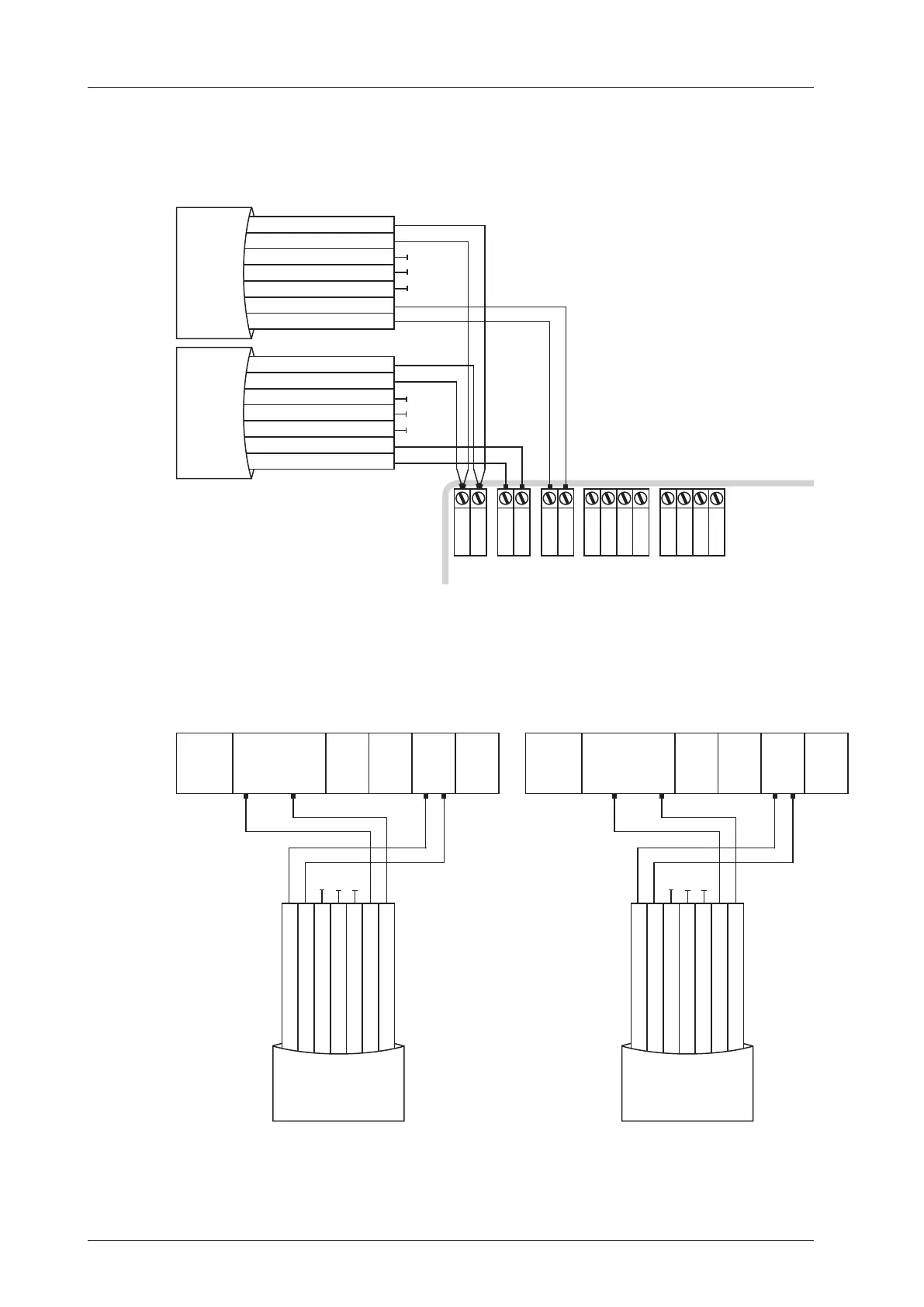

Connecting to the Cardax FT Reader Module (for the Controller 6000)
Connect the wires to the sockets as shown:
- + R1 Out R1 In C 1 2
3 C 4 5
6
R2 Out R2 In
Cardax FT Reader Module
Positive Red
Negative Black
Reserved Orange
Reserved Green
Reserved Brown
CDXIV TX White
CDXIV RX Blue
Cardax IV Reader 2
Positive Red
Negative Black
Reserved Orange
Reserved Green
Reserved Brown
CDXIV TX White
CDXIV RX Blue
Cardax IV Reader 1
Connecting to the Cardax FT GBUS Universal Reader Interface
Connect the wires to the sockets as shown in either of the following diagrams:
RLY 2 COM RLY 2 NO RLY 2 NC DATA 0 DATA 1 OUT 1 OUT 2 COM A COM B TAMPER GND VOUT GND VIN GND
Pin 15
Reader
Top Row
Pin 1
Cardax FT GBUS URI
Positive Red Negative Black Reserved Orange Reserved Green Reserved Brown CDXIV TX White CDXIV RX Blue
Cardax IV Reader
RLY 2 COM RLY 2 NO RLY 2 NC DATA 0 DATA 1 OUT 1 OUT 2 COM A COM B TAMPER GND VOUT GND VIN GND
Pin 15
Reader
Top Row
Pin 1
Cardax FT GBUS URI
Positive Red Negative Black Reserved Orange Reserved Green Reserved Brown CDXIV TX White CDXIV RX Blue
Cardax IV Reader
