Gallagher T15 Multi Tech Reader White - Mounting Dimensions

Page 13
3E4237 Gallagher T15 Reader | Edion 1 | June 2016
Copyright © Gallagher Group Limited
9 Mounngdimensions
IMPORTANT

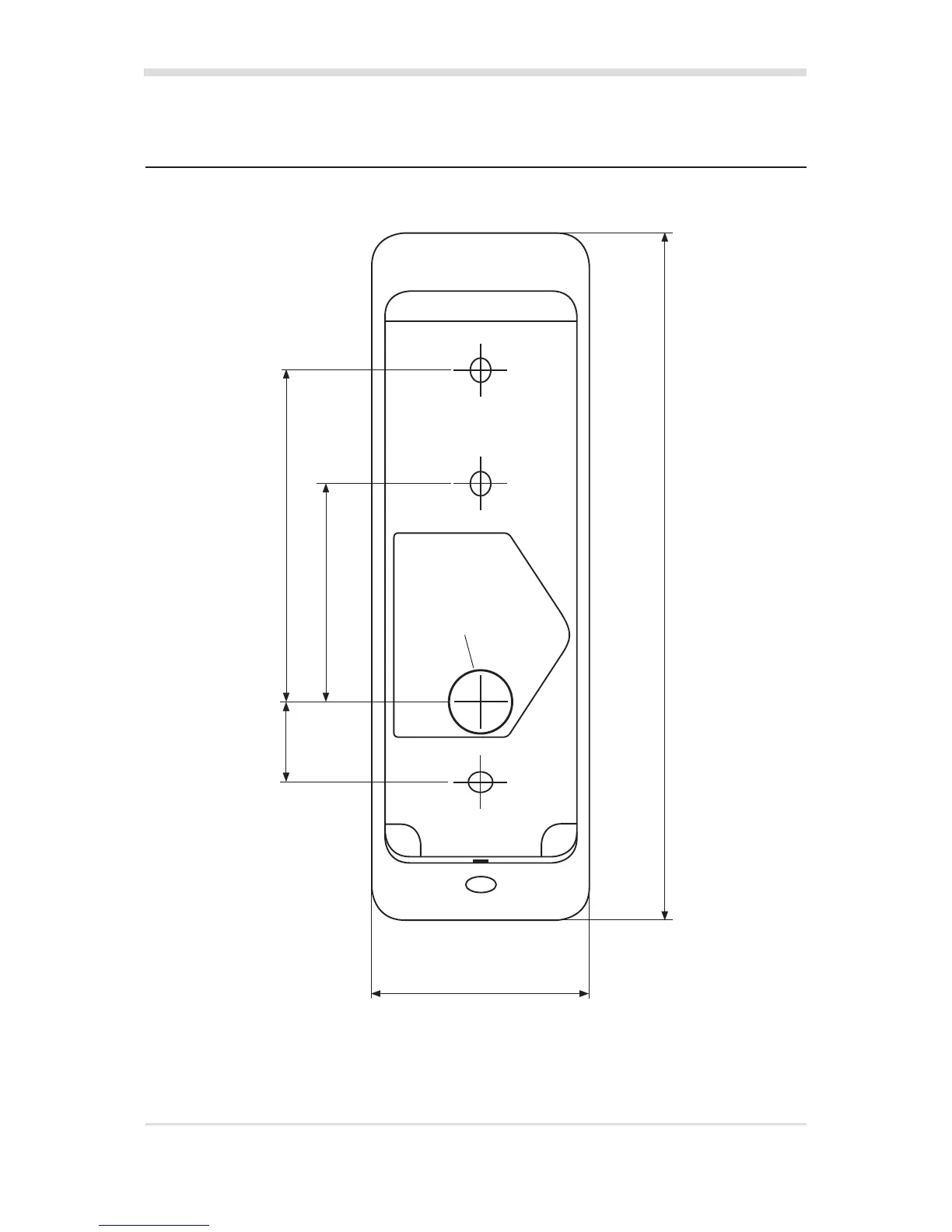

This picture is not to scale, therefore use the measurements provided.
44 mm (1.73")
139 mm (5.47")
13 mm (1/2") diameter
hole for cable
16 mm (0.63")
67 mm (2.64")
44 mm (1.73")
