Inputs status
When the control unit is in standby. User can read inputs status on display:
_ _: No input active.
5t: Stop input active.
P5: Photo stop input active.
Pc: Photocells input active.
EO: Analogic edge opening input active.
EC: Analogic edge closing input active.
5B: Start input active.
5p: Pedestrian input active.
op: Open input active.
CL: close input active.
During pause, the display show the seconds countdown to closing.

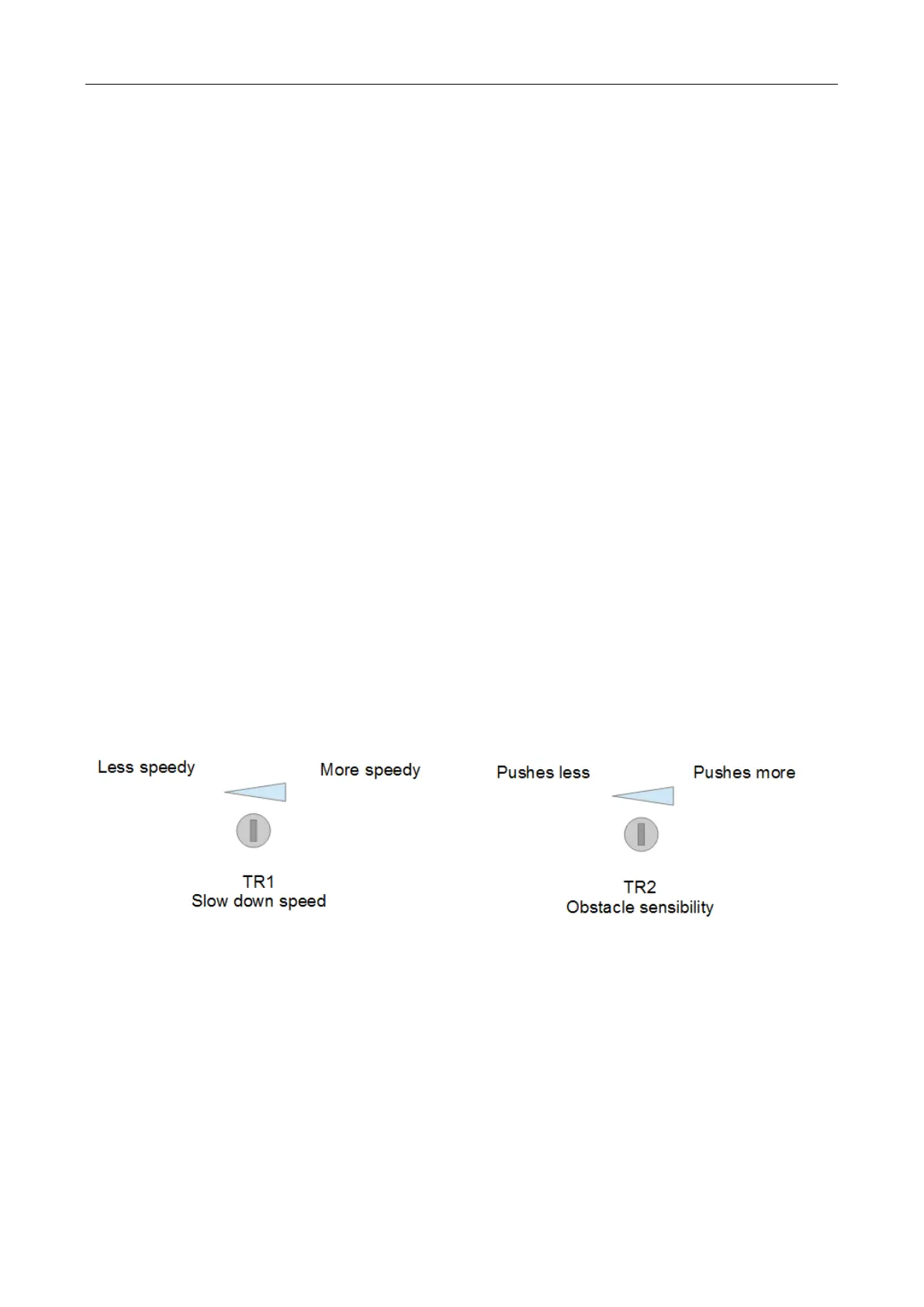

Trimmers setting
Slow down speed trimmer regulates the slowdown speed. Do not set speed to low(less than 10
cm/sec on the wing edge) to avoid that gate stops in too cold conditions.
Obstacle sensibility trimmer fine tunes the obstacle detection level learned by the control unit
during working times programming .This fine regulation must be do after working times learning.
Normally the trimmer goes in the center, in this position should be possible to respect rules in most
of installations. If it’s need to resolve problems related to norms or to environmental situations (ex.
Strong wind) is it possible to regulate this trimmer increasing or decreasing sensibility.
Figure 18
Quick installation
To program quickly the working times, open both wings, then keep pushed up till you read AU on
the display. The control unit will do several tests an than it’ll learn working times. When the
procedure is finish the blinker goes off.
Auto Learning transmitters:
It’s possible to learn transmitters quickly without using the base menu. To insert a new transmitter
transmit3 times with the new remote, making at least 1 second pause between each transmission.
