HDMI Daughter PCB Installation

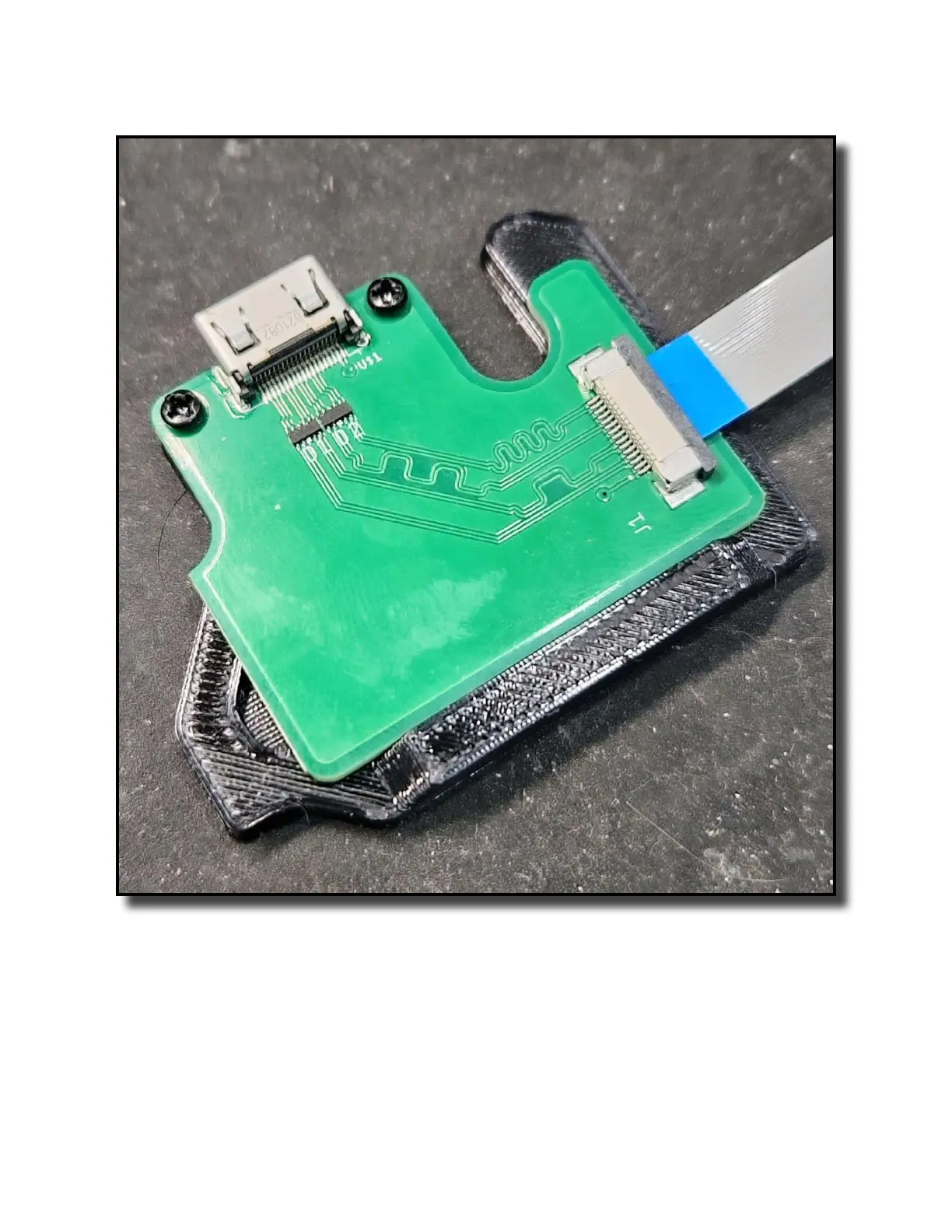

Mount the HDMI daughter PCB to included bracket using the included M2 screws. Install the daughter
PCB’s 15 pin FFC.
Page 7
STEP 4
