HDMI Daughter PCB Installation

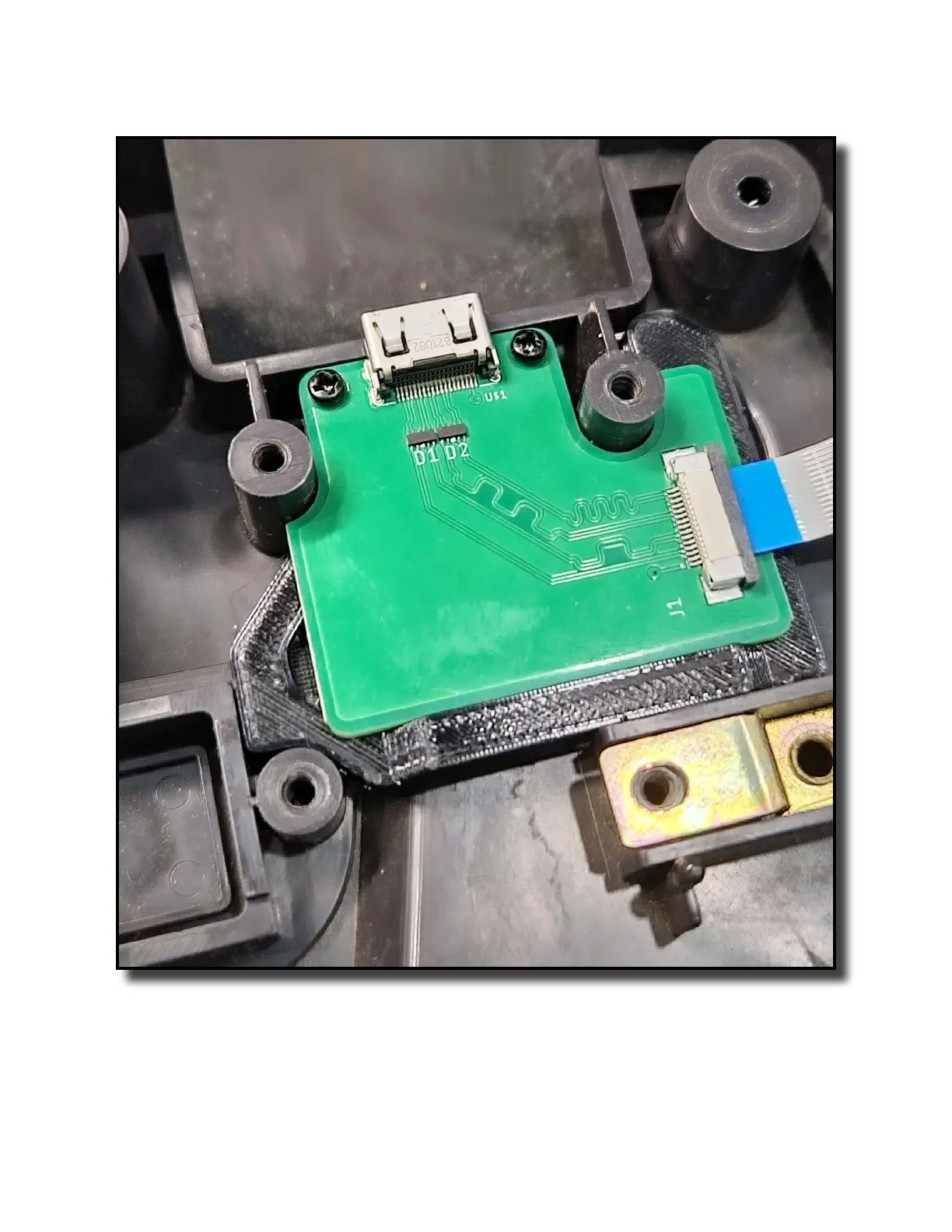

Place bracket in the bottom N64 shell(as shown above). Place bottom motherboard shielding over the
bracket.
Page 8
STEP 5
