Replace the N64 motherboard. Install the no-cut A/V shroud. Install the top motherboard shield.

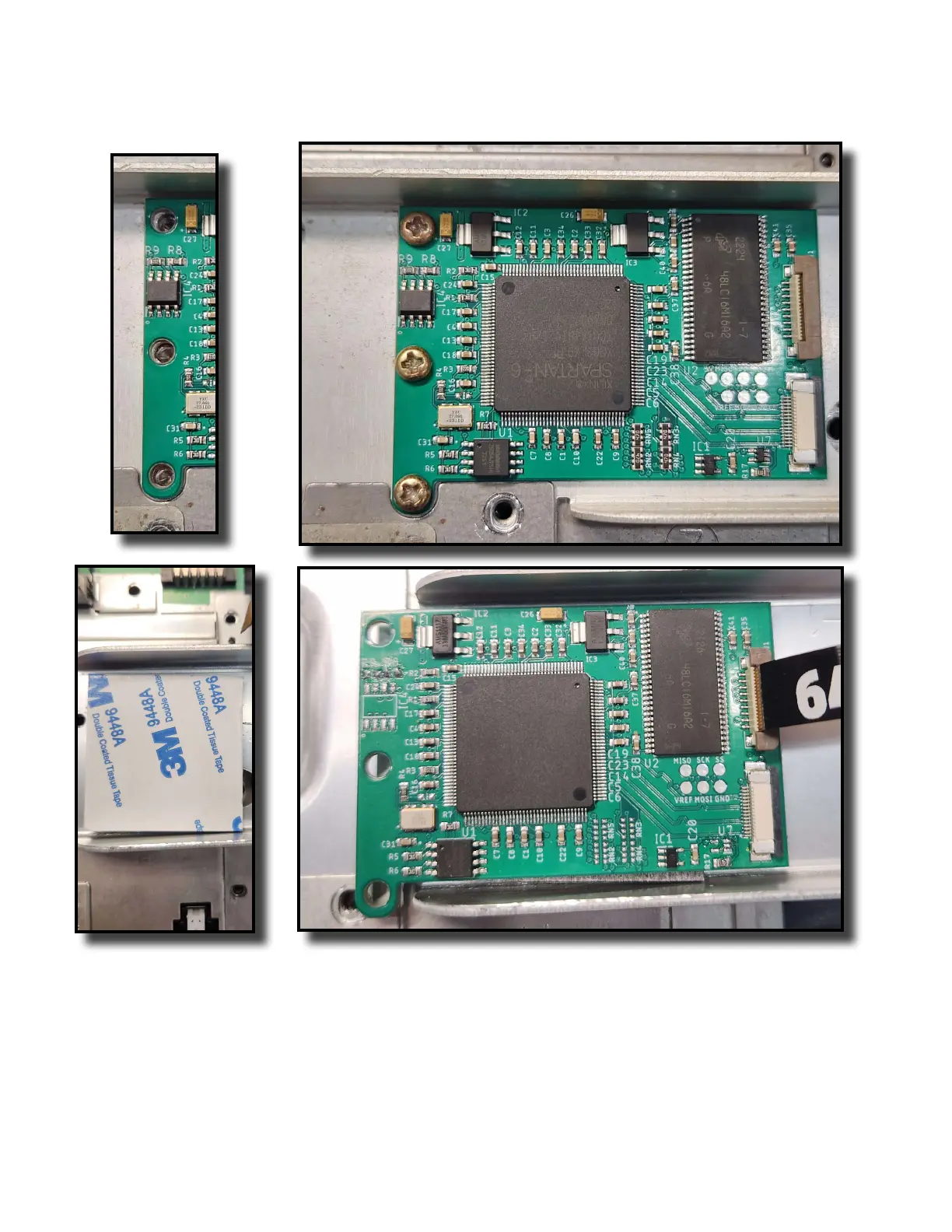

Remove the screws shown, line up the 64HD main PCB, and reattach the screws.
NOTE: If your motherboard is a later model that does not include these screw holes, use the included double
sided foam tape to secure the 64HD PCB down to the N64 heatsink.
64HD PCB Installation
Page 9
STEP 6
