GAMEMAX F46 - Page 2

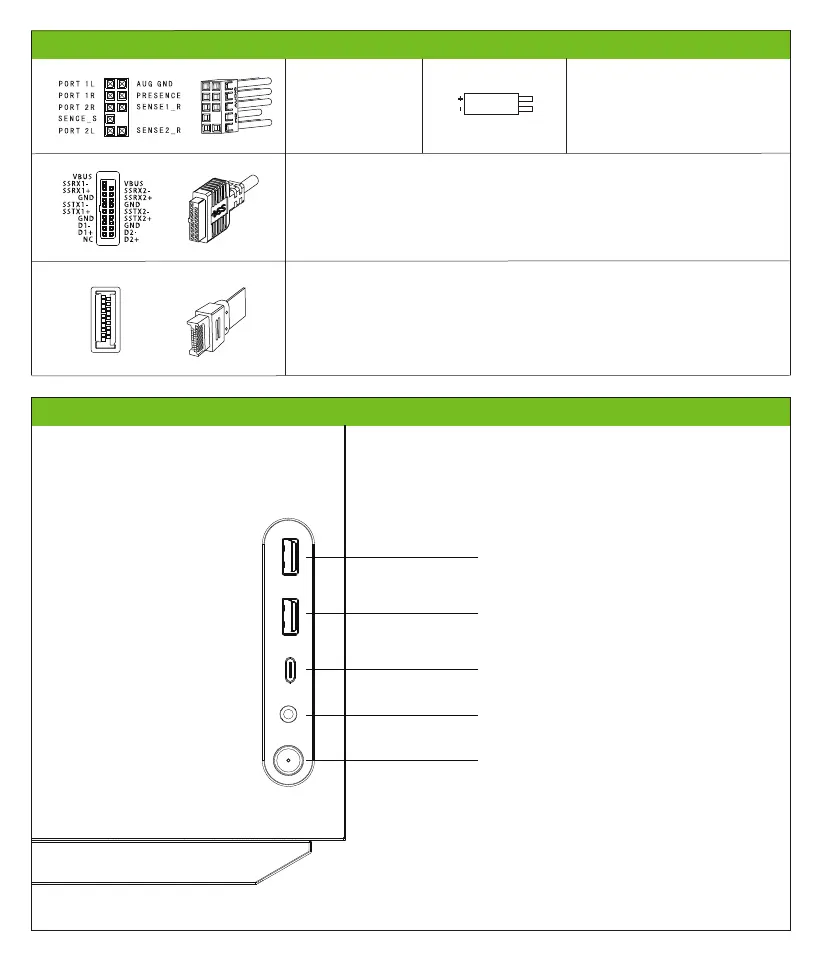

Connectors - Anschlüsse - Conectores - Разъемы - 连接器
I/O Panel - N/O Panel - Painel de N/O - Панель N/O - I/O面板
Power SW
Type-C Gen2
USB 3.0
USB 3.0
Combo Audio
USB3.0
Combo Audio POWER SW
POWER SW
Type C Gen2
A1 GND
A2 TX1+
A3 TX1-
A4 VBUS
A5 CC
A6 D+
A7 D-
A8 SBU1
A9 VBUS
A10 RX2-
A11 RX2+
A12 GND
GND B12
RX1+ B11
RX1- B10
VBUS B9
SBU2 B8
/ B7
/ B6
VCONN B5
VBUS B4
TX2- B3
TX2+ B2
GND B1
- 2 -
