Gamma 8500 Els - Assembly Instructions; Base and Post Assembly

3

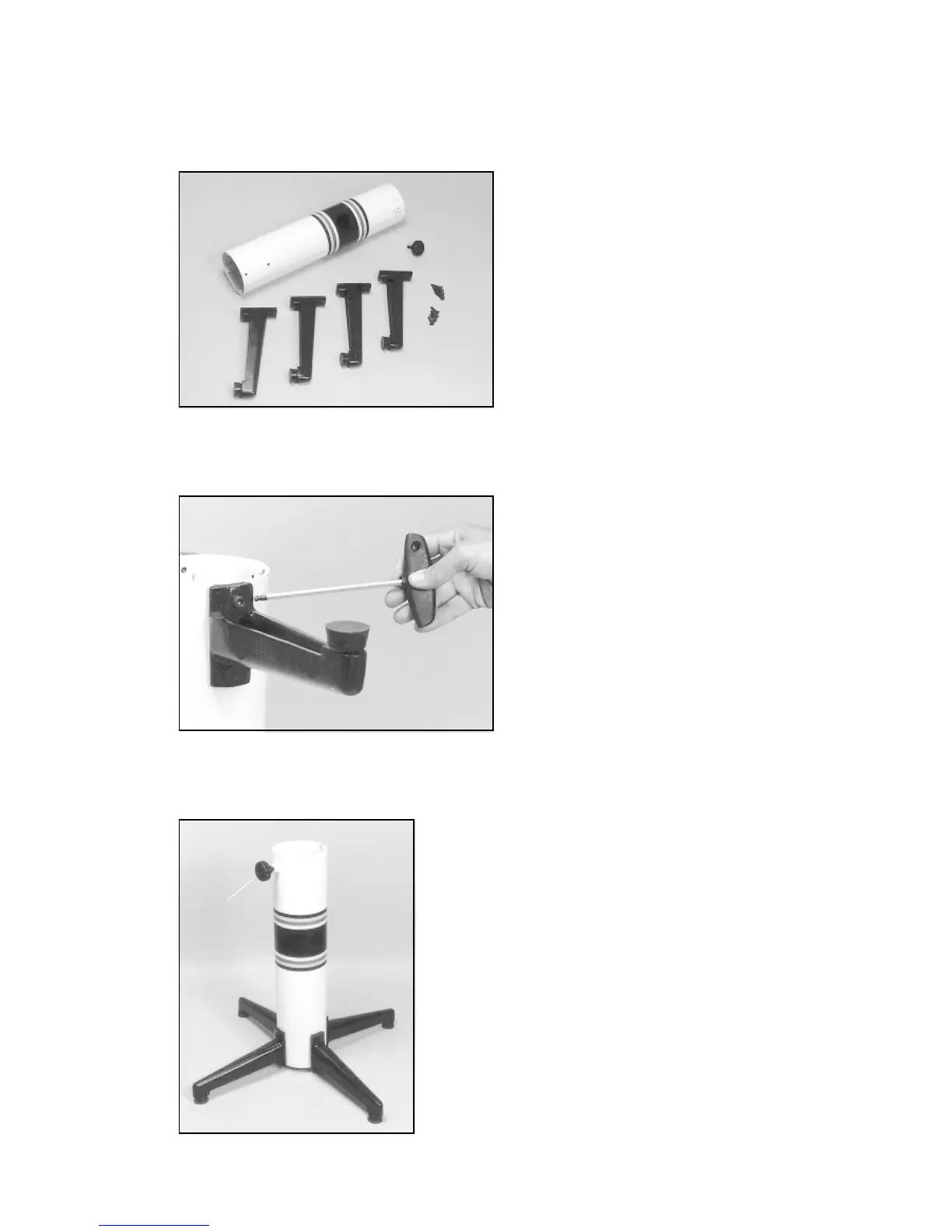

Base Leg Assembly
The stringing machine uses a four leg base design. The
legs must be assembled to the support post before use.
Remove the lower column support, the upper column
support, four (4) legs, four (4) socket head cap screws
and four (4) flat head cap screws from the small shipping
carton.
Base Leg Assembly (Cont.)
Align the holes in the leg flange with the matching holes
in the lower column support post. Secure the leg with one
FLAT HEAD cap screw through the upper hole, and one
SOCKET HEAD cap screw through the bottom hole.
Repeat this procedure for the three remaining legs.
Assembly Instructions
Base Leg Assembly (Cont.)
To complete the base stand, screw the height adjustment locking knob
(“A”) into the side of the support column. The locking knob should not
protrude beyond the inside of the support column at this time.
“A”
