4

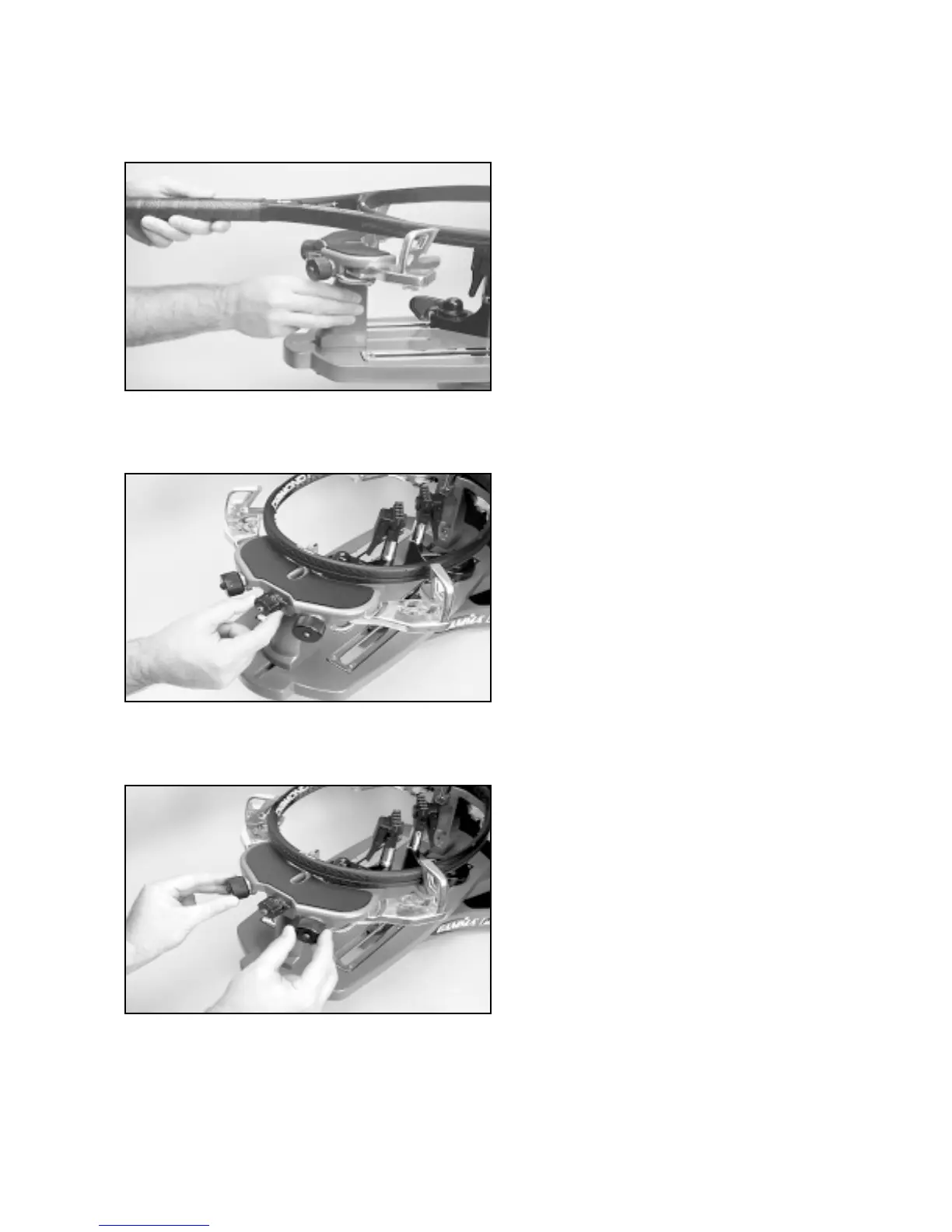

MOUNTING THE FRAME
Adjusting the Frame Support Posts
Place the racquet frame over the center posts and onto the frame
support. Loosen the lever lock bolt on one support post. Slide the
post outward until the center support of the racquet support slide
is positioned near the inside surface of the racquet frame.
Securely tighten the lever lock bolt.
Adjust the opposite post using the same procedure.
Caution: To avoid racquet damage, the center posts should not
contact the racquet prior to fixing the support posts.
Frame Shoulder Support Adjustment
Being sure the shoulder supports are free to swivel in their
mountings, simultaneously rotate the shoulder support adjust-
ment knobs clockwise until both shoulder supports gently and
squarely contact the frame.
Tightening the Center Supports
Tighten the Center Supports by turning the adjustment knob
clockwise until slight resistance is felt.
Caution: Overtightening the Center Supports may cause racquet
damage.
