1.
3.
4.
2.
5.
6.
5
Mounting Instruction

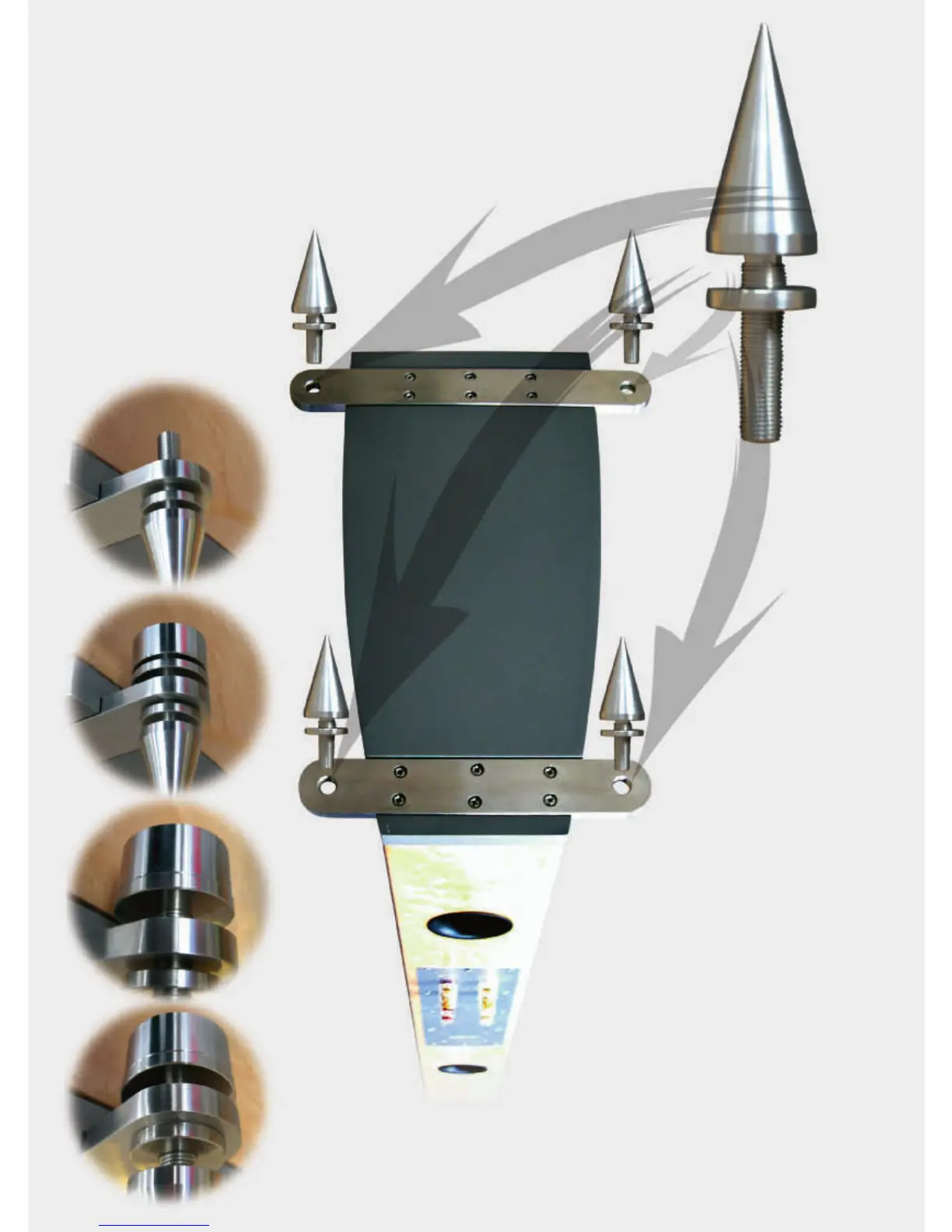

Mounting & using the spikes: (L5 & L7)
Open the bag enough to attach the
front and rear stainless steel rails as
shown in picture (1) below and
screw them tightly to the base of
the speakers with six screws for
each rail.
• Take a spike and screw on the
small adjustment ring (2)
• Screw the spike onto the rail (3)
• Add the large counter screw ring
and the adjustment knob (4).
Screw knob firmly in place and lock
with the counter screw ring (5)
• Repeat process for all four spikes
on each speaker
• Adjust the height of the spikes by
turning the adjustment knob,
so the speaker is resting on all
four spikes.
• Tighten the small diameter rings
on each spike against the rail,
so the spike’s position is locked
in place (6)
