4 · Target and user modules (DP-HR-U)

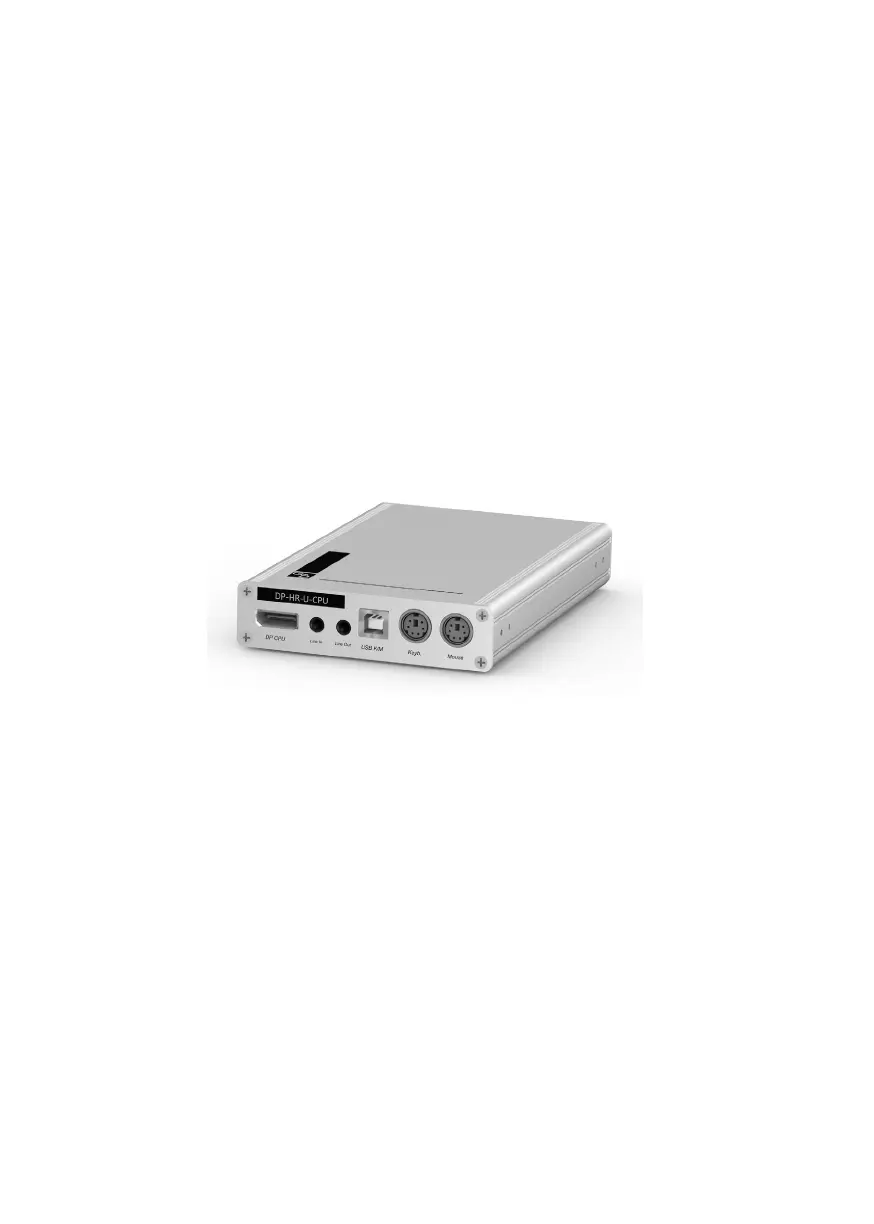

Target module »DP-HR-U-CPU«
With DP-HR-U-CPU target modules, you can connect a computer with DisplayPort
graphics output to a digital matrix switch of the ControlCenter-Compact, ControlCenter-
Digital or the DVICenter series.
Users at the consoles of the matrix switch can access the target module and operate
the connected computer.
The data stream of the USB devices connected to the active user module (DVI-U-CON,
DP-U-CON and DP-HR-U-CON series only) is transmitted to the computer with up to 16
Mbit/s.
Package contents
 1 × Target module DP-HR-U-CPU
 1 × DisplayPort video cable (DP-Cable-M/M-2)
 1 × USB device cable
 2 × Audio cable
 1 × Power pack (12V/2A, only with variants incl. PowerPack)
 1 × Power cable (only with variants incl. PowerPack)
 1 × EasyStart flyer
 1 × »Safety instructions« flyer
Required accessories
 1 × Category 5e (or better) twisted pair cable to connect the target module to
the matrix switch
A
Target modules
