Gantner GAT ACCESS 6100 User Manual

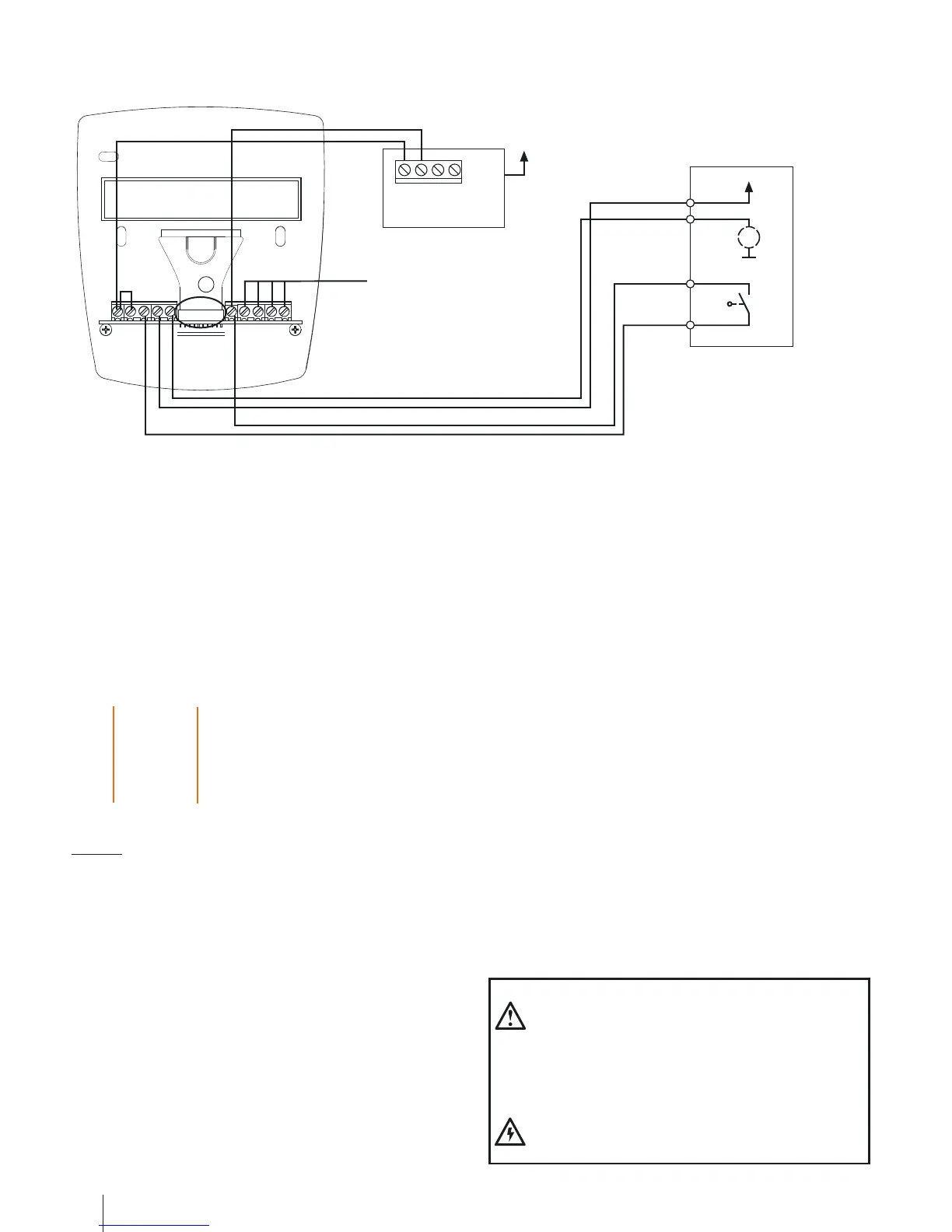

Electrical connections
TCP/IP with external power supply
4
www.gantner.com
Valid as from July 30
th
, 2013 • Technical data subject to modifications without notice!
DB_GAT-ACCESS6100--EN_11.indd • PartNo.: 860279
Network
Ethernet, Connection via screw terminals.
Power supply
DC supply (see technical data), e.g. via GANTNER GAT Power Supply
SP014/1. The power input is protected against reverse-polarity.
Recommended cables:
Ethernet: min. CAT 5 (STP) for 100 MBit
Wire colours
Ethernet 10/100 MBit
Connection to the device upper part
Attention: The socket (3) for the connection cable between the device
back part and the device upper part must be clean in order to guarantee
a good contact.
568A 568B
TX + green/white orange/white
TX - green orange
RX + orange/white green/white
RX - orange green
Relay output
For activation of devices like turnstiles etc.. The relay contact is of type
NO (maker contact). Please observe the max. permitted switching voltages
and currents (see technical data).
Depending on the connected instalation (e.g. turnstile) an additional free-
wheeling diode may be necessary, which is used to limit the switch-on
current. Please read the documentation of the connected installation.
Optocoupler input
Input for status acquisition. For using the input a supply voltage must be
applied. This voltage can be taken from the terminal‘s supply or from an
external power source. Please observe the max. permitted input voltages
and currents (see technical data).
GAT Access 6100
RX +
TX -
TX +
GND
NO 1
C 1
IN1 -
IN1 +
RX -
VIN +
TCP/IP
Power supply unit
e.g. GAT Power Supply SP014/1
VOut+
GND
A B
Mains power
Motor control
Feedback control
M
e.g. Turnstile
1
Safety instructions
- This device must be installed by qualified personnel only.
- The applicable safety and accident prevention regulations
must be observed.
- Safety devices must not be removed.
- Please observe the technical data of the device specified
on the data sheet.
- The device must be disconnected from the power supply
prior to installation, assembly or dismantling.
