GAPOSA QC100 - Page 8

OPTOELECTRONIC BAR
AND/OR PHOTOCELL

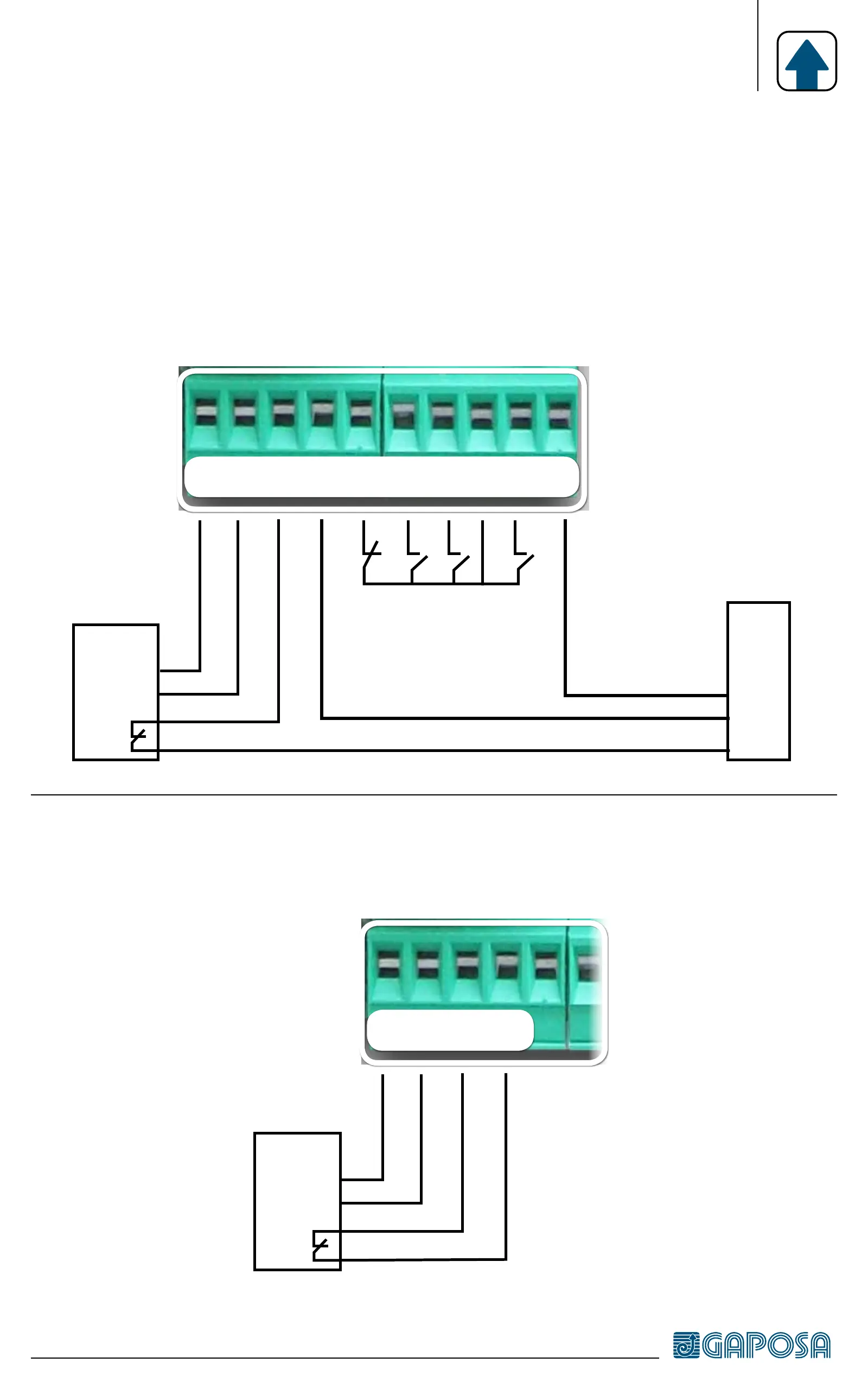

To connect the optoelectronic bar QCSE and the photocell, the latter
must be connected in series to the digital signal of the bar as shown
(DIP 4 in ON).
12 711 610 59 48 3
STOP
Photocell
(contact NC)
optoelectronic
bar
START/STOP
24V~
DOWN COMMON UP
SIGNAL - Green
+12Vcc - Brown
GRD - White
To connect the the photocell, the latter must be connected as
shown (DIP 4 in OFF).
12 11 10 9
Photocell
(contact NC)
24V~
