GarageAce ET30 - Setting and Operating Procedures

9

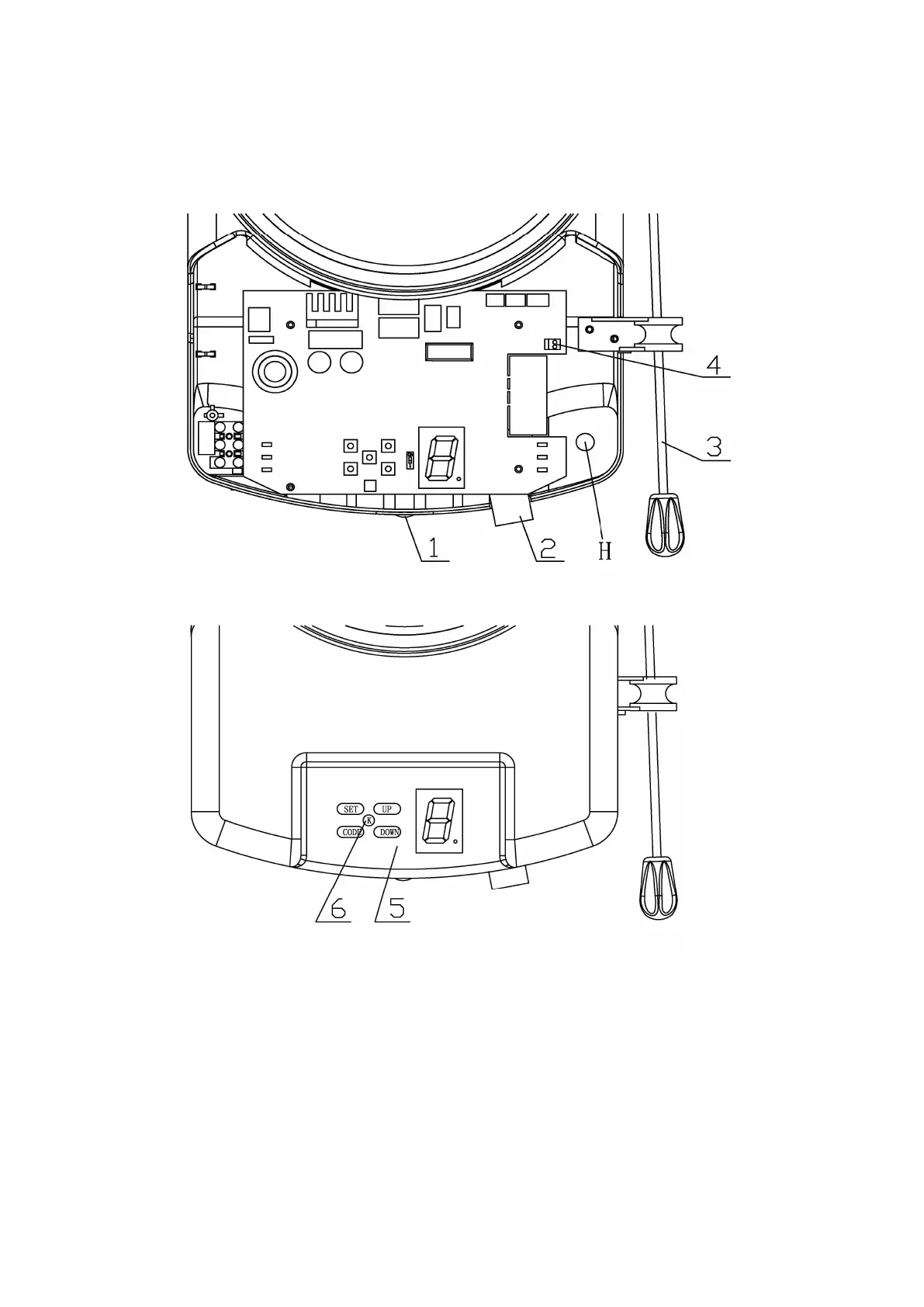

4. Setting and operating
2. PB/GND/PE/+24V terminal
4. Battery backup terminal
6. K button( same function as O/S/C button)
1. O/S/C button
3. Manual release lever
5. Programming panel
H. Hole for battery backup
connection
