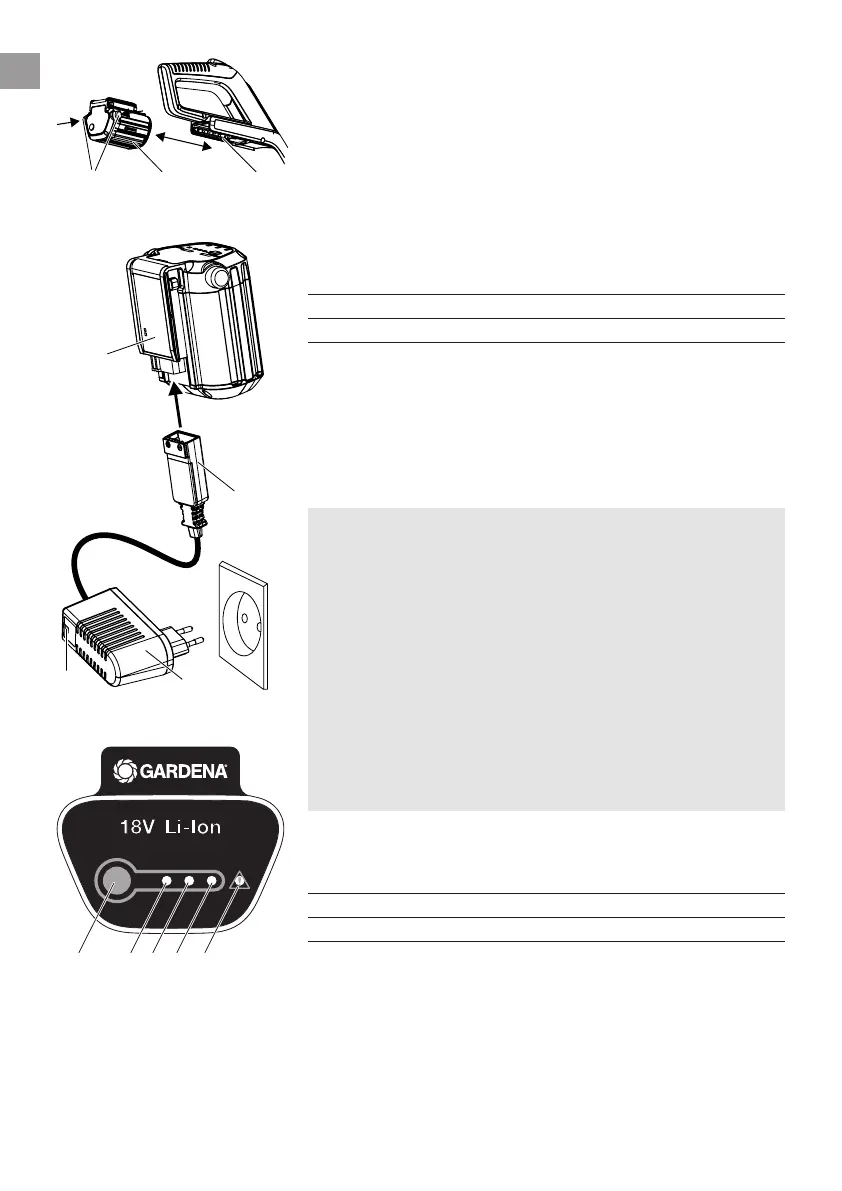

1. Depress both locking buttons
4
and remove the battery
5
from
the battery holder
6
on the handle.
2. Plug the plug of the charger cable
7
into the battery
5
.
3. Plug battery charger
8
into a mains socket.
When the charging control lamp
9
at the charger flashes
green the battery is being charged.
When the charging control lamp
9
at the charger illuminates
green the battery is completely charged
(For charging time, see 9. Technical Data.)
Battery charging status indicator during charging:
100 % charged
«
,
∑
and
€
illuminate (for 60 sec.)
66 – 99 % charged
«
and
∑
illuminate,
€
flashes
33 – 65 % charged
«
illuminates,
∑
flashes
0 – 32 % charged
«
flashes
Check the charge status regularly while charging.
4. Once completely charged, disconnect the battery
5
from the
battery charger
8
. Disconnect the battery
5
from the battery
charger
8
first, then unplug the battery charger
8
.
5. Slide the battery
5
onto the battery holder
6
on the handle until
it audibly engages.
Avoid exhaustive discharge:
If the battery is empty, the full discharge protection automatically
switches off the device to prevent the battery from discharging
fully. To prevent the fully charged battery from self-discharging
via the unplugged charger, it should be disconnected from the
charger after charging. If the battery was stored for more than
1 year, it must be fully recharged.
If the battery was fully discharged, the charging indicator lamp
9
will flash rapidly at the start of charging (twice per second).
If the charging indicator lamp
9
still flashes rapidly after
10 minutes, a fault has occurred (see 7. Troubleshooting).
If the error-LED
ß
W
on the battery flashes, a fault has occurred
(see 7. Troubleshooting). In case of a completely empty battery
it will take approx. 20 minutes until the LEDs on the battery
will indicate charging. But the charging process is indicated by
the flashing LED
9
on the charger.
Battery charging status indicator during operation:
v Press button
ß
B
on the battery.
66 – 99 % charged
«
,
∑
and
€
illuminate
33 – 65 % charged
«
and
∑
illuminate
10 – 32 % charged
«
illuminates
0 – 10 % charged
«
flashes
18
EN
