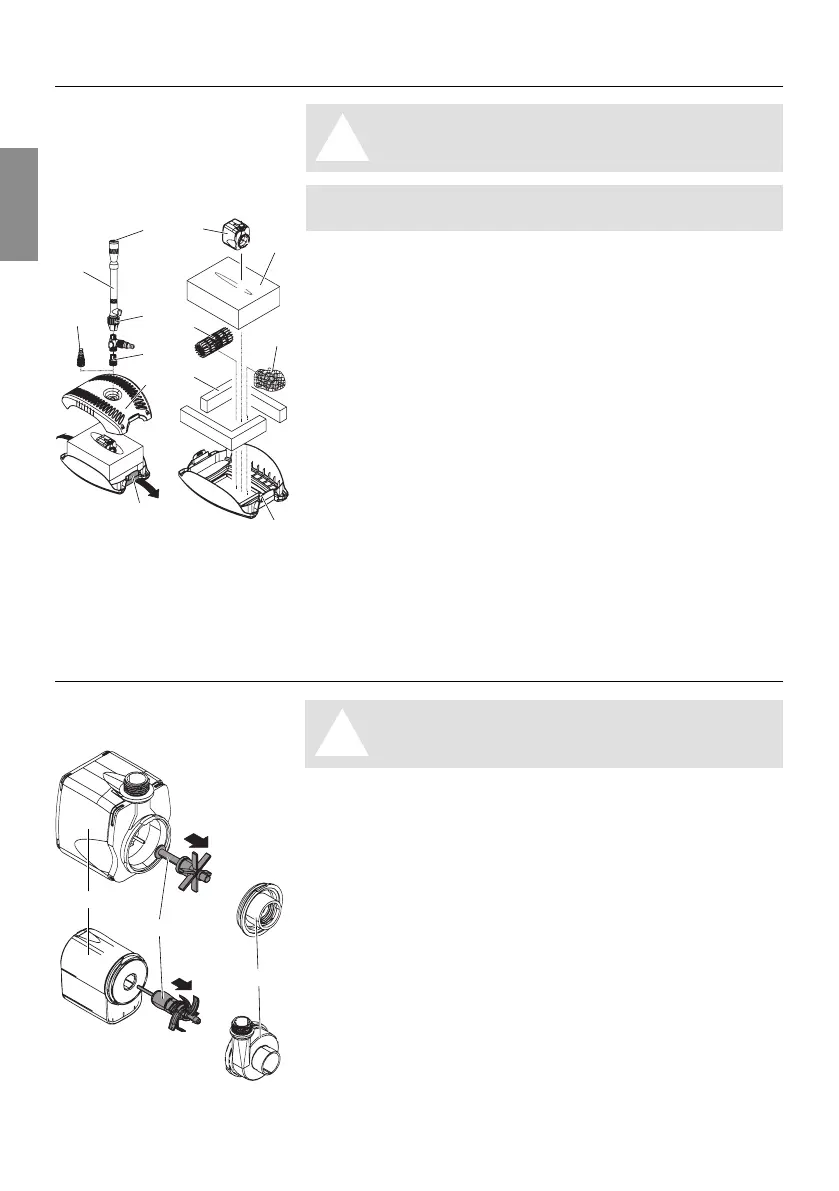

Cleaning the Pump:
5. Maintenance
DANGER ! Electric shock!
A
V Disconnect the mains plug of the pump before
carrying out maintenance work!
Do not use any hard objects or powerful detergents for cleaning
the set!
1. Take the Underwater Filter out of the water and unscrew the
nozzle tube
1
/ stepped nipple
6
.
2. Release the catches
B
and take out the filter housing
9
.
3. Remove the pump
C
from the filter block
D
.
4. Remove filter gravel
E
and biological surface filter
F
and both
the filter surrounds
G
.
5. Wash out the filter housing
9
, filter block
D
, gravel
E
and
filter surrounds
G
under running water.
6. Place the biological surface filter
F
in clean water (do not wash
it under running water).
7. Reassemble the Underwater Filter in the reverse order. Be sure
to route the cable in its guides
H
.
1. Unscrew fountain insert
4
from the nozzle tube
3
.
2. Wash out the nozzle tube
3
and fountain insert
4
in clean
water.
6. Troubleshooting
DANGER ! Electric shock!
A
V Disconnect the mains plug of the pump before
carrying out maintenance work!
1. Remove the pump from the filter block (see 5. Maintenance).
2. Turn the pump housing
I
anticlockwise and pull it vertically
off the motor housing
J
(Bayonet fastening).
3. Pull the impeller
K
out of the motor housing
J
and clean it.
4. Push the cleaned impeller
K
back into the motor housing
J
.
5. Press the pump housing
I
vertically on to the motor housing
J
and turn it clockwise. (Bayonet fastening).
6. Reassemble the pump into the filter block (see
5. Maintenance).
Cleaning the Filter:
Cleaning water feature
and nozzle tube:
J
K
I
D
E
C
G
F
3
6
1
9
2
4
H
B
FFP 5000
FFP 3000
