Gardena Smart Irrigation Control User Manual

To connect the pump:
Master Channel:
The master channel M is activated as soon as a valve is activated.
For example, you can activate a garden pump via the master channel so that
the pump supplies the irrigation system whenever a valve is activated.
For example, the pump can be operated using the GARDENA
Pump Control Art. 1273 that is connected to the master channel.
&
123456CCCC
TOP
RESET 5s
123456CCCC
24 VAC
VALVES
S/N: 00000000
MASTER
123456CCM
24 VAC
POWER
SUPPLY
PUMP
CONTROL

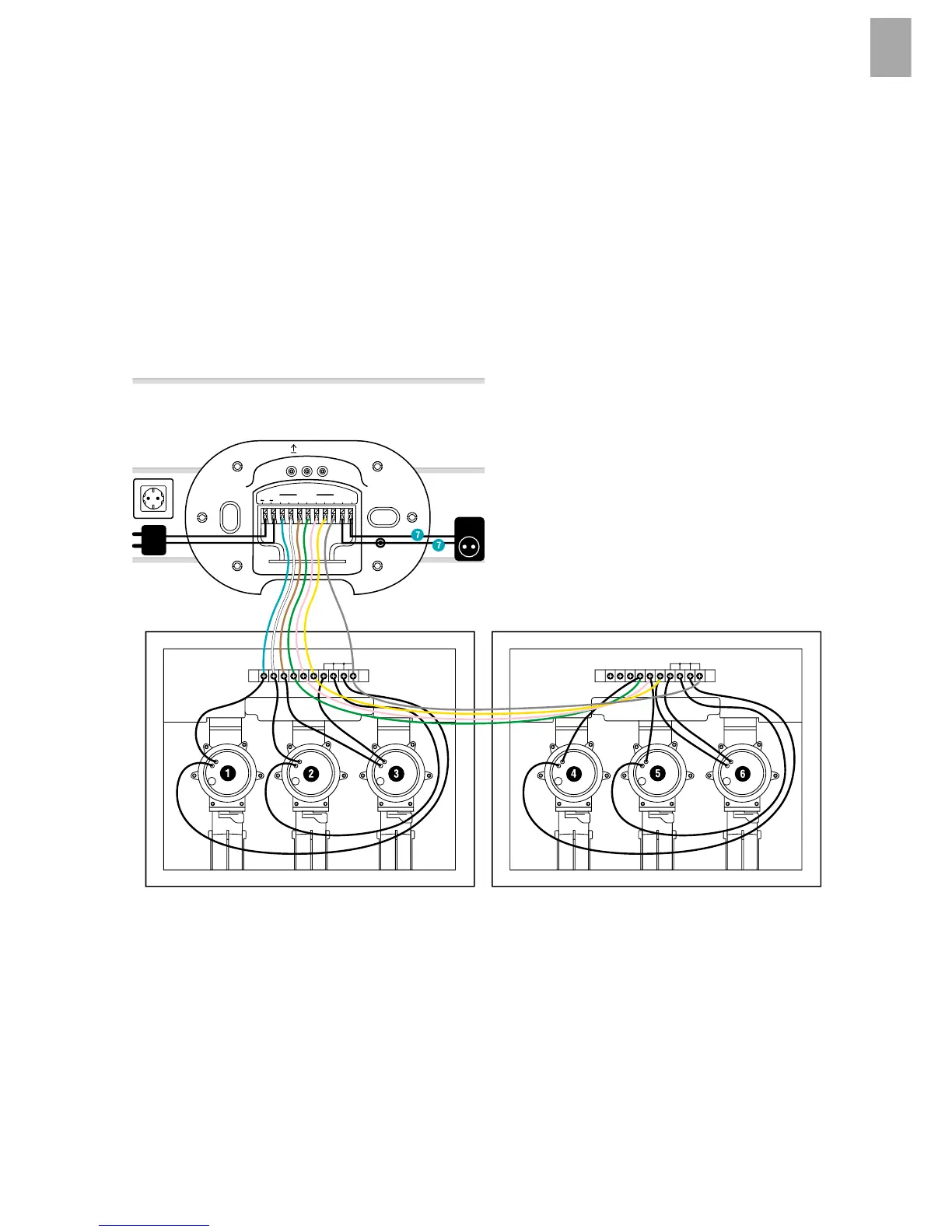

v Connect both cables to the signal cable terminals M and C of the Irrigation
Control (polarity does not have to be considered).
15
EN

Gardena Smart Irrigation Control Specifications

General

Compatible with	Gardena Smart System
Zones	Up to 6
Watering Cycles per Day	Up to 6 per zone
Frost Alert	Yes
Waterproof Rating	IPX4
App Control	Yes
Watering Duration	1 min to 10 hours
Smart Home Compatibility	Amazon Alexa
Operating Temperature	50°C
