tools and equipment to prevent injury.
5. When replacing blade or any other parts or when replacing the oil or any
lubricants, always be sure to use only products which have been certified by
for use with the brush cutter.
5. SET UP
■ ENGINE AND MAIN SHAFT

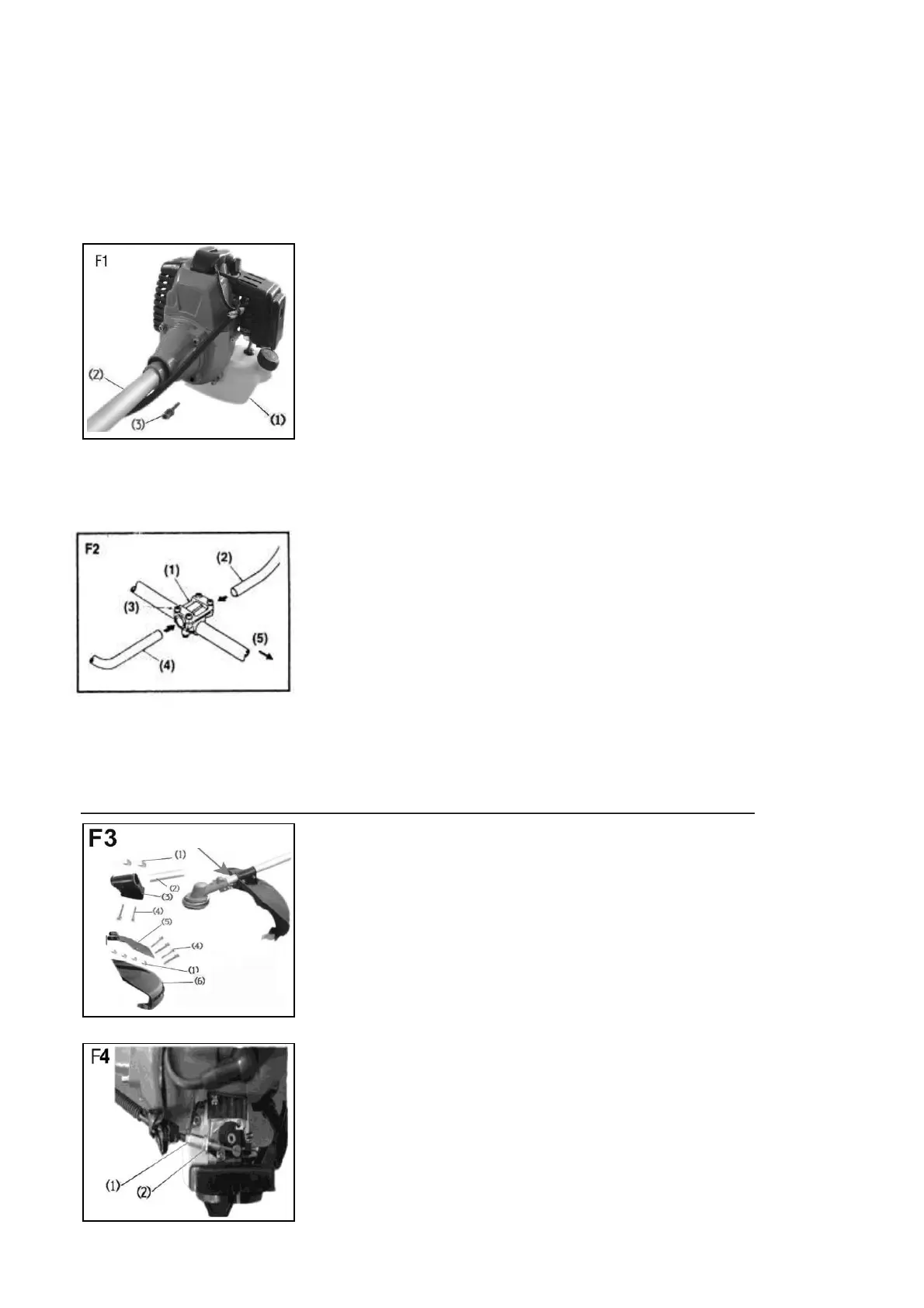

Align the main shaft and the fuel tank, using
attached 4 socket screws. Secure the connection
firmly with equal force. (F1)
(1) Fuel tank
(2) Main shaft
(3) Bolt
■ HANDLE
1. Loosen the 4 bolts on the handle bracket.(F2)
2. Insert the right handle (throttle lever is
attached) and the left handle
assembly into the bracket and retighten the
bolts securely.(F2)
(1) Handle bracket.
(2) Right handle
(3) Bolt
(4) Left handle
(5) Engine side
■ SAFETY GUARD
Attach the safety guard to the gear case and fix it
with the clamp and 6 bolts (M5*25) securely. (F3)
(1) Nut
(2) Shaft
(3) Clamp
(4) Bolt
(5) Junction panel
(6) Safety guard
■ ADJUSTING THE THROTTLE CABLE
1. After releasing the throttle lever. Pull the throttle
wire. The normal play is 1 or 2 mm when
measured at the carburetor side end.
2. If the play is short or long. Take off the air
cleaner cover, loosen the lock nut and adjust
the play.(F4)
(1) Adjust nut
