NOTE: Before using the brushcutter / grass
trimmer, read the instruction book carefully and
make sure you FULLY understand them.
INTENDED USE
This product is intended for cutting grass and small
bushes.
ASSEMBLY

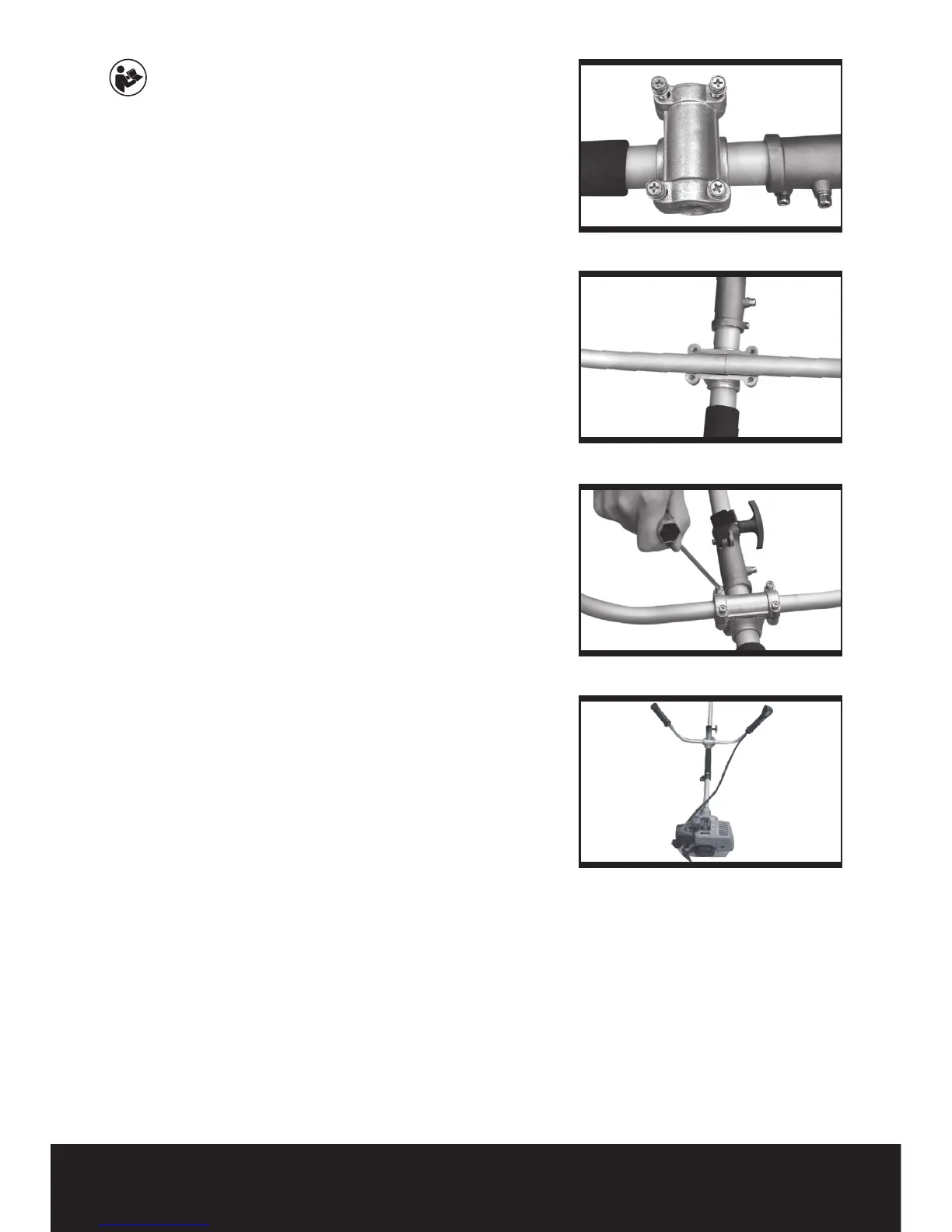

ASSEMBLING THE U-HANDLE
1. Loosen the 4 bolts on the upper clamp (See Fig A1).
2. Position U-handle on the lower clamp as shown, make
sure the handle switch is on the right (See Fig A2&A4).
3. Fit the upper clamp, lightly tighten the 4 bolts and
clamp screws with the socket spanner (See Fig A3).
4. Hold the U-handle in position and adjust the handle to
the desired position. Tighten the 4 bolts until the handle
cannot move or rotate.
a
b
a
b
a
i
j
k
m
n
Clip
Staring posture
0.6-0.7mm
Press the
line notches
washer
eyelet
n
Fig.A1
Fig.A2
Fig.A3
Fig.A4
