10

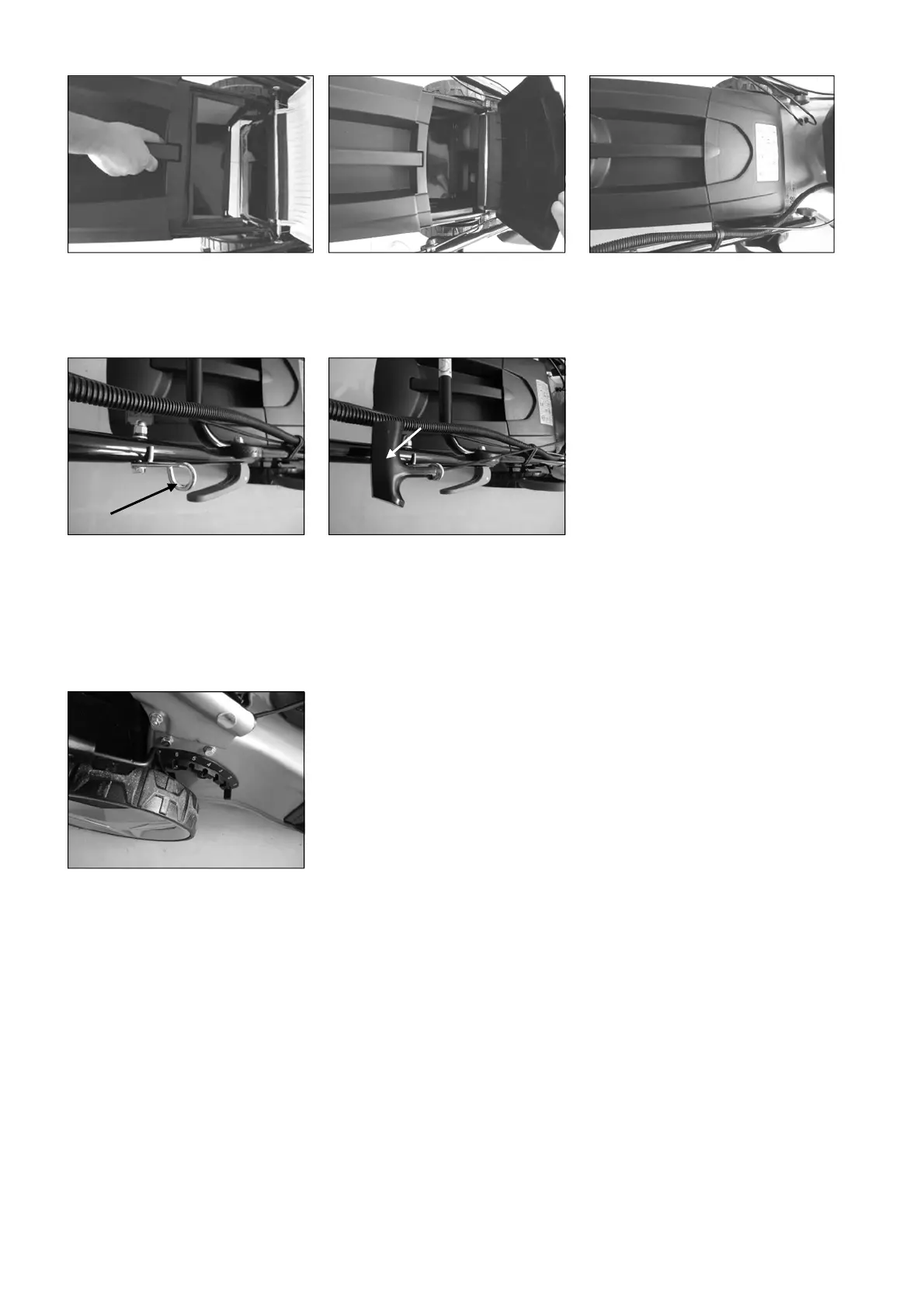

Figure 15 Figure 16 Figure 17
5.4 STARTER HANDLE
Gently pull out the starter handle from the engine to the rope guide (fig. 18 & 19).
Figure 18 Figure 19
5.5 HEIGHT OF CUT
5.5.1 for all models
Apply outward pressure to disengage the lever from the right rear wheel rack. Move the lever forward or
backwards to adjust the cutting height. The setting applies to all 4 wheels with one lever (fig. 20).
Figure 20
5.5.2 for GBD-51R (DYM162601)
For this model, the central height adjustment only applies to the rear wheels. The front wheel is also
equipped with a height adjusting system (25 mm to 75 mm). Lift the mower up on front. Unscrew the height
adjustment knob #26. Insert the axle into the appropriate hole in the bracket for your desired height. Tighten
the knob.
rope guide
starter handle
